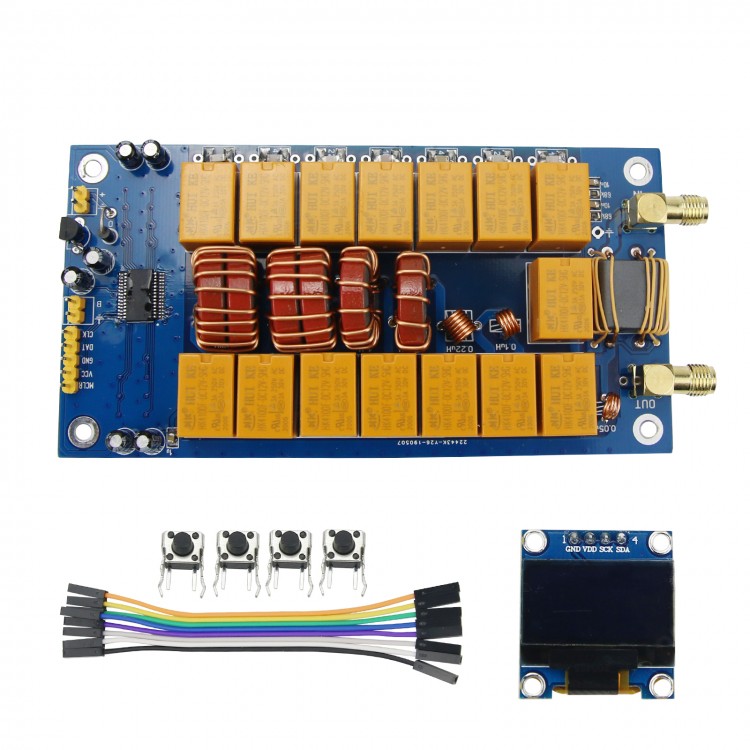

1.8-50MHz Automatic Antenna Tuner 100W w/ 0.96-Inch OLED Display ATU100 Board Finished without Shell
Features:
- 0.96-inch OLED display
- Frequency 1.8-50 MHz
- Power supply voltage range: 10-15 V DC
- Maximum current consumption: 300 mA
- Maximum working power: 100W
- Maximum possible measured power: 150W
- 1W: It is necessary to start setting the minimum power
- Minimum possible measured power: 0.1W
- Step for measurement on powers under 10W: 0.1W
- Step for measurement on powers above 10W: 1W
- Power measurement accuracy: 10%
- Specified maximum inductor: 8.4 uH capacity
- The minimum installation step of inductor: 0.05μH
- Maximum installation capacity: 1870 pF capacitor
- Minimum installation step: 10 pF
Package Included:
- 1 x Set of Automatic Antenna Tuner
Note:
- It is fully welded, and ready to use. Just need to solder antenna port and connect OLED.
- Firmware has been flashed for the 0.96-inch OLED.
