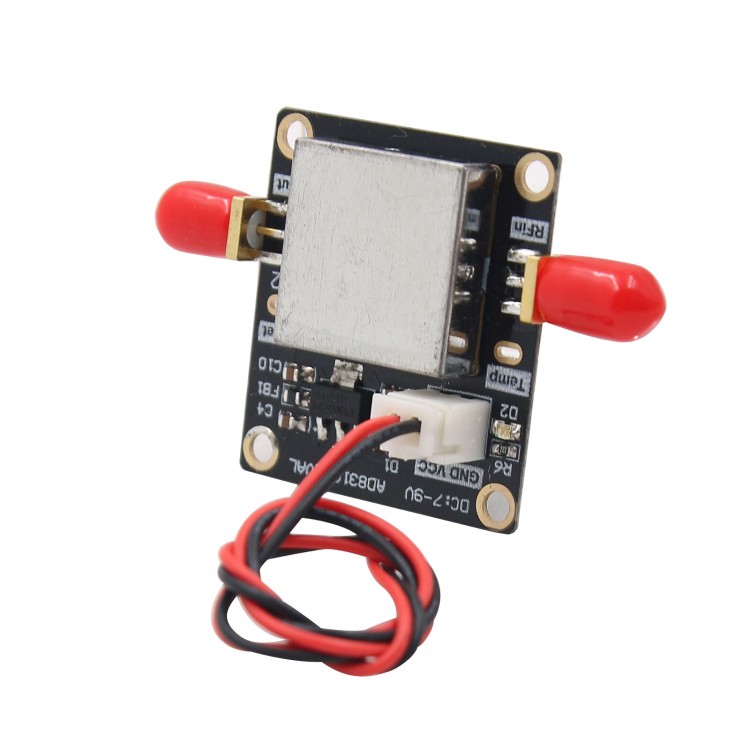

1-8GHz AD8318 Module RF Power Meter Logarithmic Detector 70dB Dynamic ALC AGC Control

Availability: In stock, usually dispatched in 1 business day

  • Price:$31.00
  • Price in reward points: 310 Reward Points: 3
  • Quantity 3+ units 10+ units 30+ units 50+ units More
    Price /Unit $30.38 $29.76 $28.83 $27.59 Contact US
Quantity:

1-8GHz AD8318 Module RF Power Meter Logarithmic Detector 70dB Dynamic ALC AGC Control

Specifications:

- Input Impedance: 50 Ohms
- Output Impedance: 50 Ohms (video impedance)
- Working Frequency: 1MHz to 8GHz
- Output Voltage: 2.1 to 0.5V (corresponding to -65 to 0 dBm)
- Input-output Ratio: ~ -25mV / dBm
- Input Dynamic Range: -65 to 0 dBm (high linear dynamic range: -60 to -5 dBm)
- Power Supply Voltage: + 7 ~ 9V. DC comes with 5V regulator
- Working Current: 75mA

Package Included:
- 1 x AD8318 Module

Note:
- Provide schematic PDF
- Official layout reserves temperature and slope control interface
