Description:
- There are four bands of low-pass filter inside. 40 meters, 20 meters, 15
meters, 10 meters band. 80M meters band for straight through.
- Suitable for FT817, IC703 and other professional HAM and a variety of DIY low-power QRP equipment to enhance the power!
- Note: This amplifier without standing wave protection circuit! Please adjust the antenna standing wave. SWR is less than 2!
Specifications:

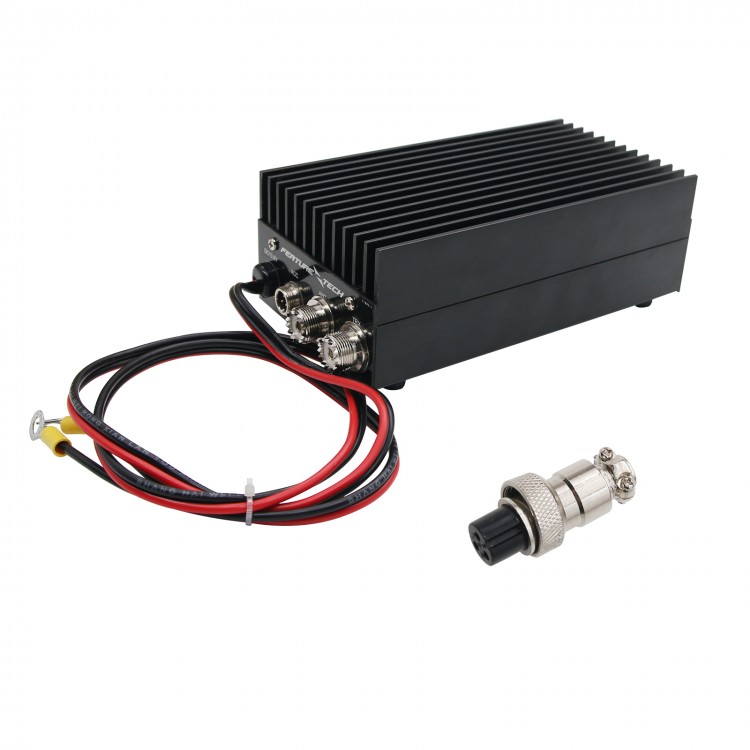

- Short wave linear amplifier
- Working voltage 13.8V
- Frequency range: 1.5MHz-30MHz
- Signal type: SSB / CW, AM. FM
- Input power: 5W-10W (PEP)
- Output power: not less than 40W (PEP)
- Output SWR requires less than 2 when working safely
Package list:
- 1pc Assembled EA50 1.8M-54MHz 30-50W Short Wave Linear Power Amplifier for FT817
