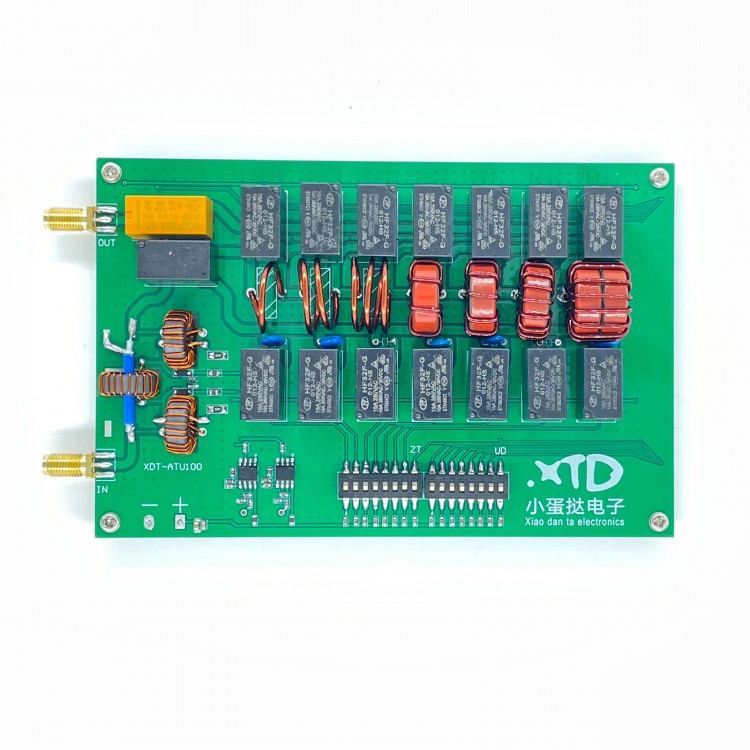

1.8MHz-50MHz 200W Manual Antenna Tuner HF Shortwave Antenna Tuner Assembled XDT-ATU N1 (XDT-ATU100)

Functions:
* Antenna impedance matching function
* Pass-through mode and tuning mode switching
* Switch between rising impedance and falling impedance mode
* Forward and reverse power detection
* Manual capacitance and inductance adjustment

Switches & Interfaces:
* Input interface: connect with a radio
* Output interface: connect with an antenna
* Power supply interface: connect with the power supply
* Forward voltage output port: connect with voltmeter
* Reverse voltage output port: connect with voltmeter
* Turn switch upwards to connect to a capacitor
* DIP switch 1: to capacitor 10pF
* DIP switch 2: to capacitor 22pF
* DIP switch 3: to capacitor 47pF
* DIP switch 4: to capacitor 100pF
* DIP switch 5: to capacitor 220pF
* DIP switch 6: to capacitor 470pF
* DIP switch 7: to capacitor 820pF
* DIP switch 8: choose pass-through and tuning mode selection (turn the switch upwards for tuning mode; downwards for pass-through mode)
* Turn switch downwards to access an inductor
* DIP switch 9: to 50nH inductor
* DIP switch 10: to 100nH inductor
* DIP switch 11: to 200nH inductor
* DIP switch 12: to 400nH inductor
* DIP switch 13: to 800nH inductor
* DIP switch 14: to 1600nH inductor
* DIP switch 15: to 3200nH inductor
* DIP switch 16: selection of raising and lowering resistance modes (move the switch upwards to increase; downwards to decrease)

Specifications:
* Frequency range: 1.8MHz-50MHz
* Working voltage: 12V
* Working current: 0.5A
* Maximum withstand power: 200W
* The minimum measured power of the instrument: 1W
* The maximum measured power of the instrument: 200W
* Instrument measurement accuracy: 5%
* Meter measurement linearity: 8%
* Minimum step of capacitance: 10pF
* Inductance minimum step: 50nH
* Maximum matching capacitance: 1609pF
* Maximum matching inductance: 6.35uH

Package Included:
* 1 x Antenna Tuner
