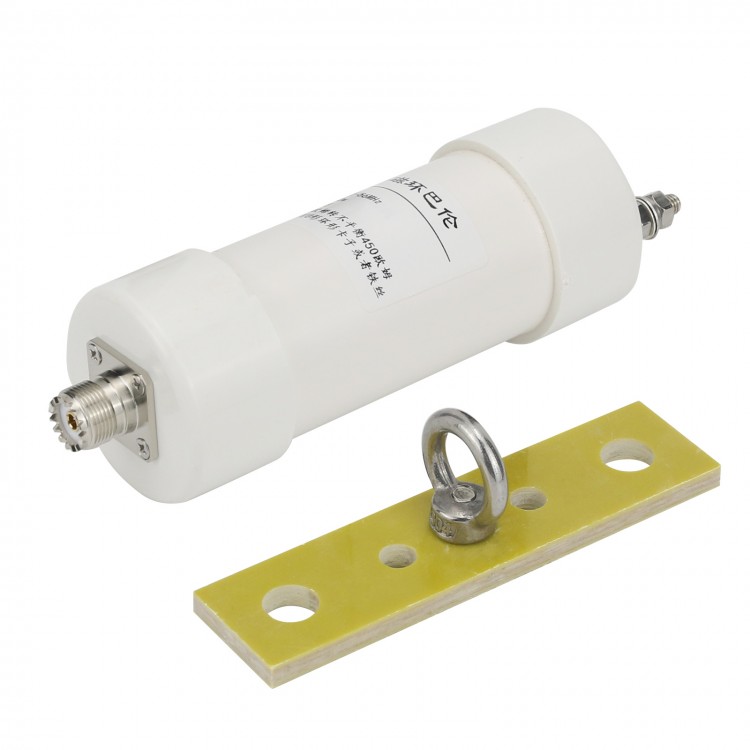

1:9 Balun 1000W 1:9 Antenna Balun Input 50Ω To Output 450Ω For Shortwave SSB CW LSB USB AM FM
Description:
Made from high frequency magnetic ring (50MHz), the balun is perfect for long-line shortwave antennas.
Specifications:
- Conversion Ratio: 1:9
- Input Impedance: 50 ohms (unbalanced)
- Output Impedance: 450 ohms (unbalanced). Suitable for long-line short-wave antenna
- Frequency Range: 1-56MHz
- Standing Wave: Less than 1.5
- Withstanding Power: 1000W
- Dimensions: Outer Diameter 57 x 205mm
- Weight: 500g
User-Friendly Design:
- With epoxy resin plate, 304 stainless steel ring and copper holes for connecting to 2pcs oscillators
Package Included:
- 1 x 1:9 Balun
Note: If customization service for larger powers and other conversion ratios is needed, please contact us for prices and more details.
