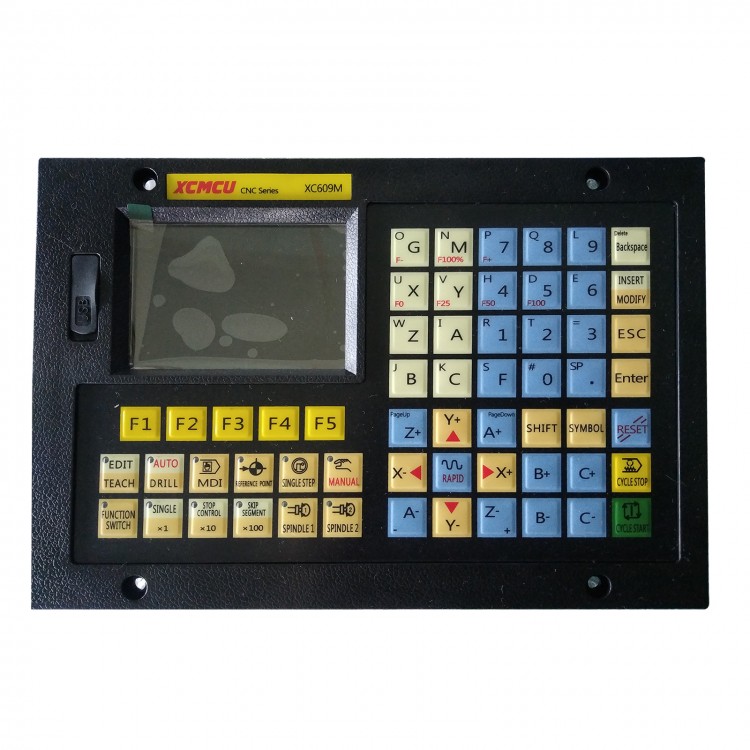

1-Axis CNC Controller CNC Control System for Various Machines XC609MA

1-Axis CNC Controller CNC Control System for Various Machines XC609MA

Description:
The CNC Control System is a latest multi-functional CNC system. It supports milling, boring, tapping, drilling and automatic feeding. It adopts 32-bit high-performance microprocessor, real-time multi-task control technology and hardware interpolation technology, fully linked, 0.001mm interpolation precision, speed 12m/min.

It is your greater choice to control your CNC drilling machine, CNC milling machine, special machine tool, automation equipment, automatic welding robot, feeding robot and coordinate robot.

Features:
- Based on 32-bit microprocessor, full linkage, 0.001mm interpolation accuracy, speed up to 12 m /min
- Can run 3 programs (1 main program, 2 sub-programs) at the same time, which is convenient for processing, loading and unloading
- With 3.5-inch color widescreen LCD, resolution 480X320, Windows interface style. Equipped with 5 function keys, it is easy to operate. It is convenient for debugging and maintenance with display interface such as parameter classification, alarm log, system diagnosis.
- Standard G instruction, compatible with FANUC system instruction.
- 40 kinds of G instruction that support drilling cycles, tapping cycles.
- Full-screen editing part program, built-in 128M massive program space which can store various parts program.
- With USB interface which supports U disk file read and write, data backup.
- I/O 24 pins can be developed to 96 pins
- Convenient to operate with Chinese/English operation interface
- The system adopts pre-interpolation acceleration and deceleration control
- Support multi-level operation authority and limited time system locking function, which make it easy to manage
- Supports third-party software G code files.

Package Included:
- 1 x CNC Control System

Technical Specifications:
