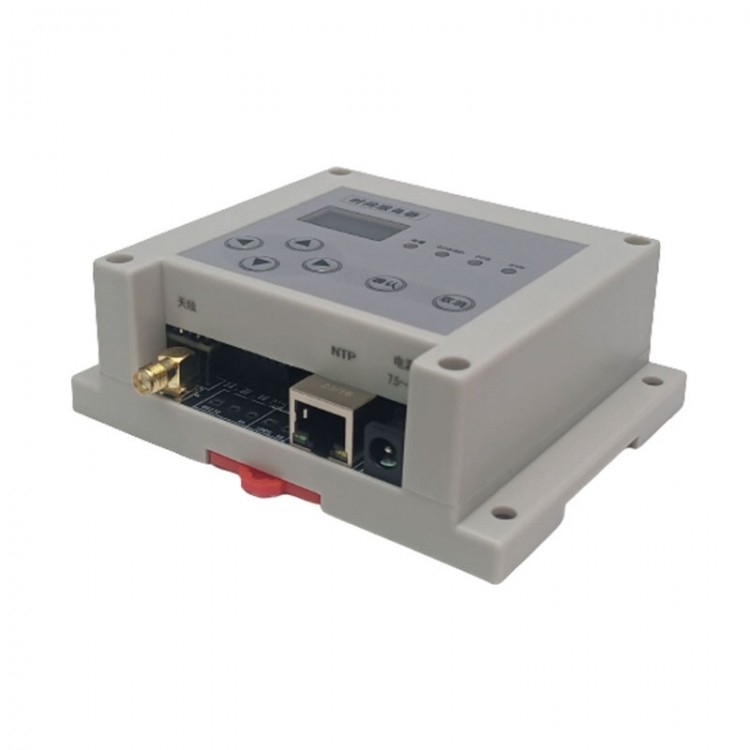

1-Channel Port NTP Time Server Monitoring Clock High Performance Network Time Server for Beidou/GPS/TOD

1-Channel Port NTP Time Server Monitoring Clock High Performance Network Time Server for Beidou/GPS/TOD

Description:
- It is an industrial level innovative time server based on GPS/BD reception for Ethernet NTP timing. The product has undergone extensive market testing, is reliable and of high quality, and has been stably used in many industries such as security monitoring, intelligent transportation, and research institutions.

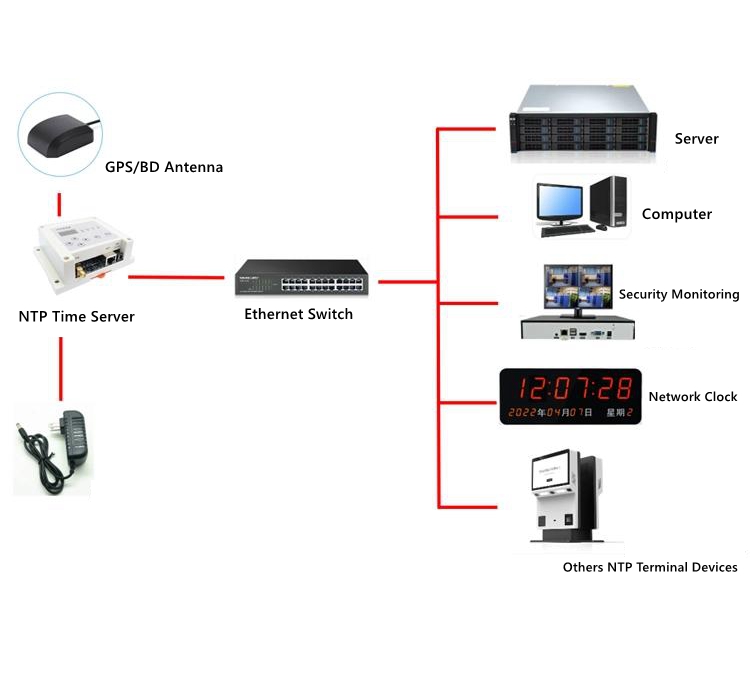

- When there is no external network, the time can be synchronized within the local area network.

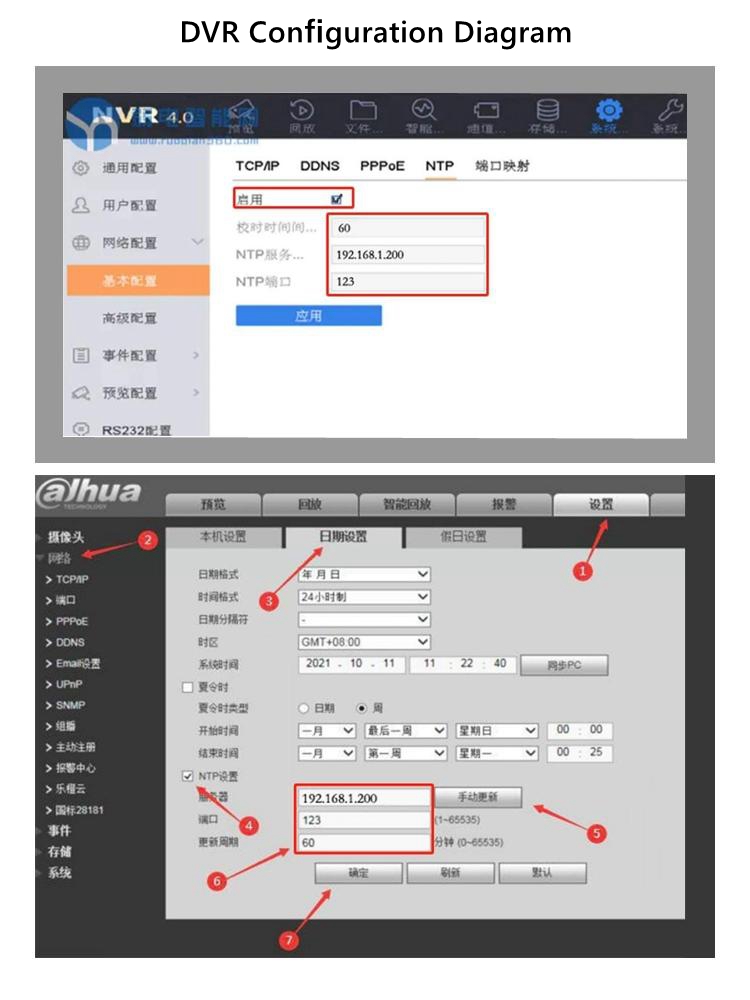

- Supports computers, hard disk recorders (for Hikvision, for Dahua, etc.), NTP terminal devices, etc.
- The antenna needs to be led outdoors (3 meters long). If the conditions are limited, it is also possible to place it near the window facing the sky without obstruction.
- The IP address of the time server can be modified.
- Automatically obtain GPS/Beidou standard time and support power-off time retention function.
- Application: security monitoring, research institutes, substations, transportation, schools, hospitals, etc.

Features:
- High precision network timing: ≤ 10ms
- Rich interfaces: 10/100M network port (optional for RS485/RS232, please leave a message after payment)
- Wide coverage: can be deployed on a large scale
- High sensitivity for GPS/Beidou signal dual-mode reception
- Supporting cross network segment timing, capable of providing timing services to tens of thousands of clients.
- Direct panel display of key operations, more intuitive and convenient
- Password protection prevents unrelated personnel from modifying device information.
- Support for power-off self-protection: support continuing to provide timing services after power-off, and the server time can be set by oneself
- Wide power supply range: 7.5V-24V
- High-efficiency heat dissipation, high and low temperature resistance, anti-interference
- Strong compatibility, supporting all NTP clients on the market.
- Light touch buttons: sensitive to operation, long service life, good tactile sensation, and good recovery.
- Ventilation and heat dissipation: The interface panel reserves air vents to ensure long-term operation of the equipment.
- Rail/wall mounted installation: Standard DIN35MM rail installation, quick and convenient installation and disassembly.

Specification:
- Model: ZG802-01
- LCD display: 0.96-inch, all Chinese operation command
- Operating temperature: 0 - 50℃
- Relative humidity: <= 90%
- Storage temperature: -30℃ ~ +70℃
- Timing accuracy: <=1-MS in 24h (without GPS signal)
- Power supply: DC 12V
- Power consumption: <=5W

Input Signal (GPS/BD):
- Channel: 1 channel
- Timing accuracy: <= 30ns
- Antenna: dual mode ceramic universal antenna (3-meter long)
- Physical interface: SMA

Output Signal (NTP):
- Channel: 1 channel
- Network port: 10/100M
- Synchronous precision: <= 10ms
- Clients request volume: >8000 times/sec

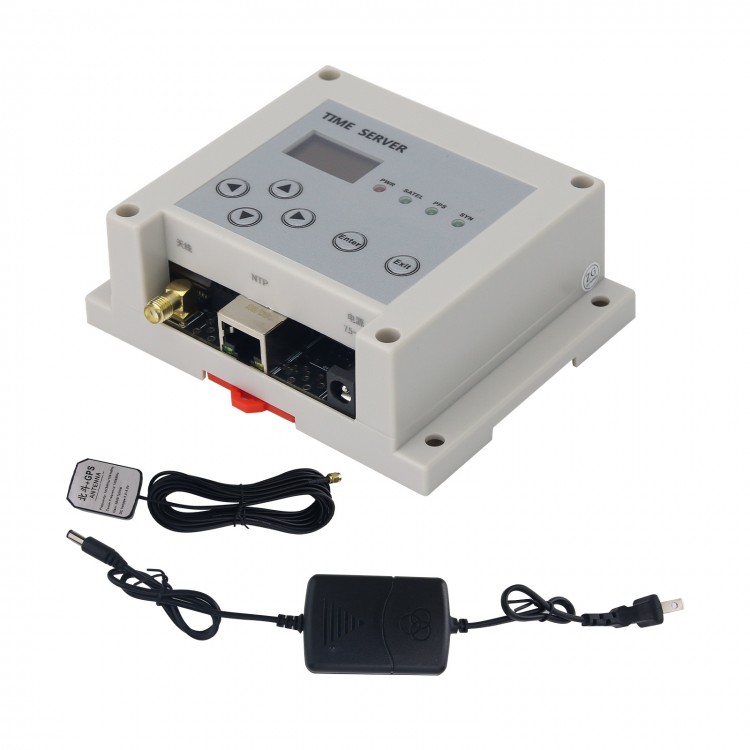

Package Included:
- 1 x Host
- 1 x Antenna
- 1 x Power Adapter
