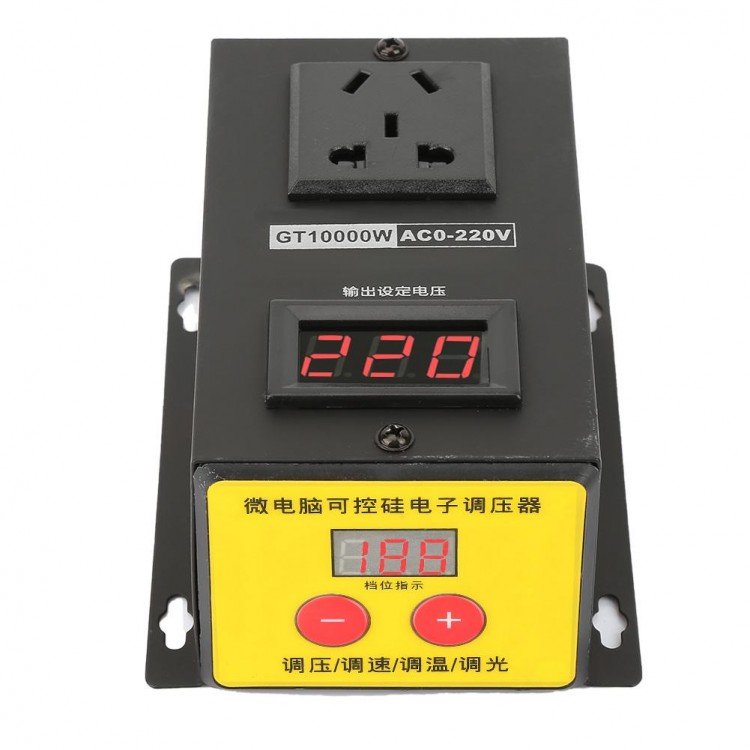

10000W 220V SCR Electronic Voltage Regulator Speed Controller For Motor Fan Electric Drill Thermostat

10000W 220V SCR Electronic Voltage Regulator Speed Controller For Motor Fan Electric Drill Thermostat

Advantages:
- Imported SCR Chip: imported high-voltage filter capacitor, imported high-power SCR, imported trigger diode, 1.6mm FR-4 double-sided circuit board.
- Flame-Retardant Metal Chassis: high-temperature flame-retardant and non-constant, metal spray paint does not rust Effectively prevent high temperature and heavy pressure, and eliminate potential safety hazards. Safe, durable and more efficient.
- New Type Terminal: using fence type terminal, the current is large, 45A does not generate heat. Humanized design, more convenient for application.
- Button Adjustment: The stability of button adjustment is better than potentiometer type voltage regulator. The adjustment is precise, convenient and fast. 0-220V stepless adjustment.
- Large Heat Sink: The SCR will generate heat when it works, so the bigger the heat sink, the better. The addition of conductive paste effectively ensures the normal and stable operation of the SCR.
- Mounting Hole Design: scientific design. Place or hang horizontally. The humanized design is safe and convenient.
- Digital Voltage Display: output voltage display, the output voltage is more intuitive and visible. The voltage is correct and adjustable under load.

Features:
- SCR electronic voltage regulator
- Stepless voltage regulation & speed regulation: AC 0-220V regulation
- Easy to install
- High-end material selection configuration
- High-power module
- Can be used to adjust temperature, speed, dimming, voltage
- Used in household appliances, industrial appliances, scientific experiment equipment, factories, school electrical equipment, etc.
- Using new two-way high-power thyristor, the limit current can reach 100A, which solves overcurrent caused by too small resistance of electric furnace wire when it is cooled
- It is very convenient to adjust the output voltage of the mains power supply. It can be adjusted arbitrarily between 0-100% (220V in 100 levels of adjustment, non-linear) for use by electrical appliances. Such as electric stove, water heater heat adjustment, lamp light adjustment, small motor speed adjustment, electric soldering iron temperature adjustment, etc. So as to achieve the effects of dimming, temperature and voltage control
- Available for large electrical appliances with power less than 10,000W. Since the power is already large, general household electrical appliances or small factories are sufficient.
- The power of inductive or capacitive load should be reduced. This voltage regulator is equipped with two-way high-power thyristor, which is very convenient and practical
- Can be applied to ceiling fan, incandescent lamp, industrial fan (220V), assembly line conveyor (220V), single-phase suction pump, household water pump circulating pump, engraving grinder, hand-held electric drill, hair dryer, angle grinder, cutting machine, electric soldering iron, electric heater, electric heating pot, electric blanket, electric stove, heater, resistor, electric heating wire, electric heating tube, cutting foam, face steamer, electric kettle, hand warmer, curler etc.
- It is practical and versatile. The voltage regulator can control the motor speed from the original 0%-100% stepless change. The technology is extremely advanced, with high efficiency, large torque and low heat generation. It has been improved many times and has been widely and stably applied in industrial production. Suitable for industrial production, DIY production, scientific experiment, light industry production, motor speed control, household appliances
- Button adjustment, its stability is better than potentiometer type voltage regulator
- Button multi-speed stepless adjustment: 0-100 free adjustment
- Zero lag, zero delay, with peak voltage absorption circuit to effectively protect the high-power SCR. Anti-surge, anti-spike, RC absorption multiple protection

Specifications:
- Model: GT-10000W
- SCR model: BTA100-800B (imported)
- Input voltage: AC 220V
- Output voltage: AC 10-220V adjustable (the output voltage is less than the input voltage)
- Rated current: 25A
- Maximum current: 45A
- Maximum power: 10000W (resistive load limit power, it is recommended to use within 5000W for a long time at room temperature)
- Voltage adjustment: 0-100% (220V is adjusted in 100 levels, non-linear)
- Value save: The value is automatically saved, and it will automatically start to the last adjusted value after power on

Precautions:
1. The measured output voltage is the same as the input voltage when there is no load, and the output voltage can be measured only when a load of more than 30W is connected.
2. Input AC power, the output is also AC, not DC.
3. The 10000W mentioned above refers to the power when working in a resistive load. The inductive load is 1/3 of the resistive load. The load refers to electric lamps, heating wires, etc., and the inductive load refers to series-excited motors.
4. Electrical appliances with metal enclosures must be safely grounded.

Package Included:
- 1 x Voltage Regulator

Note: Please connect to a load first and then adjust voltage (test voltage).
