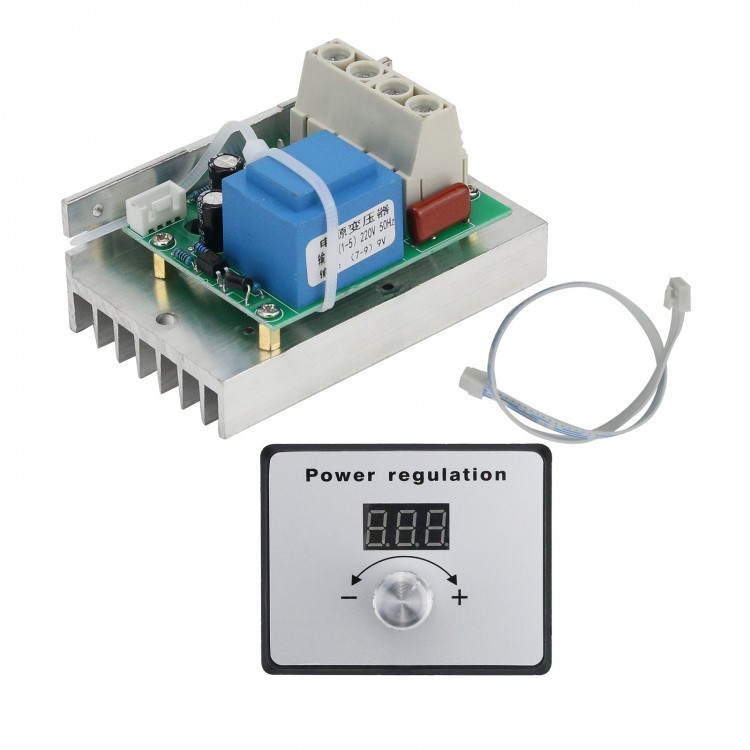

10000W AC220V Voltage Regulator SCR Light Power Temperature Control (5000W Internal Heating Pipe)

10000W AC220V Voltage Regulator SCR Light Power Temperature Control (5000W Internal Heating Pipe)

Feature:
- Potentiometer knob adjustment, a total of 100 levels, 0-100, potentiometer with switch, can input 0-5V level control, can be controlled by MCU or PLC.
- Two-way high-power thyristor, because the current can reach 80A, solves the overcurrent problem caused by electric furnace wire when the resistance is too small when it is cooling.
- Conveniently adjust the output voltage of the mains power supply. It can be adjusted arbitrarily between 0-100% (220V divided into 100 levels, non-linear) for use by electrical appliances. It can be applied to water heater heat adjustment, lamp light adjustment, small motor speed adjustment, electric soldering iron temperature adjustment, etc. so as to achieve the effects of dimming, temperature and voltage control.
- It can be used for large electrical appliances with electric power less than 10000W.
- This voltage regulator is equipped with two-way high-power SCR, which can be used without adding any components, which is very convenient and practical.
- Comes with thicker and enlarged heat sink.
- Exquisite workmanship and durability and has long service life.

Parameters:
- Operating voltage: AC 220V
- Maximum power: 10000W resistive load instantaneous limit power, it is recommended to use within 5000W for a long time at room temperature
- Voltage adjustment: The default gear is 0-100, if you need other gears, you can contact customer service for customization. 0-100% (220V can be adjusted in 100 steps, non-linear)
- Panel size: 75*60mm; fixing screw spacing on the panel: 60*45mm

Package Included:
- 1 x Set of Voltage Regulator

Note: The motherboard is 220V by default, and you can contact customer service if you need a 380V one.
