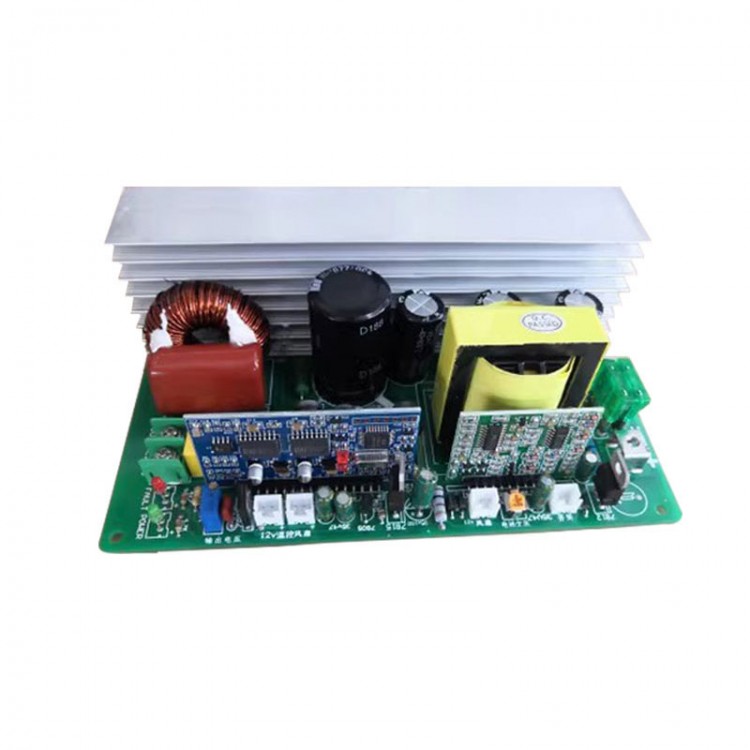

1000W Pure Sinewave DC24V to AC220V Converter Board 2-Channel Independent Power Supply Smart Heat Dissipation

1000W Pure Sinewave DC24V to AC220V Converter Board 2-Channel Independent Power Supply Smart Heat Dissipation

Features:
- Two channel independent power supplies and independent insurance.
- The input and output are all made of copper wire sockets, which is very convenient for wiring.
- The rear stage adopts IGBT27 A 600V power transistor, which is shock resistant, low impedance, and has low heat generation.
- Switch to an intelligent temperature controlled fan micro-controller EG8010 for stable and precise control. The low-temperature fan stops cooling the medium temperature fan, and the output is turned off at high temperatures. It automatically starts when the temperature is low.
- Rated power: up to 500W/750W (optional)

Specification:
- Board size: 170 x 119 x 55mm (12V)/170 x 119 x 60mm(24V/48V)
- Net weight: 665g

Precaution:
- The 12V to 220V inverter can only be connected to one 12V battery for testing. Do not connect any other voltage that exceeds 16V, which will damage the circuit board.
- The input positive and negative poles must be carefully considered, and the standard requires a copper wire length of 6 square meters, which cannot exceed 1 meter, otherwise it will affect performance. Battery configuration: 10AH with 100 watts, 20AH with 200 watts, and so on.
- There is a DC high voltage of around 350V on the sine wave board, and the bottom board must be insulated. Please do not place it on a wooden board for electrical testing. Leakage from the wooden board can damage the high-voltage part of the circuit board. High insulating materials such as plastic board or foam board should be padded. It is strictly prohibited for human body and metal materials to touch the circuit board during power on test.
- This inverter does not have a charging function. It is strictly prohibited to connect mains power to the output line, otherwise the consequences will be borne by oneself.
- Although this inverter comes with short-circuit overload protection function, electronic products still cannot achieve 100% protection. If high-power electrical appliances are connected, the inverter board will protect and alarm, and the electrical appliances must be disconnected in a short period of time to prevent damage to the circuit board.
- Special precautions: This product cannot be used with high-power appliances such as microwaves, induction cookers, air conditioners, freezers, etc.

Package Included:
- 1 x Converter

Note:
- Battery is not included.
