1008C 8CH 2.4MSa/s Hantek Oscilloscope Automotive Oscilloscope + 2 HT-201 Oscilloscope Attenuators

1008C 8CH 2.4MSa/s Hantek Oscilloscope Automotive Oscilloscope + 2 HT-201 Oscilloscope Attenuators

1008C Oscilloscope:
Features:
* Cost-effective Hantek PC USB 8CH Automotive Diagnostic Oscilloscope/DAQ/Programmable Generator: Highly efficient and cost-effective;
* 8 channels oscilloscope for vehicle testing;
* Automatic Ignition Probe;
* 2.4MSa/s real time sampling rate, 12bit vertical resolution;
* Spectrum analysis function;
* 10mV/div to 5V/div input sensitivity;
* DAQ card function;
* 8 channels programmable generator which can analog signals of crankshaft, camshaft, etc.

(1) Vehicle Testing
* First Diagnosis: Intake manifold vacuum & ignition, Petrol fumes adjusting valve vacuum & ignition, Idle exhaust ignition, Starting exhaust ignition
* Ignition: primary and secondary
* Sensor: Air Flow Meter, Camshaft, Crankshaft, Distributor, Lambda sensor, Throttle position
* Bus Diagnosis: CAN bus data examine, CAN bus signal integrity, CAN bus LH long time acquisition, LIN bus
* Performer: Petrol/Diesel
* Starter and charging circuits
(2) Oscilloscope
* 8 channels oscilloscope, 2.4MSa/s real time sampling rate
* 12 bits vertical resolution, spectrum analysis function
(3) Programmable Generator
* 8 channels programmable generator
* Can analog signals of crankshaft, camshaft etc.
(4) Others
* USB 2.0 interface plug and play, and no need extra power supply
* More than 20 types of automatic testing function, a similar interface with bench-top oscilloscope, easy to use

Note:
* The device languages are English, Germany and Chinese.
* Software support: For Windows NT, Window 2000, Windows XP, VISTA, Windows 7/8/10, 32 BIT and 64 BIT.

HT-201 Attenuator:
Features:
* This item has been designed to allow fuel injector and primary ignition waveforms to be measured using Hantek oscilloscope product
* Can allow oscilloscope to measure fuel injector and primary ignition waveforms
* Passive attenuator with 20:1 attenuation
* If input a 20V signal, it can output a 1V signal
* By using this item, oscilloscope can measure voltage higher than its range (*20V)

Specifications:
* Attenuation: 20:1
* Bandwidth: 10MHz
* Input Resistance: 1.053M
* Item Size: 60 x 18 x 16mm/2.4 x 0.7 x 0.6"
* Item Weight: 24g/0.05lb

Note:
* The attenuators should not be used for any high voltage measurements other than fuel injectors and primary ignition.

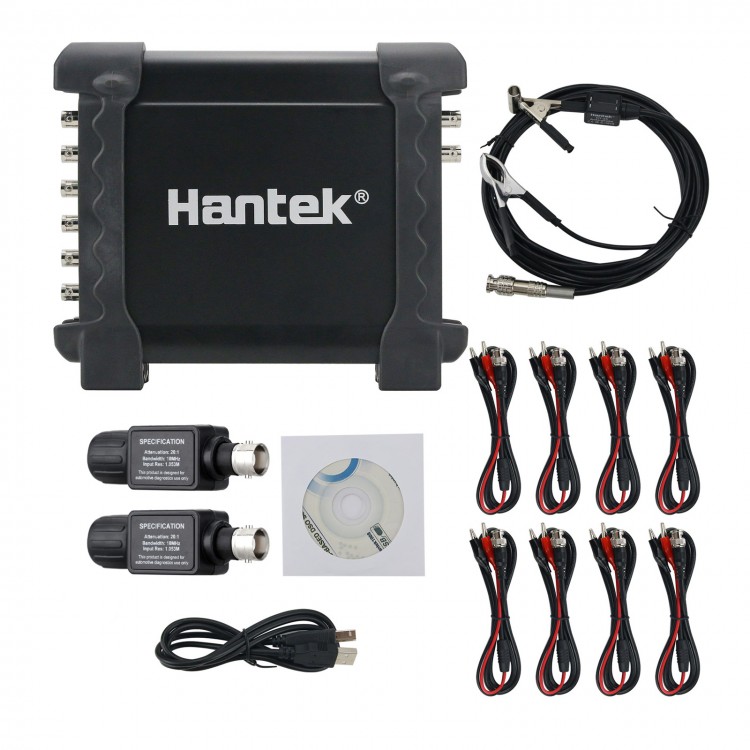

Package Included:
* 1 x 1008C oscilloscope
* 8 x Crocodile probes/cables
* 1 x CD (driver, etc.)
* 1 x USB cable
* 1 x Carry bag
* 1 x Ignition probe
* 2 x HT-201 attenuators

Packaging Details:
* G.W.: 1.78KG/3.9LB

Main Functions of 1008C:
★ Function Selection:
There are three functions of vehicle diagnosis, oscilloscope and signal generator, including 78 types of vehicle diagnosis function.


★ One Button Screenshot:
Save the current waveform and generate pictures. Storage location is optional and easy to find.


★ Quick Guide:
Callout the quick guide column with one button. There are special vedio guide for each vehicle diagnosis function, including wiring method, adjustment method, reference waveform etc. And it is supported to be checked through scanning the QR code.


★ Reference Waveform:
Over 80 types of standard reference waveform inside and can be callout or close with one button. It is convenient to be compared.


★ Measurement Method:
20 types of automatic measurement method which can be callout or close with one button. It is convenient and visual to read out the result.


★ Print:
The result can be printed with one button and generate diagnosis report which is easy to be saved and recorded.


★ REF Comparison Waveform:
The user can save the waveform as REF format and callout it again when you need to compare the two waveforms catched in different time.


★ Data Storage:
The diagnosis result can be saved as the format of txt, csv, rfc, xls, doc, jpg and etc. It is convenient to be checked and compared later.


★ 8CH Vehicle Diagnosis:
8CH signal can be measured simultaneously. The measurement voltage of each channel can be adjusted independently. You can choose to open or close each channel.


★ Waveform Record:
Support to record and replay the waveform. The waveform can be save into the computer hard disk and easy to read. There is no limit to the record time which can long-time measure and record the waveform for troubleshooting.


★ Multilanguage Support:
Support the display surface in Chinese, English, German language, and it can be switched freely.


★ Cursor Measurement:
Support 4 types of cursor measurement mode-cross,track, horizontal, and vertical.It's easy to read out the time and voltage of irregular signal.


★ Color and Lightness:
The background color is optional as user's preference. And the lightness of waveform and gridding is settable.


★ Easy to Install Software:
Install the PC software and start to use without any other drivers. Support for WIN XP/7/8/10.


★ USB Communication:
USB2.0 power supply + communication interface, plug and play, and support hot plugging.


★ Signal Generator:
Signal generator function, can simulate crankshaft and camshaft signal.
