| Quantity | 3+ units | 10+ units | 30+ units | 50+ units | More |
|---|---|---|---|---|---|
| Price /Unit | $80.07 | $78.43 | $75.98 | $72.71 | Contact US |
LichTech 100/1000 Base-T1 Media Converter 1000Mbps Automotive Ethernet Converter w/ Indicator Lights
$86.01
LichTech 100Base-T1 Media Converter 100Mbps Automotive Ethernet Converter w/ Status Indicator Light
$66.57
KUNHONG KH-SW2000A 11-Port TSN AVB Automotive Ethernet Switch + 5pcs 15EDG 3.81mm Terminal Blocks
$3,003.31

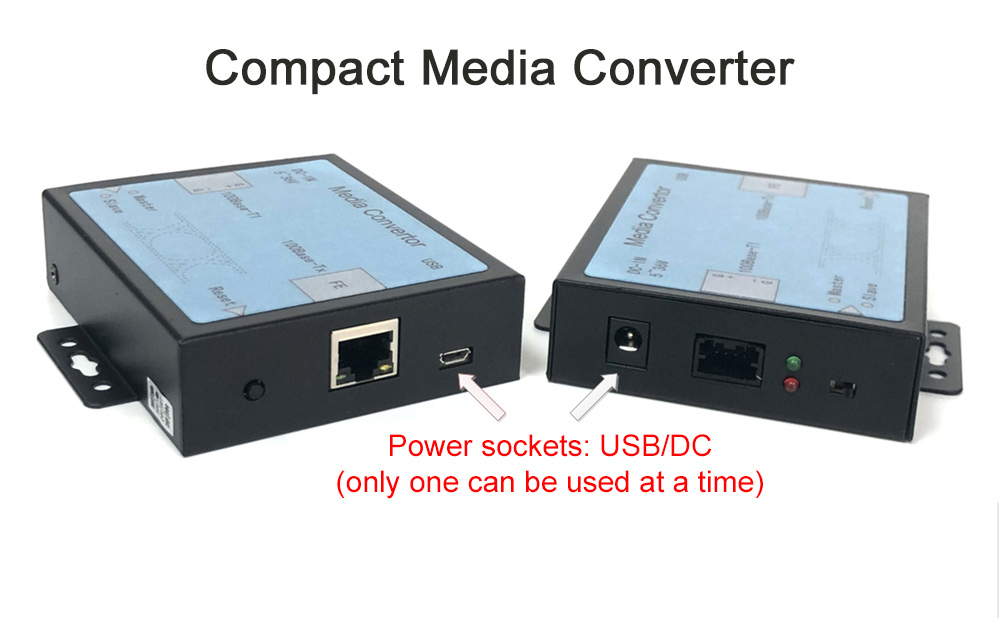

100BASE-T1 Media Converter 100Mbps Automotive Ethernet Converter w/ 49.2ft Communication Distance
Features:
* Stable and reliable performance
* Main unit size: 9.8cm x 8cm x 2.5cm/3.9" x 3.2" x 1"
* ESD protection level: contact discharge ±8KV; air discharge ±15KV
* DC input voltage range: 5~60V

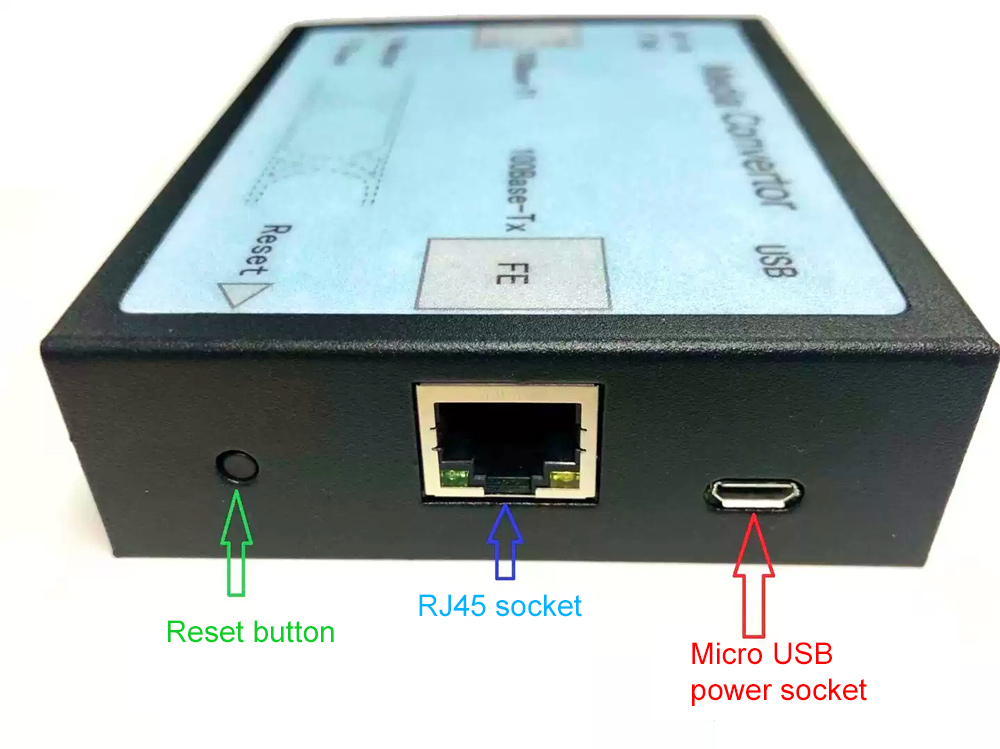

* Can be powered via a USB interface; operating current: 12mA at 5V
* MINI 50 connector, dedicated to automotive Ethernet, complies with signal integrity
* It has passed the TC8PMA physical layer test
* Communication distance can reach 15m/49.2ft
* Sheet metal housing with two fixing brackets

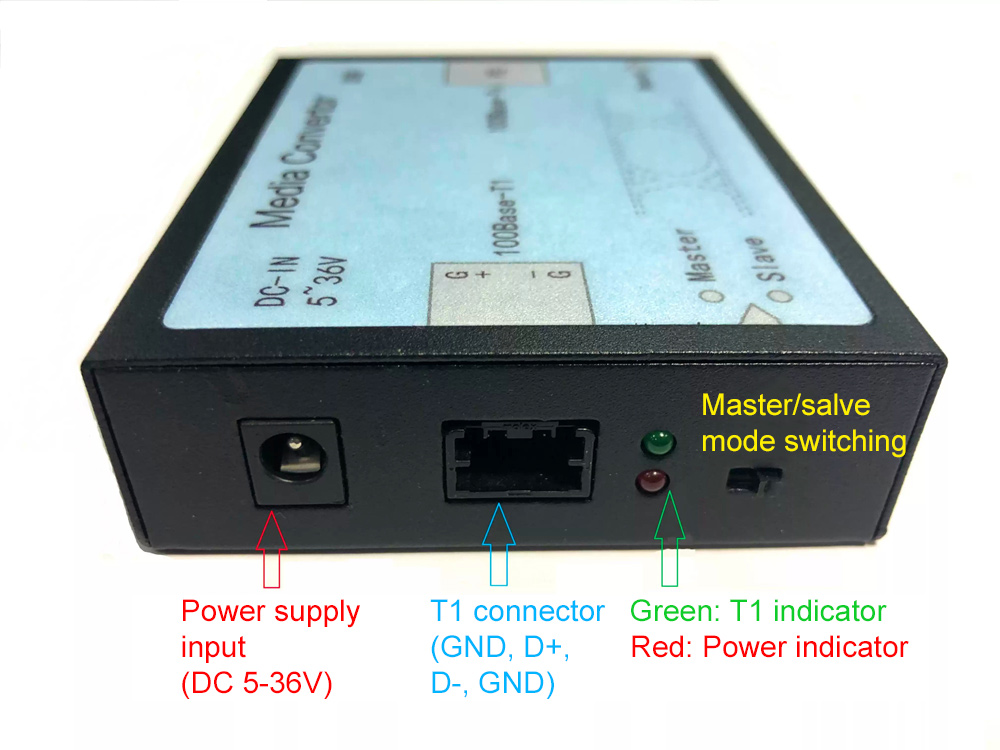

* 100BASE-T1 master-slave mode configurable via a DIP switch
* With a power indicator and a connection indicator
ESD Protection Level:
* 100base-T1 dedicated high-quality ESD protection device (for NXP) with load capacitance as low as 1.8pF;
* ESD protection level: contact discharge ±8KV; air discharge ±15KV;
* It can effectively protect the equipment from electrostatic interference in wiring and work.

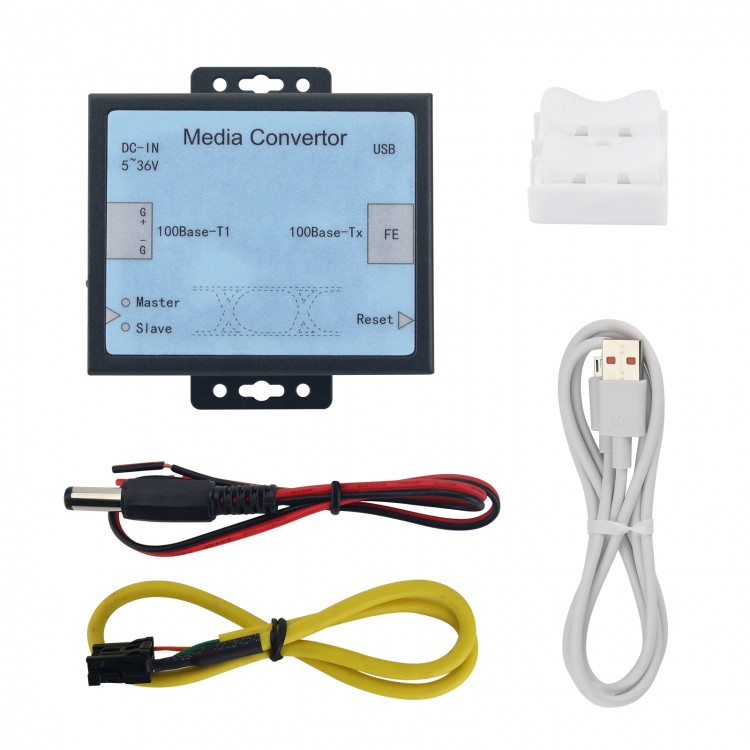

Package Included:
* 1 x Media converter
* 1 x Automotive Ethernet twisted pair

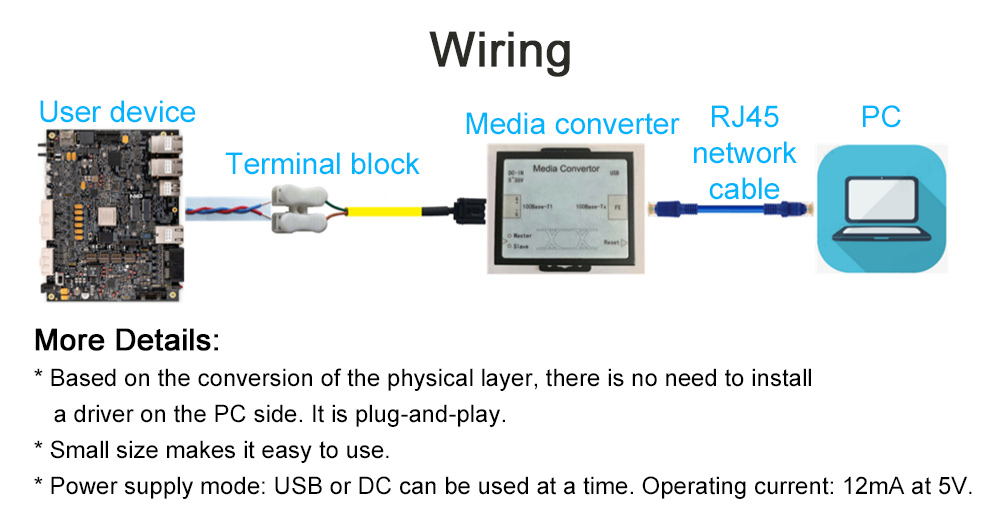

* 1 x Terminal block (for easy wiring)
* 1 x Power cable
* 1 x Micro USB cable
Packaging Details:
* Weight: 0.35kg
