100BT1-MAX 100Mbps Ethernet Converter to RJ45 Standard Ethernet Media Converter with H-MTD Interface and Thickened Shell

100BT1-MAX 100Mbps Ethernet Converter to RJ45 Standard Ethernet Media Converter with H-MTD Interface and Thickened Shell

Specifications:
- Model: 100BT1-MAX
- Conversion protocol: 100BASE-T1 two-wire automotive Ethernet / 100BASE-T RJ45 standard Ethernet

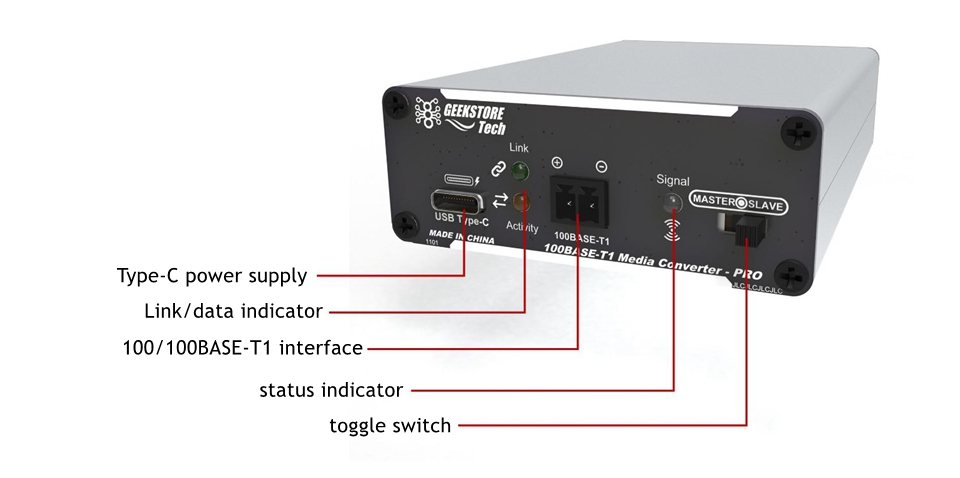

- Link/data indicator:
  Link indicator: After establishing a connection with 100BASE-T1, the link indicator light will light up
  Activity indicator: flashing when data passes through

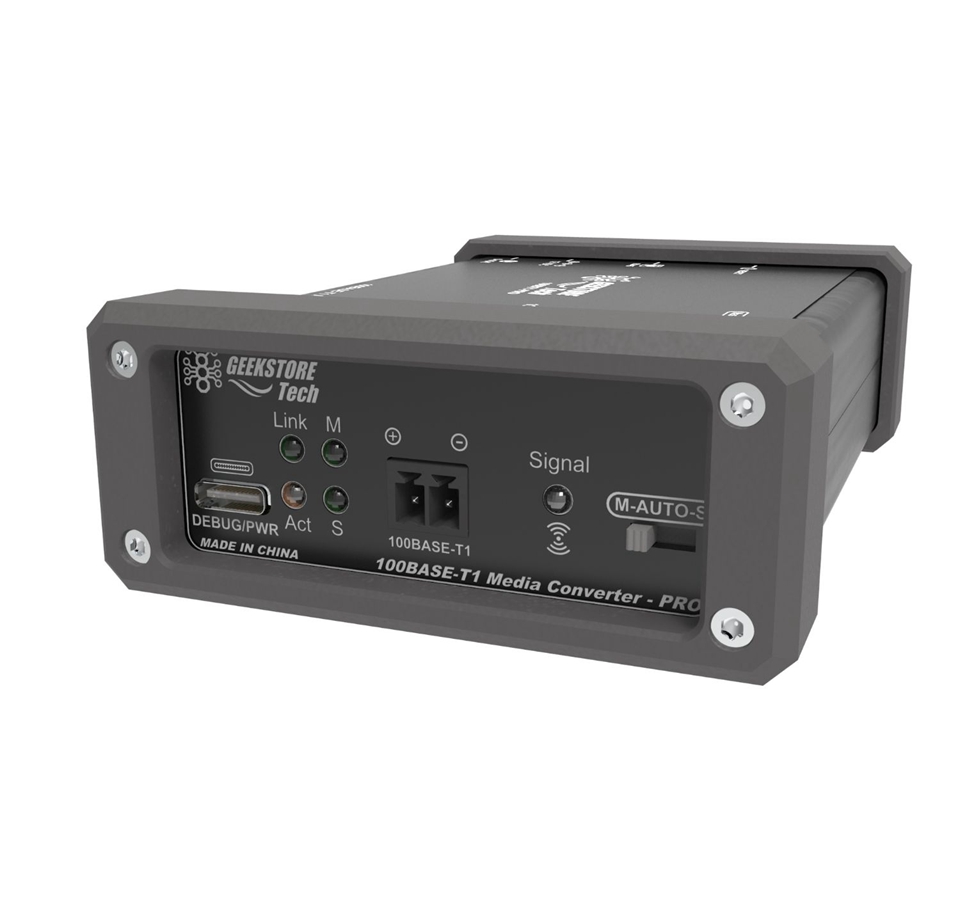

- Master/slave indicator: indicating master/slave mode
- Upper-computer software: support
- Multi-function indicator:
  a. The standby mode flashes at a frequency of 0.5 seconds, indicating that a connection can be established at any time.
  b. The connection status ranges from red to green in color to indicate signal strength, with red indicating low signal strength and green indicating high signal strength.
  c. For disconnection status, the indicator turns red, indicating that a connection was previously established but has now been disconnected.
- Adaptive master/slave mode: the converter will automatically adjust to the corresponding working mode based on the target device.
- Manual mode: manually switchable master-slave mode, no need to reset during switching.

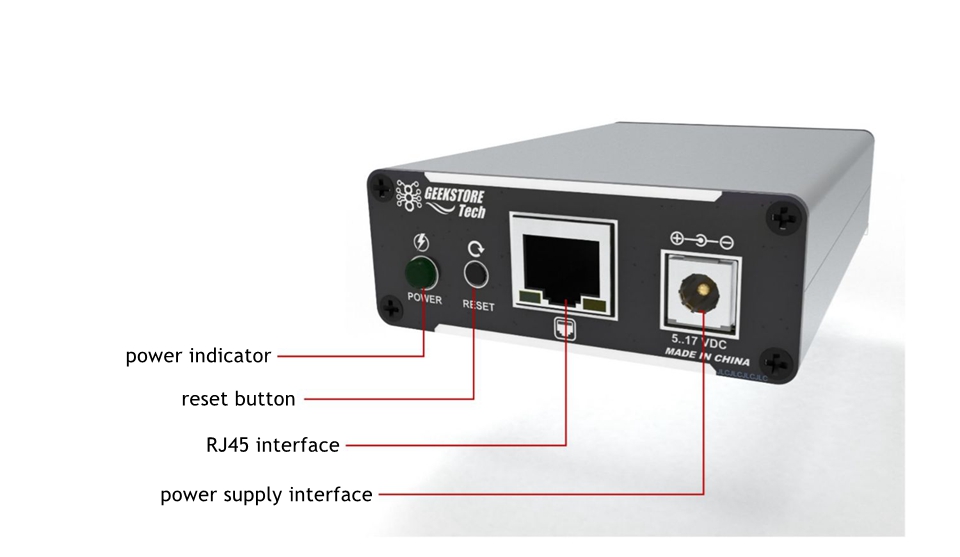

- 100BASE-T RJ45 indicator:
  Green light stays on: 100BASE-T connected
  Flashing yellow light: data passed
- One-key mode: no need for reset, one click switch between master-slave mode.

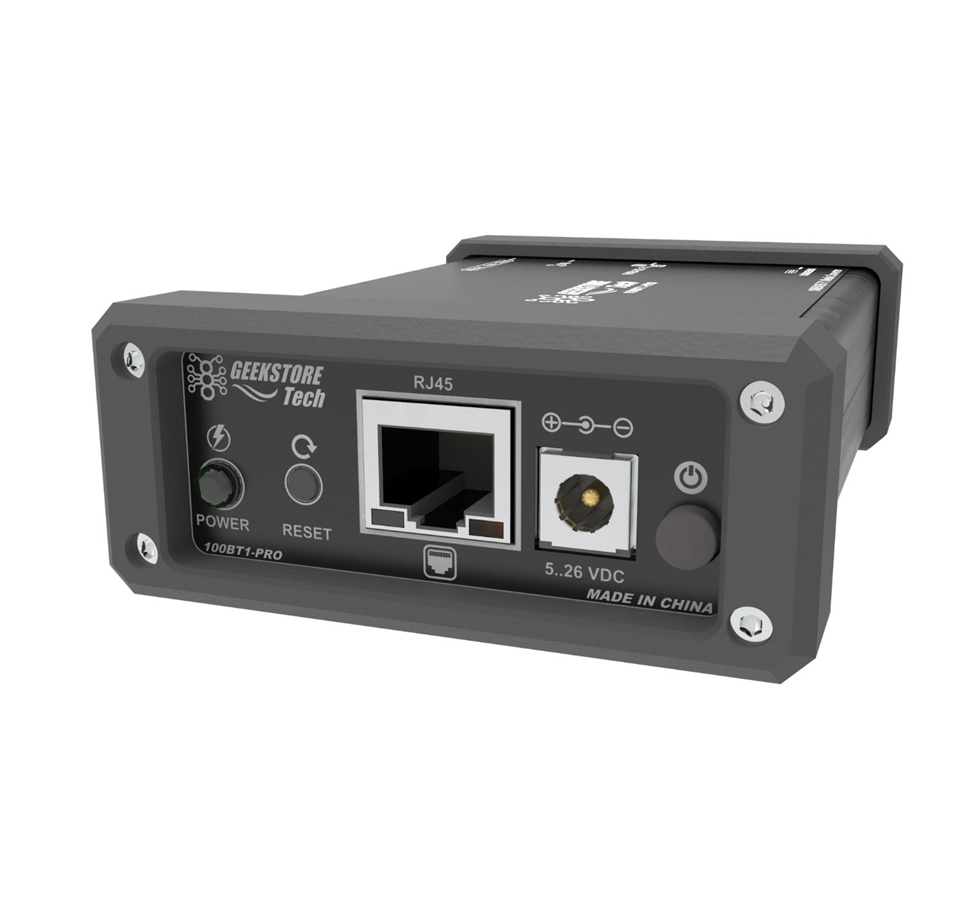

- Power supply mode: USB TYPE C (mobile phone charger and computer) / DC 5V - 26V (default 12V)

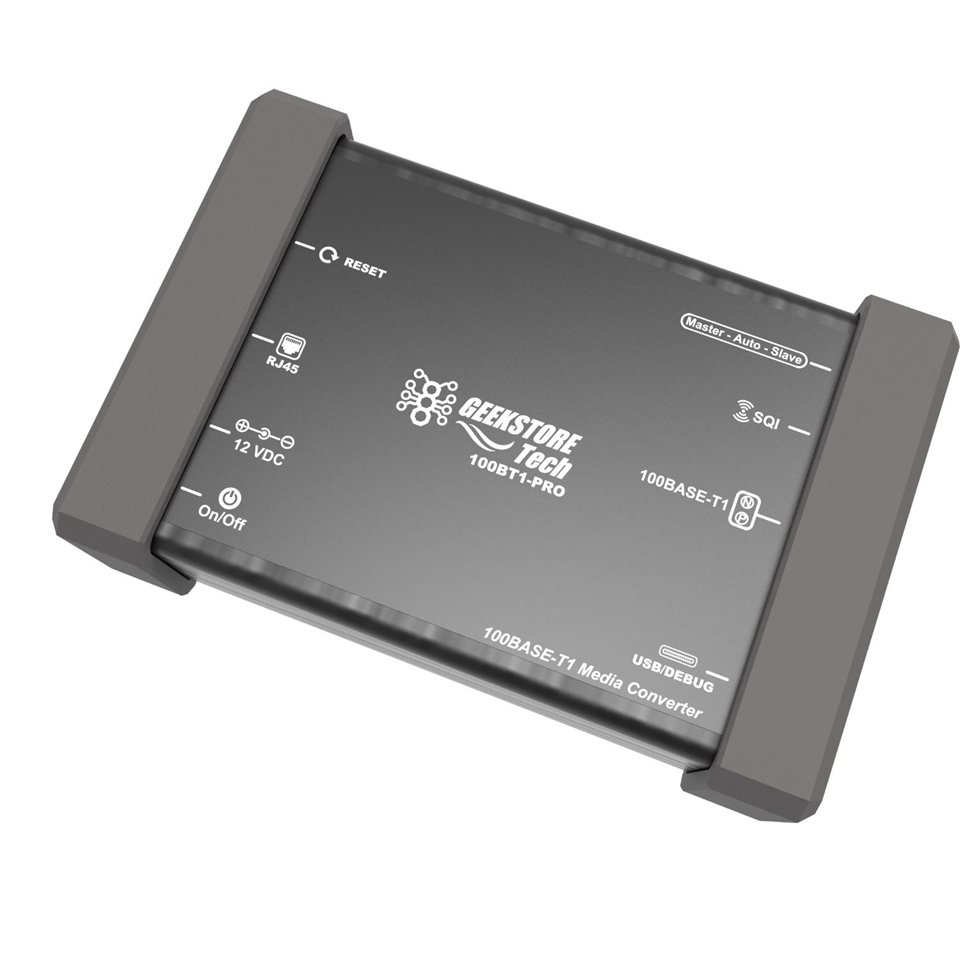

- Shell material: thickened aluminum alloy shell with protection board
- Weight: 260g
- Size: 122 x 87 x 48mm

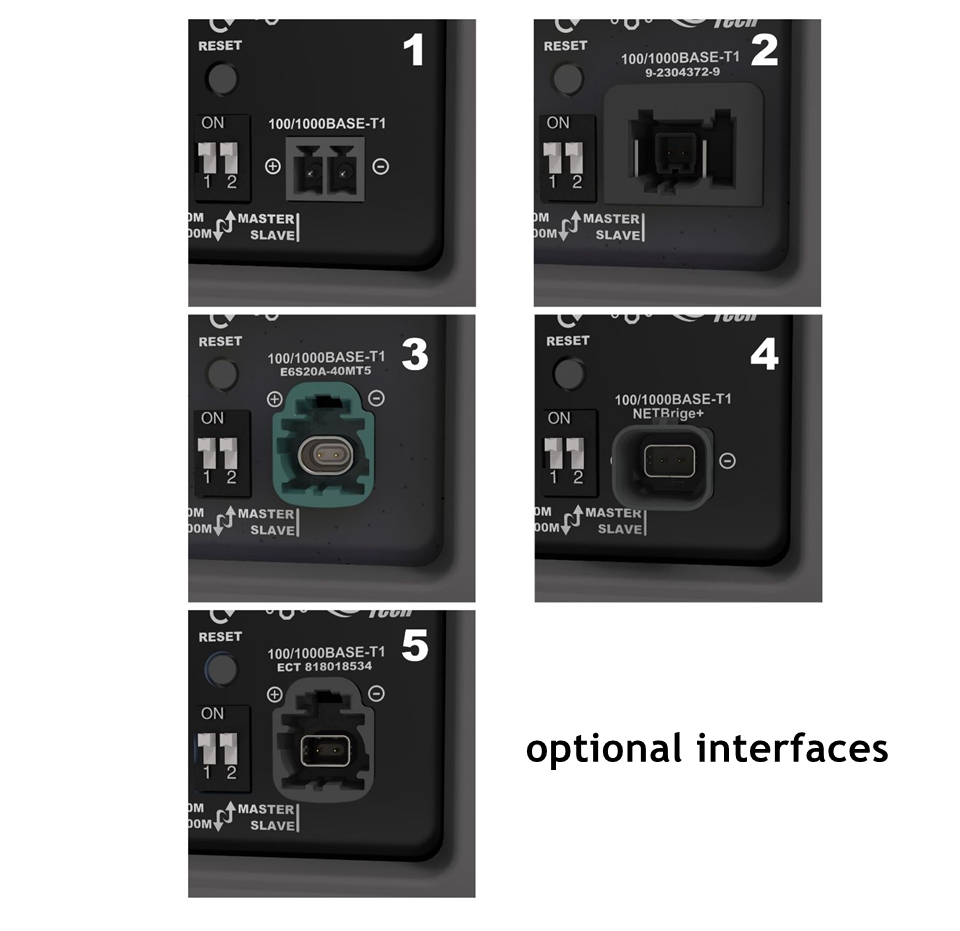

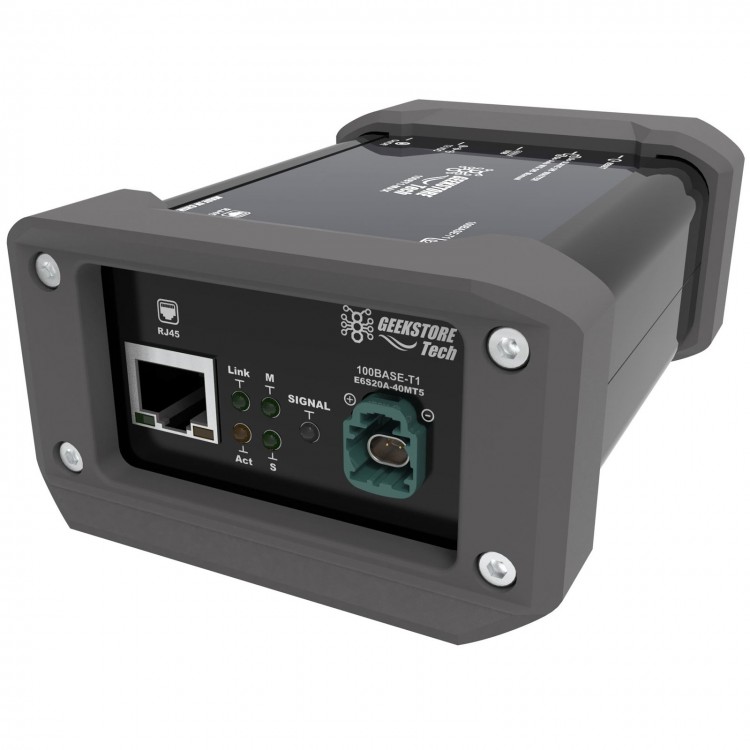

- Interface: 15EDG 3.81mm (universal interface)/H-MTD/MATENET/NetBridge+/ECT (optional)

Package Included:
- 1 x Media Converter
- 1 x 12V DC Power Adapter
- 1 x Type-C Power Cable
- 1 x Twisted Pair Cable
- 1 x 1.5m/4.9ft Network Cable
