100K-8GHZ-SP8-CNC SP8T RF Switch with Wide Bandwidth & High Isolation & Low Insertion Loss

Availability: In stock, usually dispatched in 1 business day

  • Price:$114.09
  • Price in reward points: 1141 Reward Points: 11
  • Quantity 3+ units 10+ units 30+ units 50+ units More
    Price /Unit $111.81 $109.53 $106.10 $101.54 Contact US
Quantity:
Buy it now Add cart

You might like

LF-8GHz 100K-8GHz SP8T Switch RF Switch with Metal Shell High Isolation Low Insertion Loss

LF-8GHz 100K-8GHz SP8T Switch RF Switch with Metal Shell High Isolation Low Insertion Loss

$116.76

(0)
HMC253-SP8T RF Switch Module Microwave Switch 2.5GHz Bandwidth Band Switching Low Cost Multi-Channel

HMC253-SP8T RF Switch Module Microwave Switch 2.5GHz Bandwidth Band Switching Low Cost Multi-Channel

$31.79

(0)
QM-SP8T-DT8D DC-8GHz SP8T Switch RF Switch Microwave Switch Single-Pole Eight-Throw Switch Module

QM-SP8T-DT8D DC-8GHz SP8T Switch RF Switch Microwave Switch Single-Pole Eight-Throw Switch Module

$84.62

(0)
QM-SP8T-4S 10M-4GHz SP8T Switch RF Switch Microwave Switch Featuring Low Insertion Loss

QM-SP8T-4S 10M-4GHz SP8T Switch RF Switch Microwave Switch Featuring Low Insertion Loss

$61.04

(0)
QM-SP8T-DT7E DC-7GHz 8-Channel RF SP8T Switch Wideband Single Pole Eight Throw Microwave Switch

QM-SP8T-DT7E DC-7GHz 8-Channel RF SP8T Switch Wideband Single Pole Eight Throw Microwave Switch

$64.06

(0)
9K-13GHz RF Switch Ultra-Wideband RF SPDT Switch Microwave Switch

9K-13GHz RF Switch Ultra-Wideband RF SPDT Switch Microwave Switch

$67.45

(0)
HMC321 RF Switch Module 1 Open 8 RF Switch 8GHz Frequency 5V Power Supply SMA Interface

HMC321 RF Switch Module 1 Open 8 RF Switch 8GHz Frequency 5V Power Supply SMA Interface

$68.31

(0)
QM-SP8T-6S 100MHz-6GHz RF Single Pole Eight Throw Switch Wideband Microwave Switch with SMA Female Connector

QM-SP8T-6S 100MHz-6GHz RF Single Pole Eight Throw Switch Wideband Microwave Switch with SMA Female Connector

$59.29

(0)

100K-8GHZ-SP8-CNC SP8T RF Switch with Wide Bandwidth & High Isolation & Low Insertion Loss

Parameter:
- Operating frequency: 100KHz-8GHZ (When it is lower than 1M, it can increase the internal direct isolation microwave capacitance.)

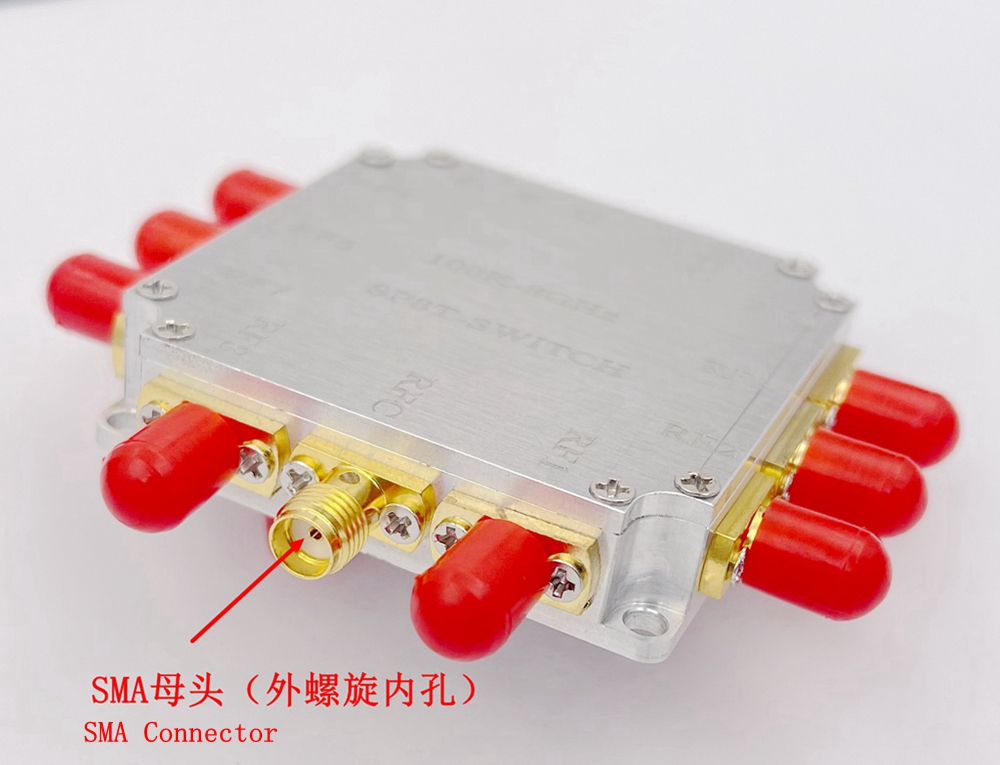

- Interface: SMA-50 ohm (outer spiral inner hole)
- Size: 5.1 x 5.1cm
- Power supply: +5V (with input protection diode)
- Control port: 0/5V control (single chip microcomputer IO port can be used for control, A/B/C three main control)

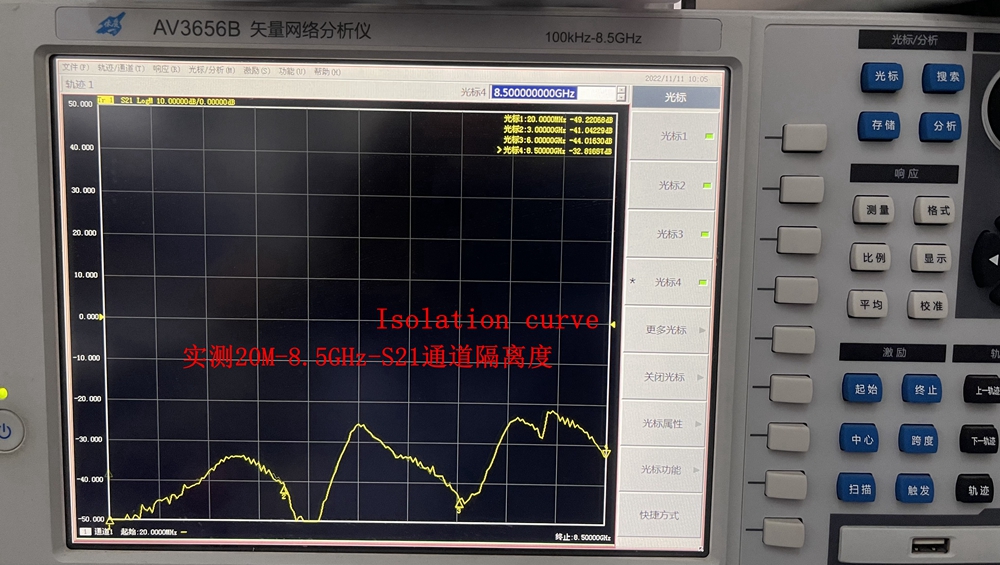

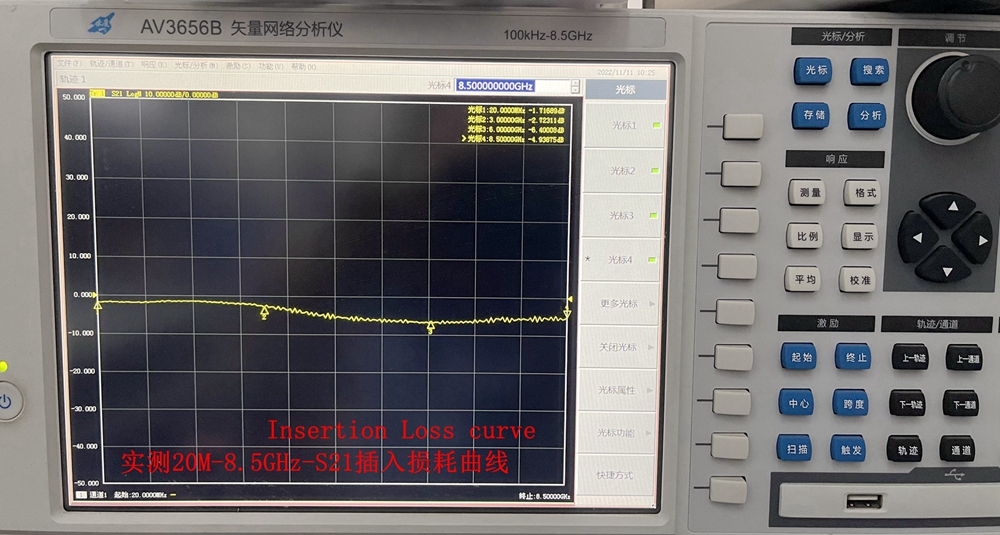

- Insertion loss and isolation: refer to S21 curve for details

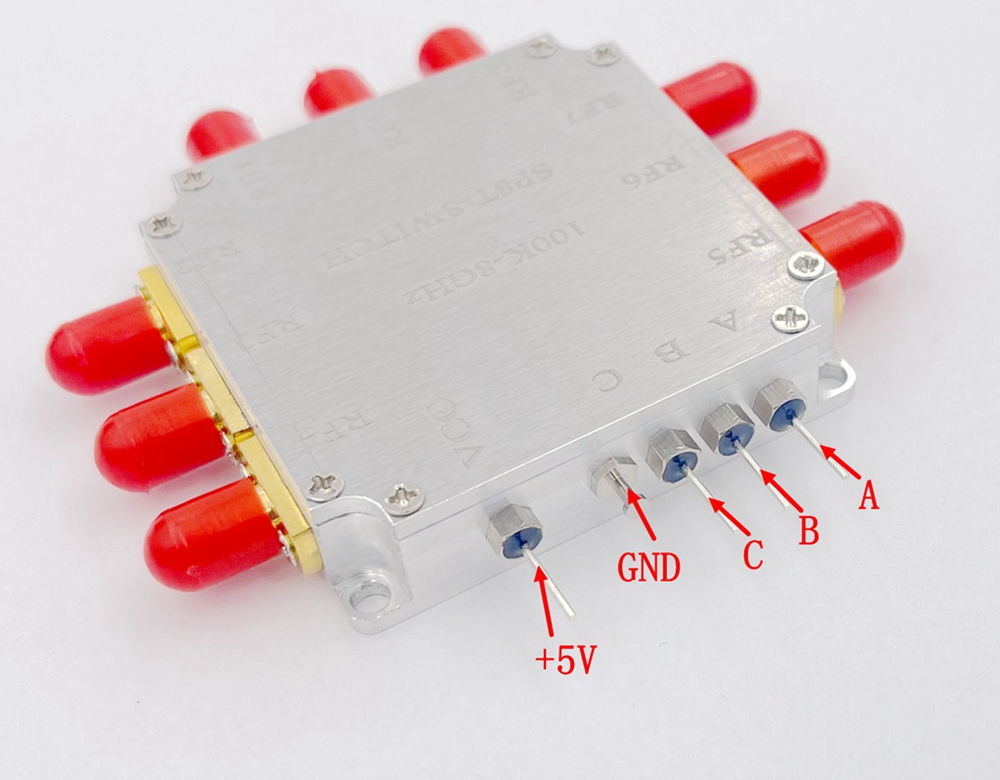

- The control interface: +5V, GND and A/B/C control cable

Package Included:
- 1 x SP8T Switch
