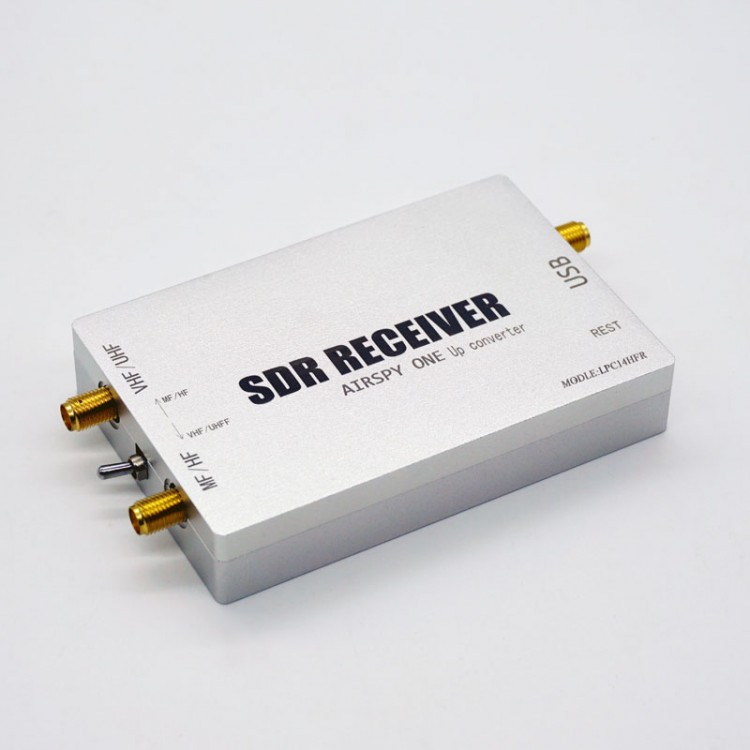

100KHz-1800MHz SDR Receiver SDR Radio For AIRSPY ONE Up Converter With Ordinary Suction Cup Antenna
Features:
1. For NXP chip LPC4370 used as the core processor with superior performance
2. Perfect support SDR# runs smoothly at full rate, with good gain and clean spectrum
3. The reception quality is super good, which can be used as a good VHF/UHF wireless transmission test tool
4. Rich in extension, suitable as a module for spectrum detection
5. 4-layer board design, in line with EMC standards
6. Imported components and radio frequency plates are used to ensure product quality
7. The size and hole position are the same as those for Raspberry Pi 4th generation, and can be installed together to make a portable receiver
8. Connect to a computer through control for SDRSHARP, which can be used as a high-quality radio
Technical Specifications:
- 100KHz-1800MHz continuous receiving range, no interval (for AIRSY ONE Up Converter)
- 3.5dB NF between 42 and 1002 MHz
- Tracking RF filter
- 35dBm IIP3 RF front end
- 12-bit ADC at 20 MSPS (80dB dynamic range, 64dB signal-to-noise ratio, 10.4 ENOB)
- 10MSPS IQ output
- Experimental 2.5MSPS IQ output for low-power devices (for Raspberry Pi, Odroid, etc.)
- Customized applications up to 80 MSPS
- For Cortex M4F up to 204MHz, supports multi-core (dual M0)
- 1.5 ppm high precision, low phase noise clock
- One RTC clock (used for packet time st a m ping)
- External clock input (10 MHz to 100 MHz via MCX connector)-ideal for phase coherent radios
- 10MHz panoramic spectrum view
- IQ or Real, 16-bit fixed or 32-bit floating point output stream
- No IQ imbalance, DC offset or 1/F noise in the center of the spectrum
- Expansion port: 16 x SGPIO
- 1 x RF input (SMA)
- 1 x RF output (loop through, U-FL)
- 2 high-speed ADC inputs (up to 80 MSPS, U-FL)
- 4.5v software switching bias tee, power supply for LNA and up/down converter
- No need to drive! 100% plug and play. For Windows Vista, Seven, 8 and 8.1
Package Included:
- 1 x Set of SDR Receiver
