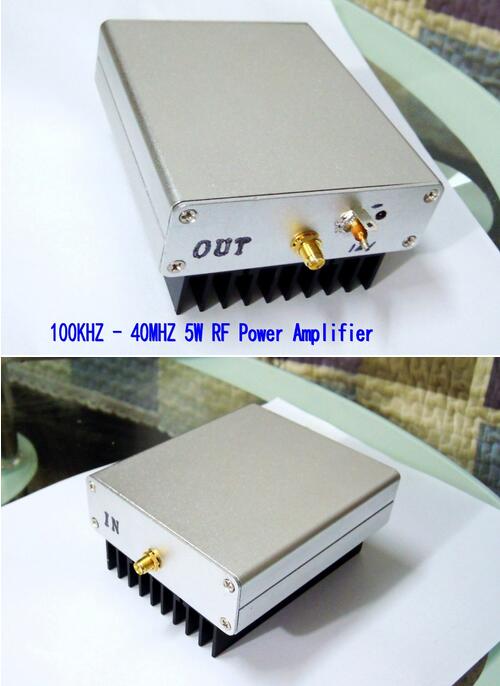

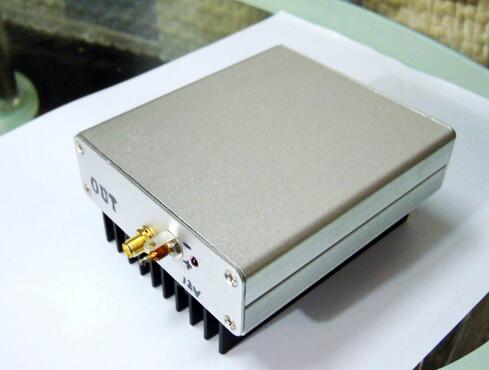

100kHz-40MHz 1A 5W Long Wave AM High Frequency RF Power Amplifier
Features:This RF amplifier is a linear power amplifier, with a distortion is small, wide frequency range of features, can apply to various forms of signal amplification. Such as tpms transmission, wireless charging and other communication or remote control, etc. as the last-stage power amplifier to enhance the transmission power, increase the transmission distance, can also be used as a driving amplifier to promote the final high-power amplifier. This long wave medium wave, high-frequency amplifier in colleges and universities, research institutes and radio enthusiasts hands can be applied.
Amplifier main parameters:
- Amplifier frequency of 100kHz-40MHz
- Single power supply voltage 12-15V, current 1A
- Amplifier gain of 37dB. If you need other gain please contact, the default 37dB.
- Input 1mW (0dBm), the output power 4W, the working voltage is 12v. When the working voltage to 15v, the output power 6W
- Impedance of 50 ohms
- Output harmonic value -18dBc (at maximum output power) Typical
- Input and output connectors SMA (female)
- Dimensions 103 × 90 × 50mm
Package Contents:
- 1 x 100kHz - 40MHz 5W long-wave / AM / high-frequency RF power amplifier
