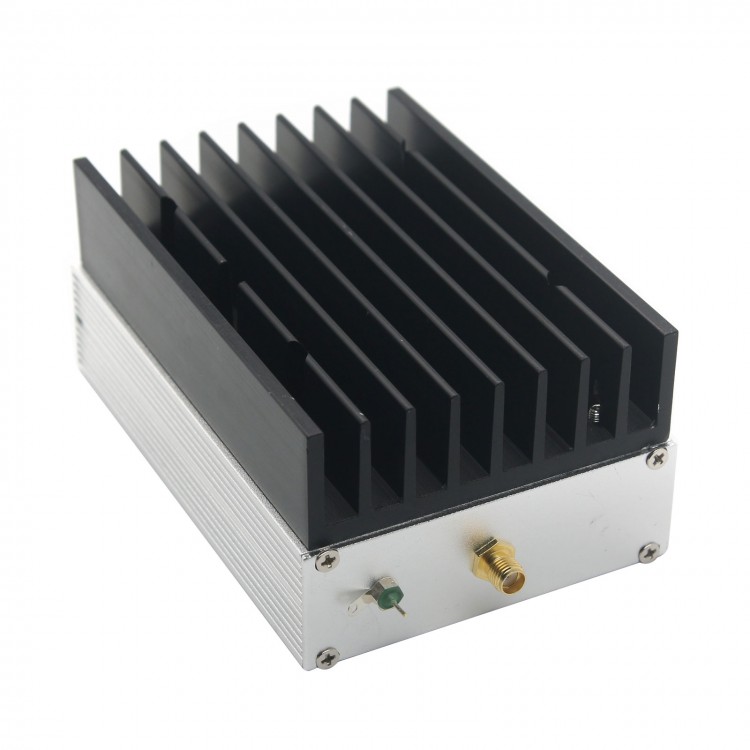

100KHz-70MHz 47dB 5W RF Power Amplifier Linear Power Amplifier RF Power Amp for Signal Amplification
Description:
It is a linear power amplifier. The amplifier module has a high gain of 47dB, small distortion and ultra-wide frequency range. Therefore, it is suitable for all forms of signal amplification. For example, it can be used for TPMS transmission, wireless charging and remote control as the final power amplifier to enhance the transmission power and increase the transmission distance. In addition, it can also be used as a driver amplifier to push the final high-power amplifier. This long-wave, medium-wave, and high-frequency amplifier is suitable for universities, research institutes and radio enthusiasts.
Specifications:
- Operating frequency: 100KHz-70MHz (70MHz)
- Single power supply: 12-15V and 0.9A
- Amplifier gain: 47dB by default. If you need other gains, please contact us
- Input 0.1mW (-10dBm), output power 4W and operating voltage 12V. When the operating voltage reaches 15V, the output power is 6W
- Impedance: 50Ω
- Output harmonic value: -18dBc (at maximum output power) typical
- Input and output connectors: SMA female
- Dimensions 110 x 75 x 50mm/4.3 x 3 x 2" (excluding the sizes of input and output SMA connectors and power connectors)
Package Included:
- 1 x RF Power Amplifier
Wiring:
