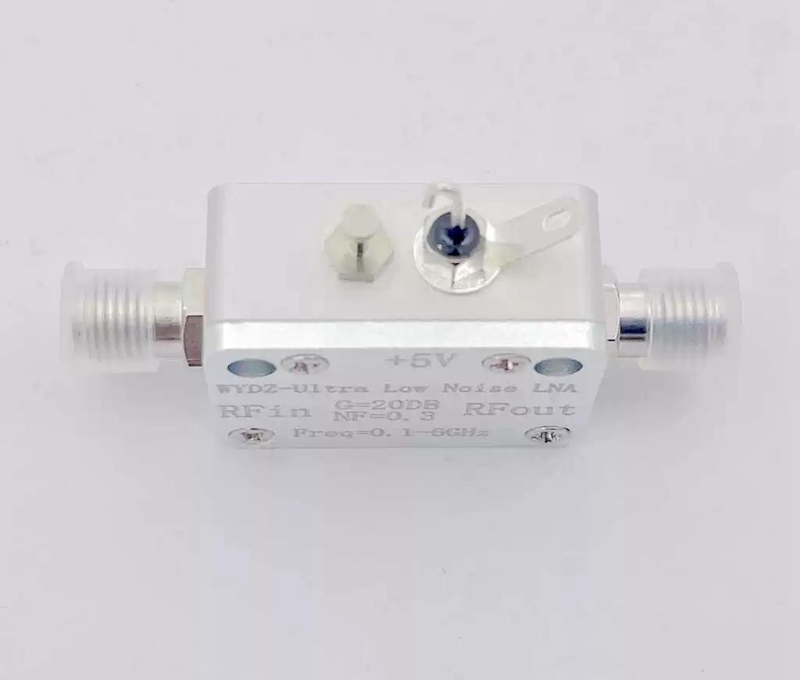

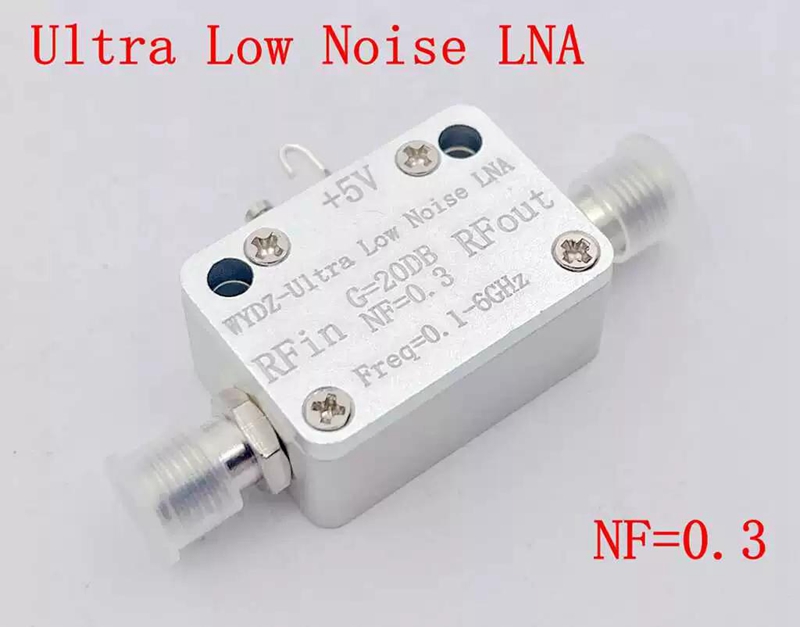

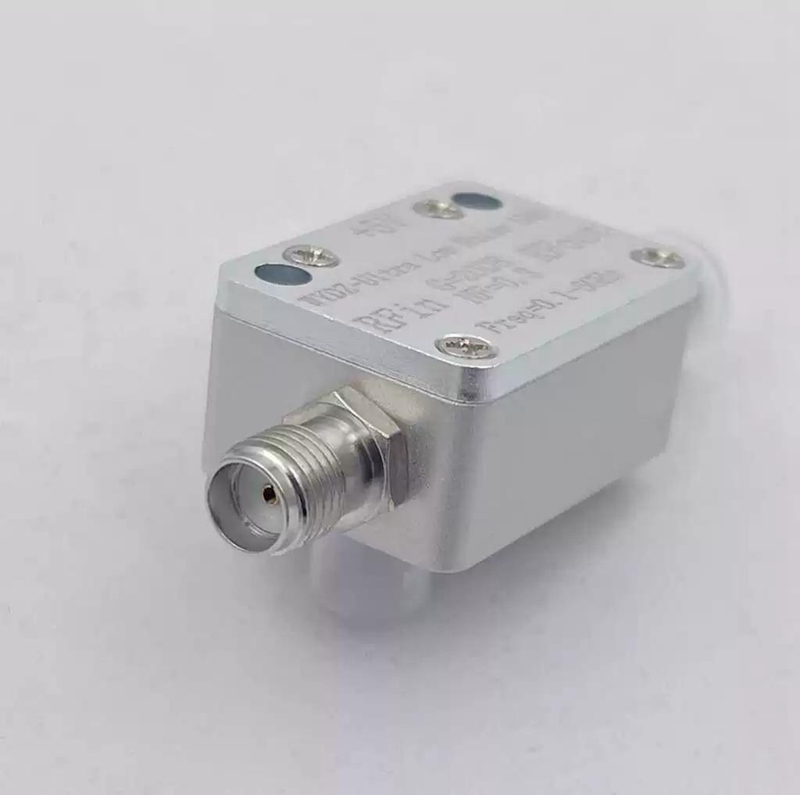

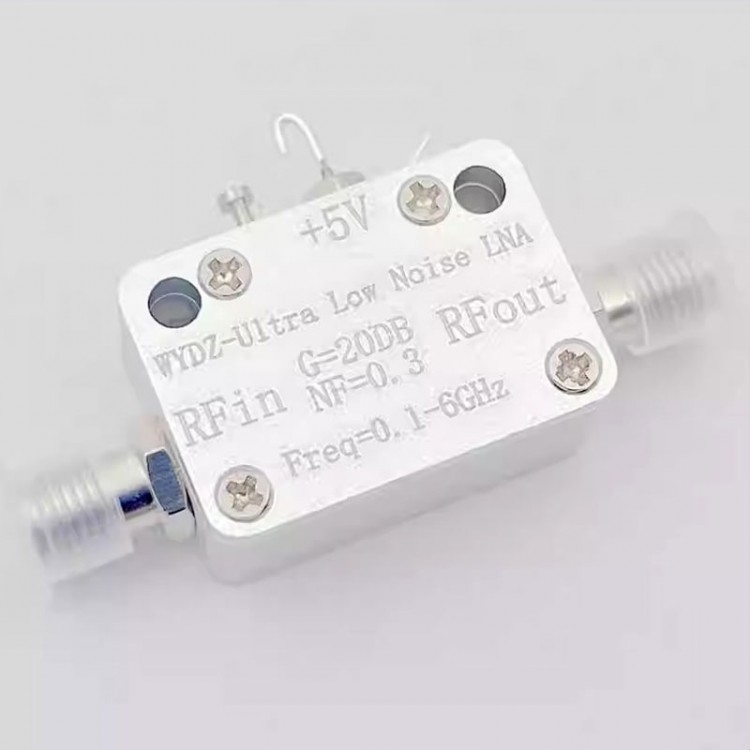

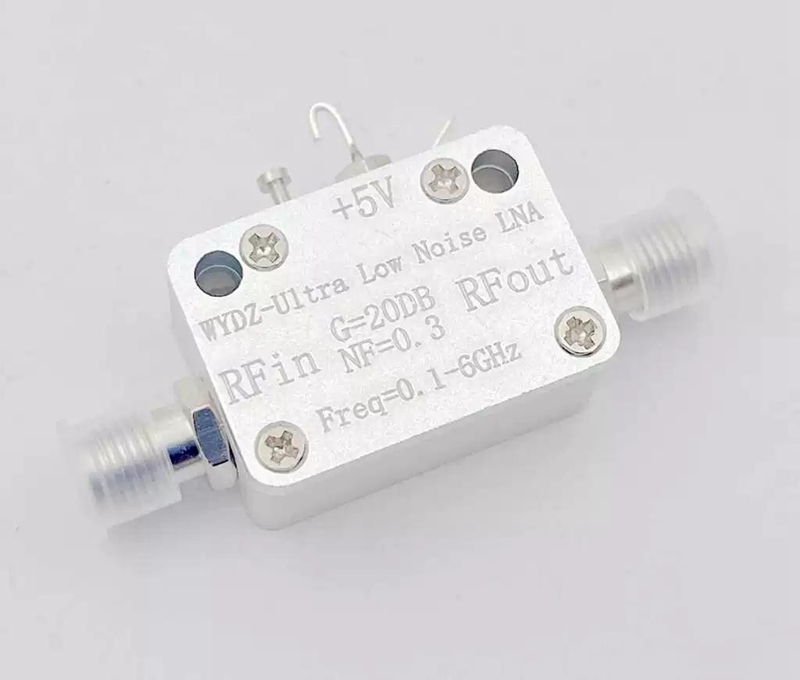

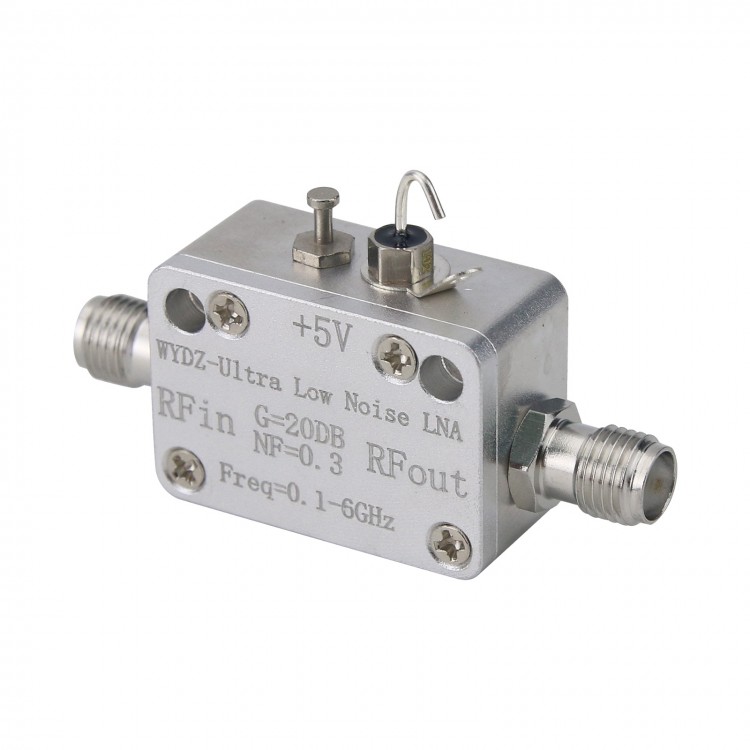

100M-6000M Ultra Wideband Low Phase Noise Amplifier 20dB LNA RF Accessory with SMA Female Connector
Description:
- Ultra-wideband low-phase noise amplifier, full band of 100M-6000M, noise coefficient 0.3 at 2GHz, GdB gain =20dB at 2GHz, can be used as the input to the broadband receiver, or as the driver level of the mixer base vibration signal.
Specification:
- Working frequency: 100M - 6000M
- Working voltage: 5V/70mA
- Gain: 20dB at 2000M

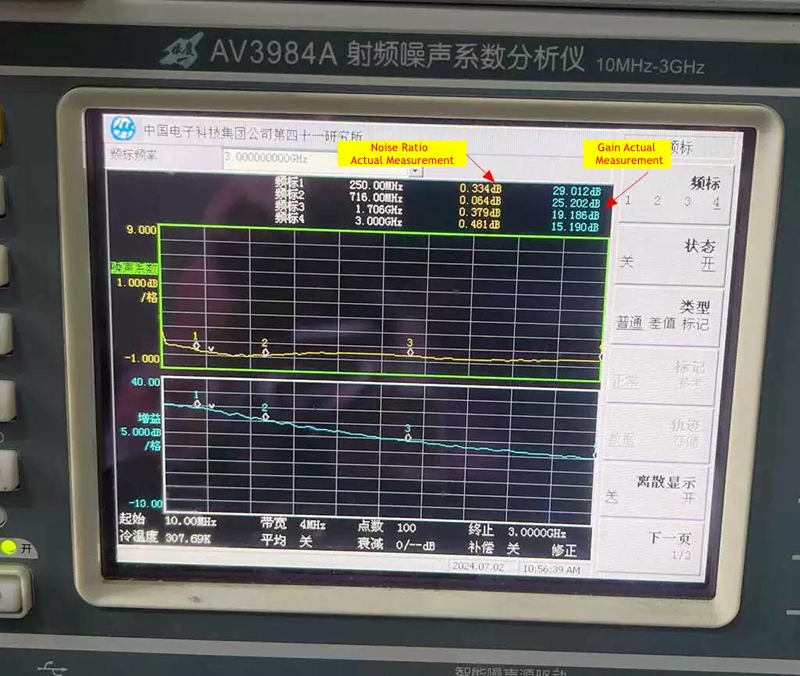

- NF: 0.3dB at 2000M
- P1Db: > 20dBm
- Size: 26 x 18 x 12mm (excluding the connector length)
- Input and output impedance: 50ohms
- Connector: 3.5mm, SMA female connector
Package Included:
- 1 x Low Noise Amplifier
