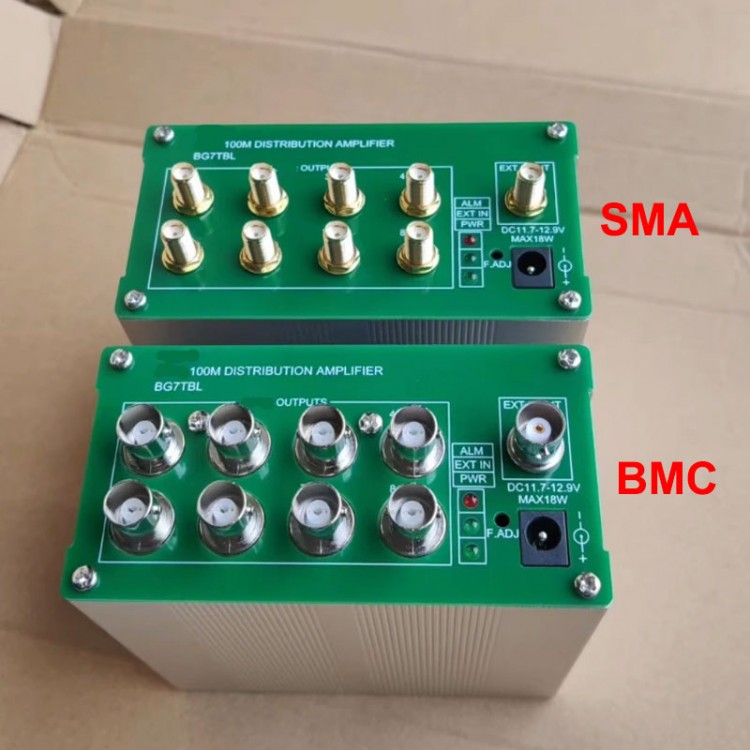

100M OCXO for 0.1Vpp-5Vpp Frequency Divider Distribution Amplifier 15dBm Clock Distributor with 8-Channel Output

Availability: In stock, usually dispatched in 1 business day

  • Price:$70.95
  • Price in reward points: 710 Reward Points: 7
  • Quantity 3+ units 10+ units 30+ units 50+ units More
    Price /Unit $69.53 $68.11 $65.98 $63.15 Contact US
Quantity:

100M OCXO for 0.1Vpp-5Vpp Frequency Divider Distribution Amplifier 15dBm Clock Distributor with 8-Channel Output

Specification:

- Power supply: DC11.7 - 12.9V; max: 12W
- Input: 100M, 0.1Vpp - 5Vpp
- Output: 8 port more than 1Vrms (13dBm); typ.15dBm
- Harmonic wave: less than 40dB
- Indicator:
  PWR: power indicator
  EXT 100M: external 100M output indicator
  ERROR: light on, without output (there is something wrong with the internal OCXO)

FAQ:
Q: What is this?
A: This is a frequency distribution amplifier and a OCXO frequency standard. It can input external signals and then output 8-port signals.

Q: What is the main purpose?
A: For example, you have a 100M frequency reference and you have to provide a reference for 5 instruments separately. In this case, you can use this amplifier.

Q: What does the 3 indicators do?
A: PWR: the power indicator. As long as the power is connected, the light will be on, used to check whether the power supply part is good. EXT IN: this light is on, indicating that the output is an external input signal. ALM: When this light is on, it indicates no signal output or equipment failure. 3 seconds of power-on and 3 seconds of power-off are not counted.

Q: What is the use of OCXO?
A: It can be used as clock source. When there is no external input, internal OCXO is used automatically.

Package Included:
- 1 x OCXO
