100MHz-6GHz High Quality RF Attenuator Module 90DB High Isolation 0.05DB Attenuation Step with SMA Female Connector

Availability: In stock, usually dispatched in 1 business day

  • Price:$94.57
  • Price in reward points: 946 Reward Points: 9
  • Quantity 3+ units 10+ units 30+ units 50+ units More
    Price /Unit $92.68 $90.79 $87.95 $84.17 Contact US
Quantity:

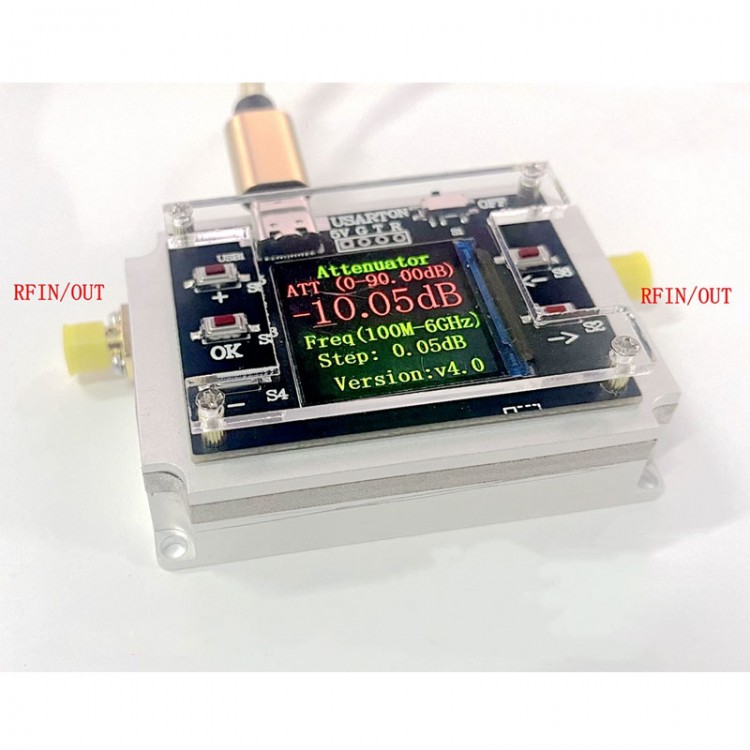

100MHz-6GHz High Quality RF Attenuator Module 90DB High Isolation 0.05DB Attenuation Step with SMA Female Connector

Video Instruction:
- https://pan.baidu.com/s/1xyGwqRbnNsH-oxvEyS3CbQ
- Passwords: WYDZ

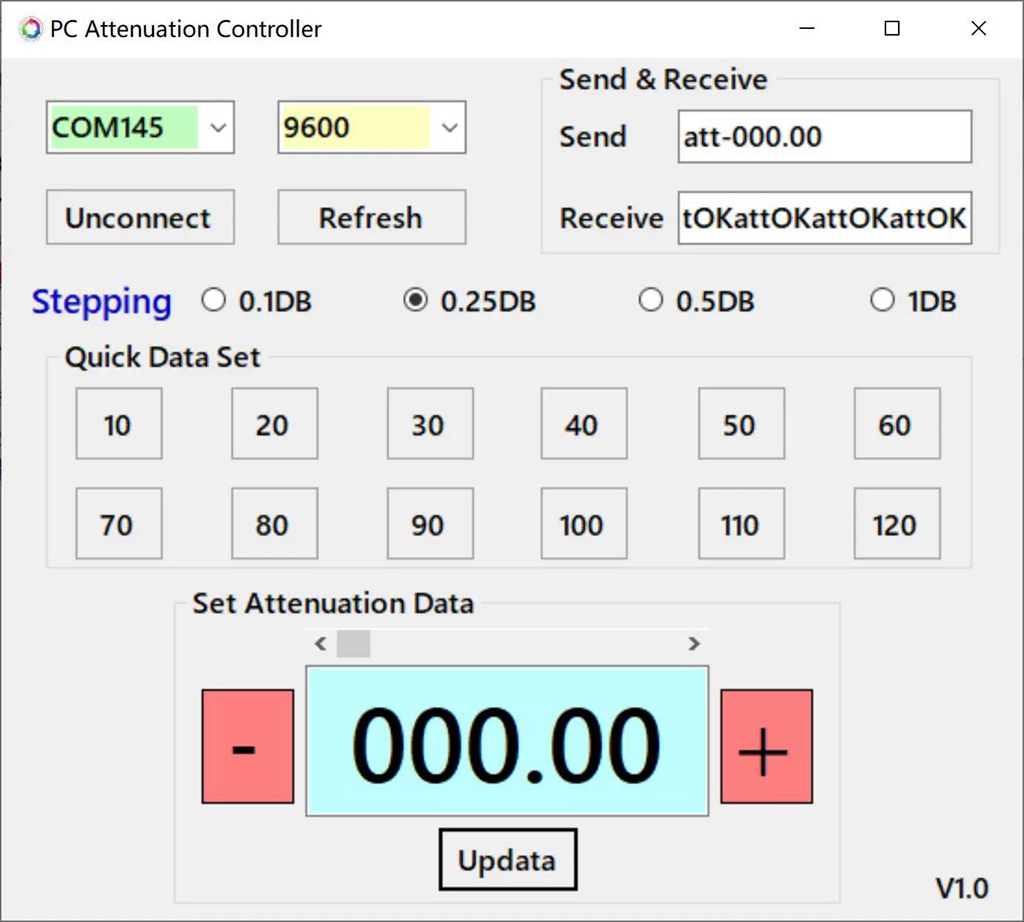

Upper Computer Software + Driver + Using Instruction:
- https://pan.baidu.com/s/125dQs0z_dbBzK4Z0nHeF5g
- Passwords: WYDZ

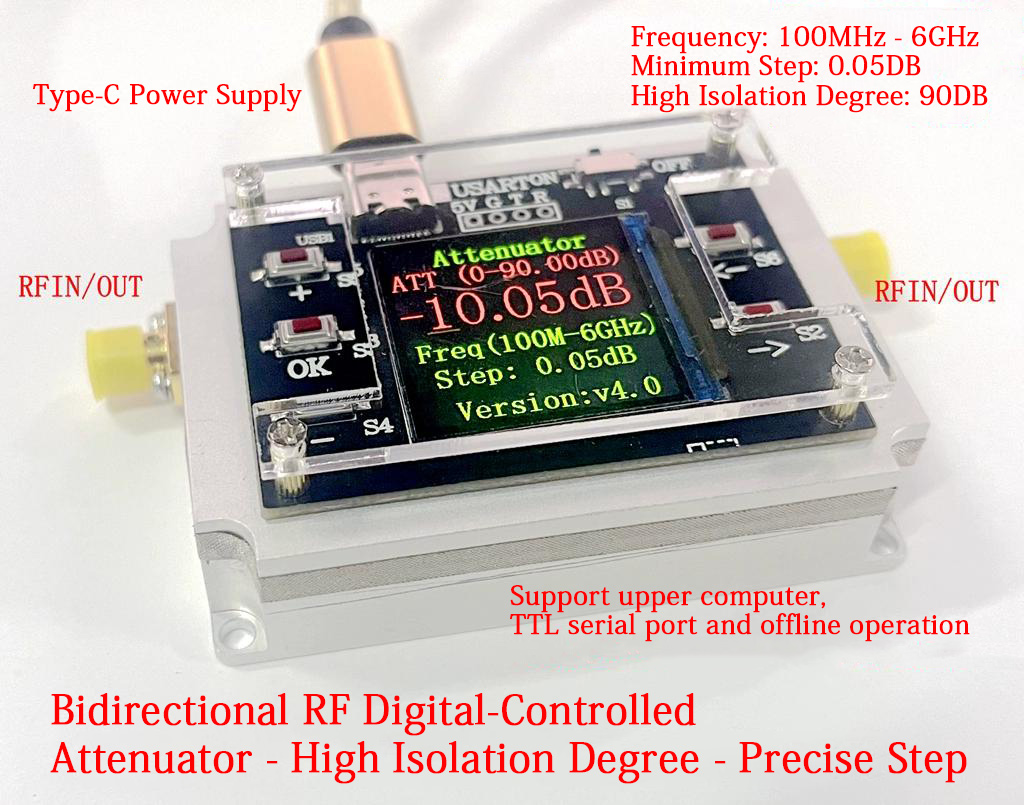

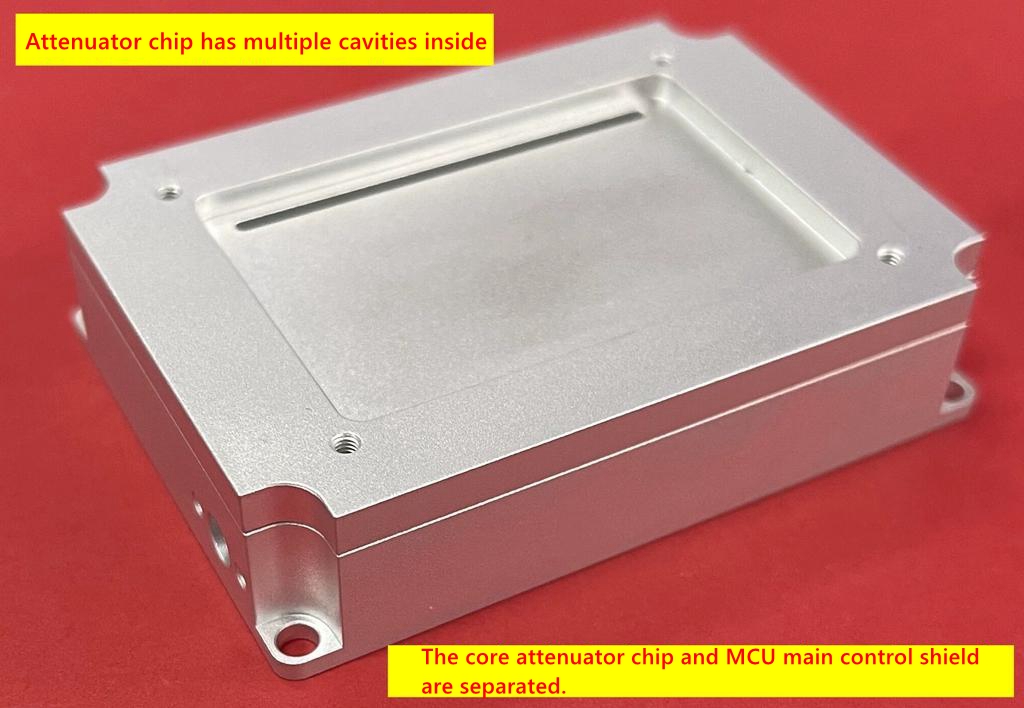

Specification:

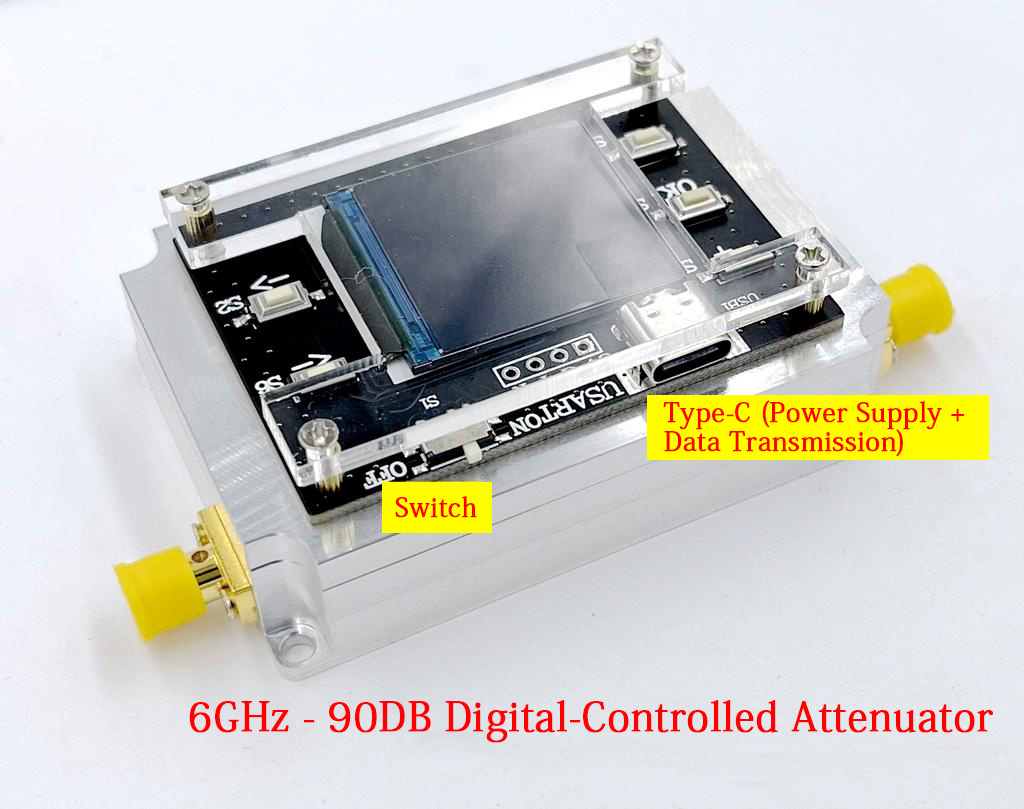

- Power supply voltage: +5V (Type-C power supply)
- Input and output impedance: 50ohm

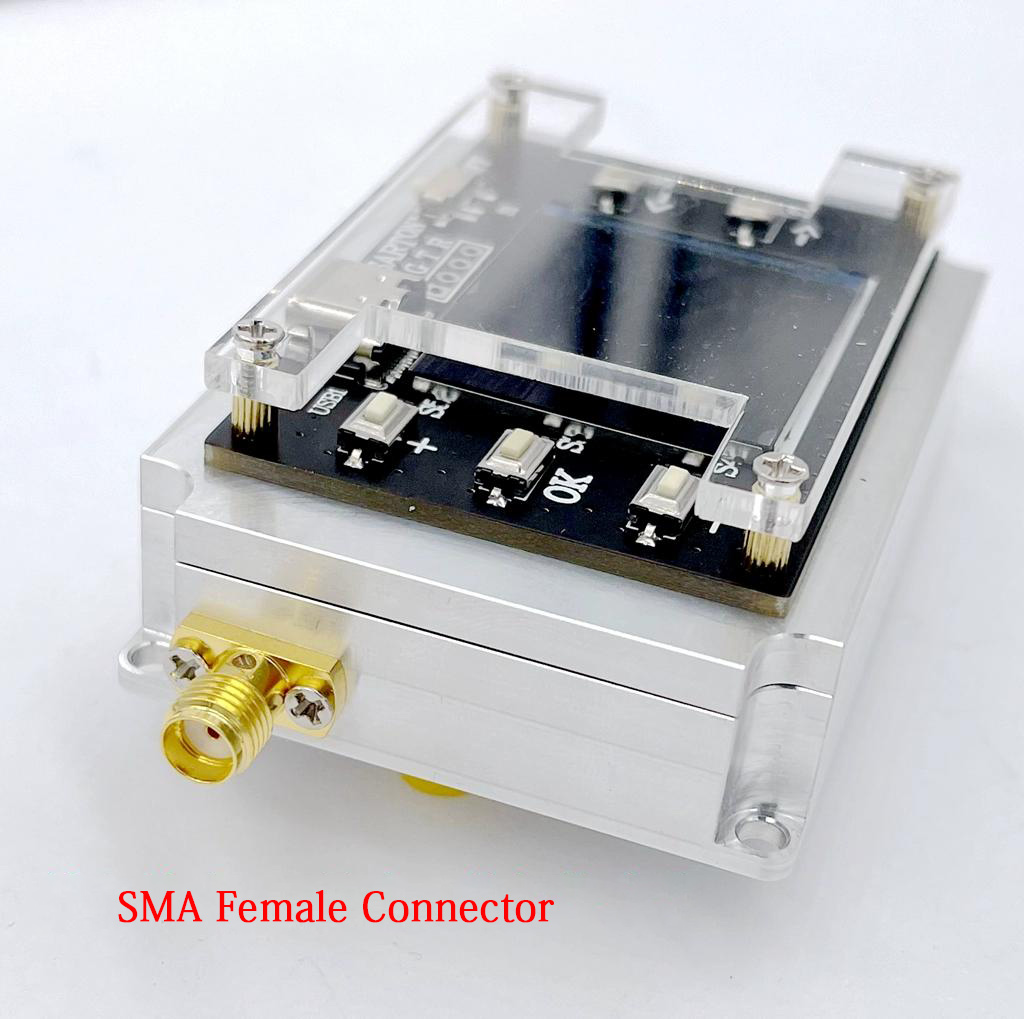

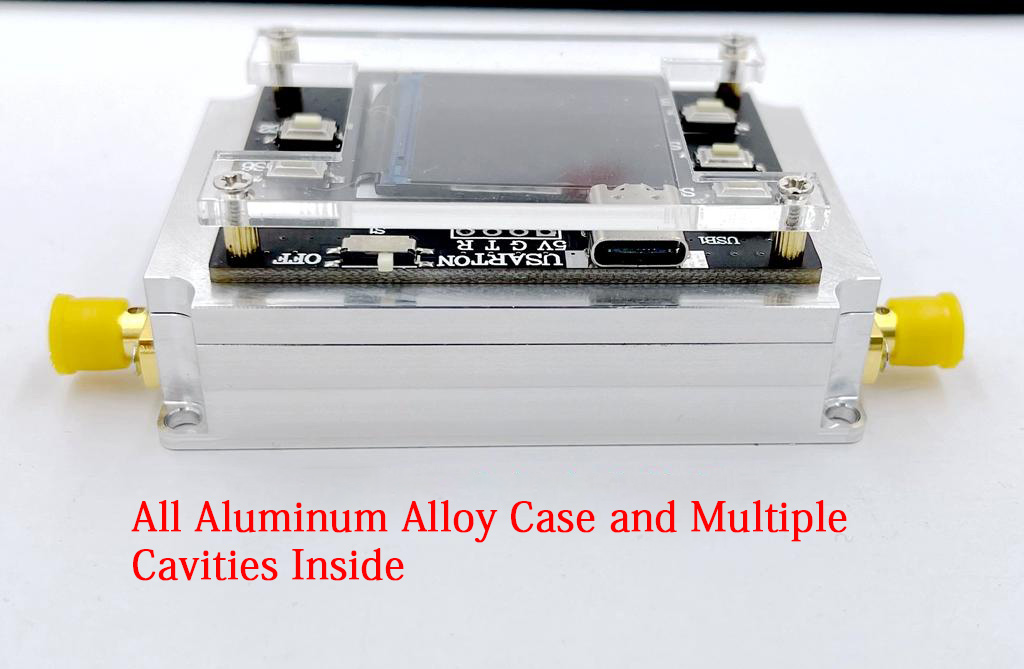

- Output interface: SMA female connector
- Frequency range: 100MHz - 6GHz
- Minimum attenuation step: 0.05
- Maximum input power: 30dBm (1W)
- Product size: L x W x H = 6.8 x 4.8 x 2.5cm

Package Included:

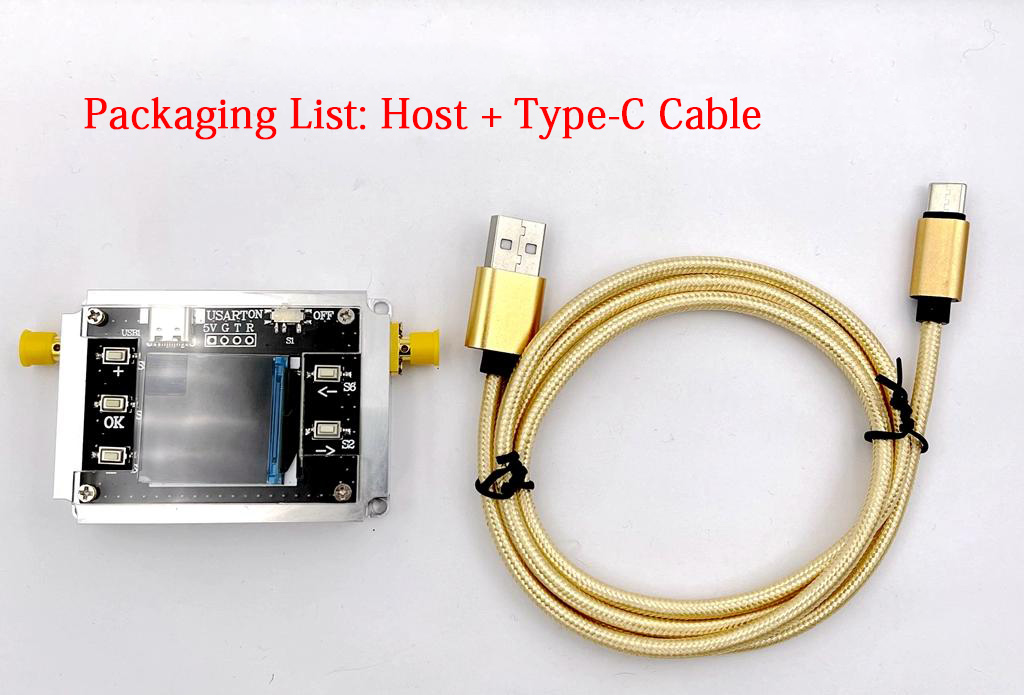

- 1 x Attenuator Module
- 1 x Type-C Cable



Actual Measurement S21 Parameter (VNA)
- When setting the attenuation amount to 0DB, measure the S21 parameter (insertion loss)

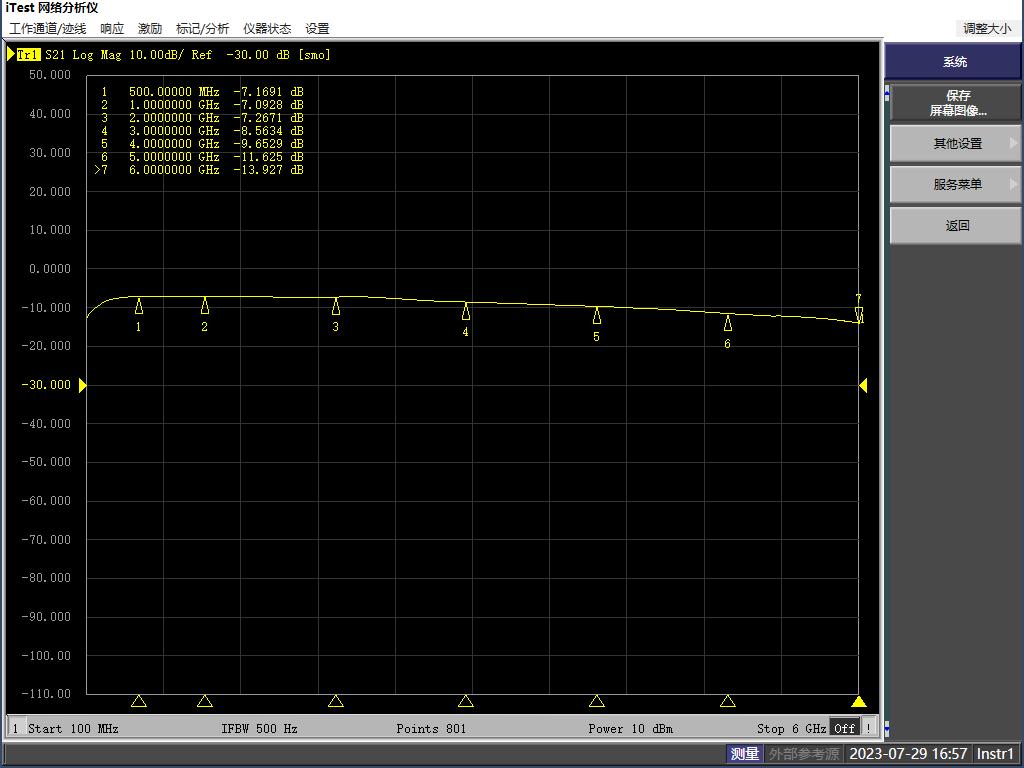

- When setting the attenuation amount to 10DB


- When setting the attenuation amount to 20DB


- When setting the attenuation amount to 30DB


- When setting the attenuation amount to 40DB

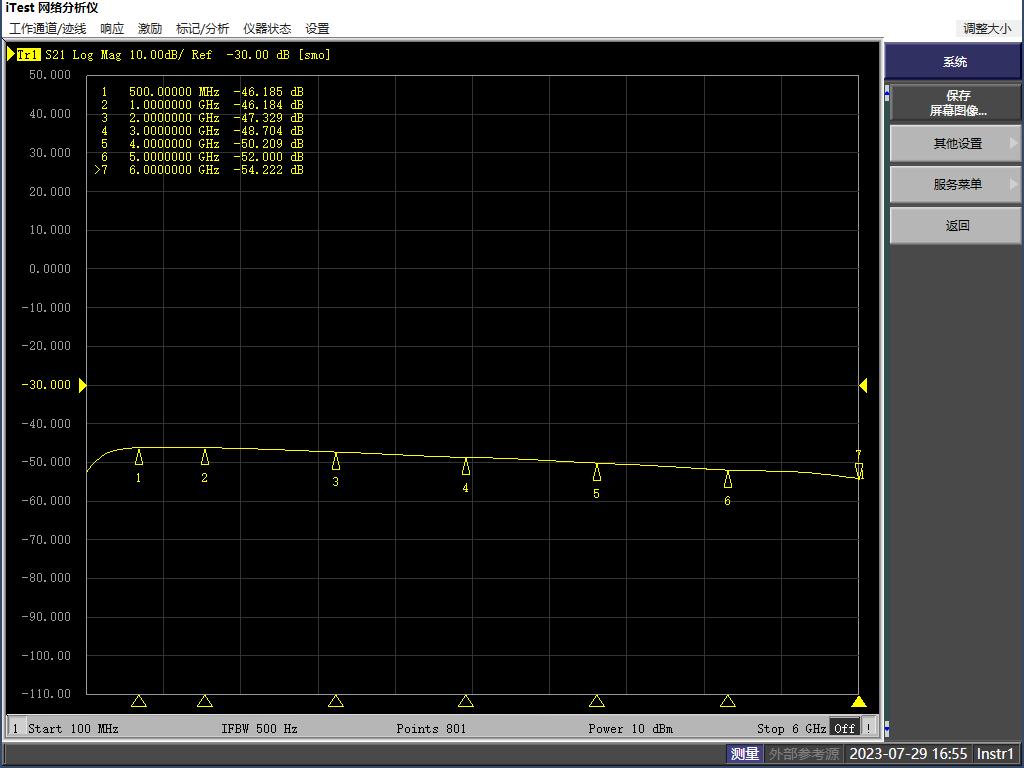

- When setting the attenuation amount to 50DB

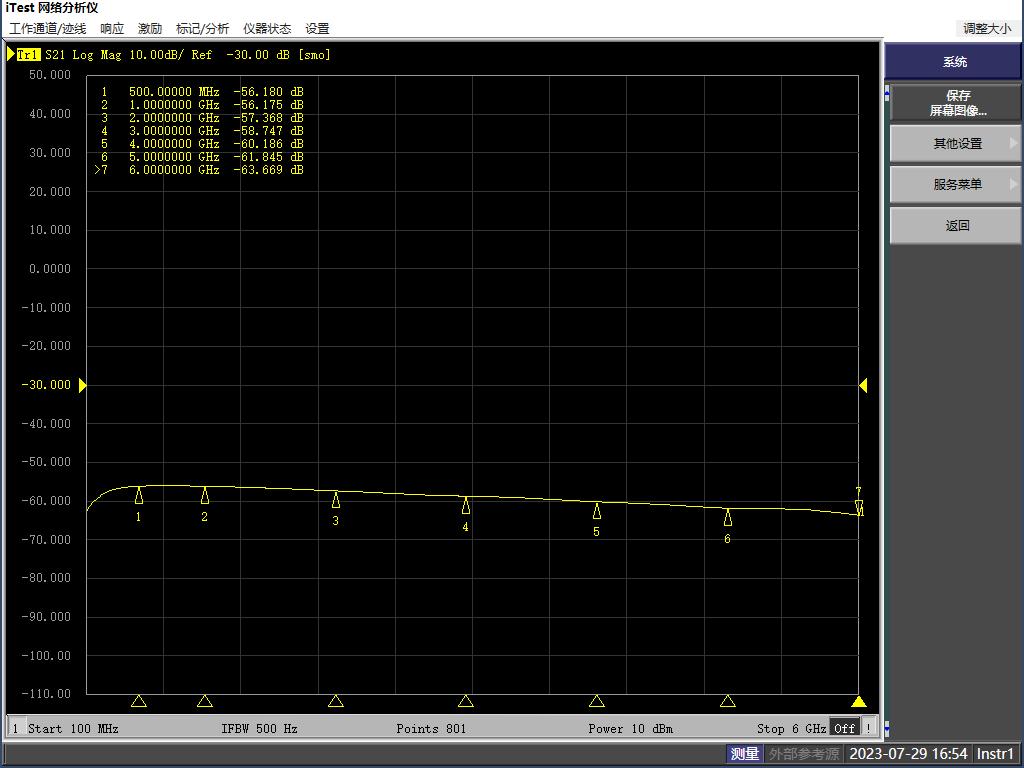

- When setting the attenuation amount to 60DB


- When setting the attenuation amount to 70DB


- When setting the attenuation amount to 80DB

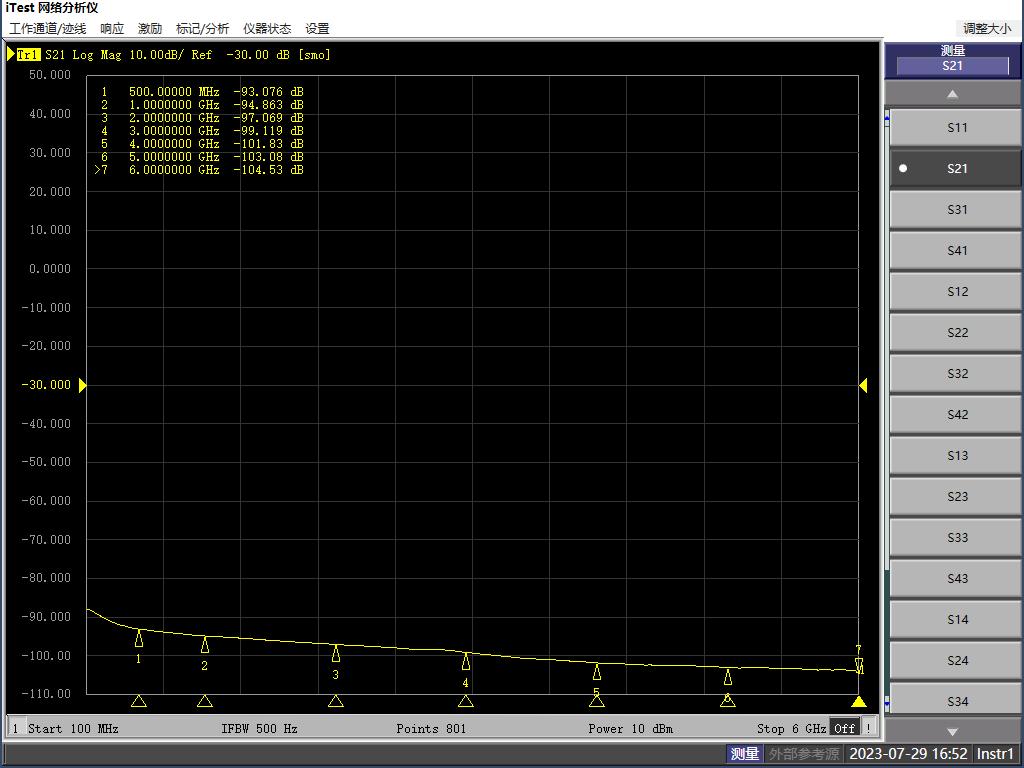

- When setting the attenuation amount to 90DB

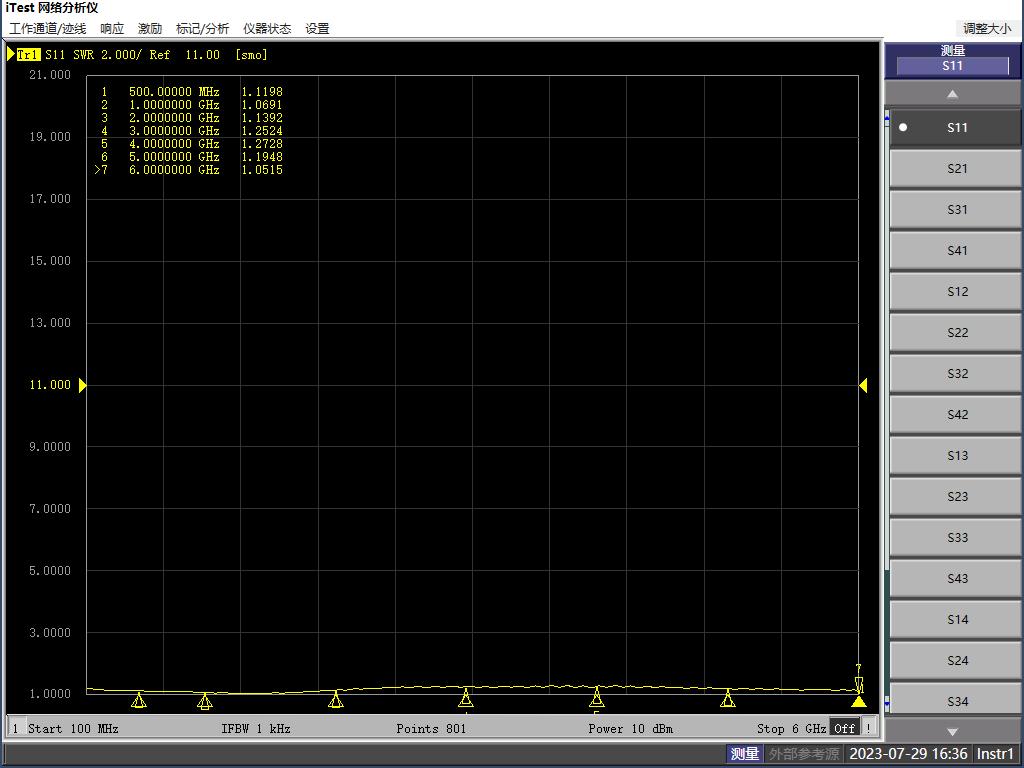

Actual Measurement S11 Parameter (VNA)

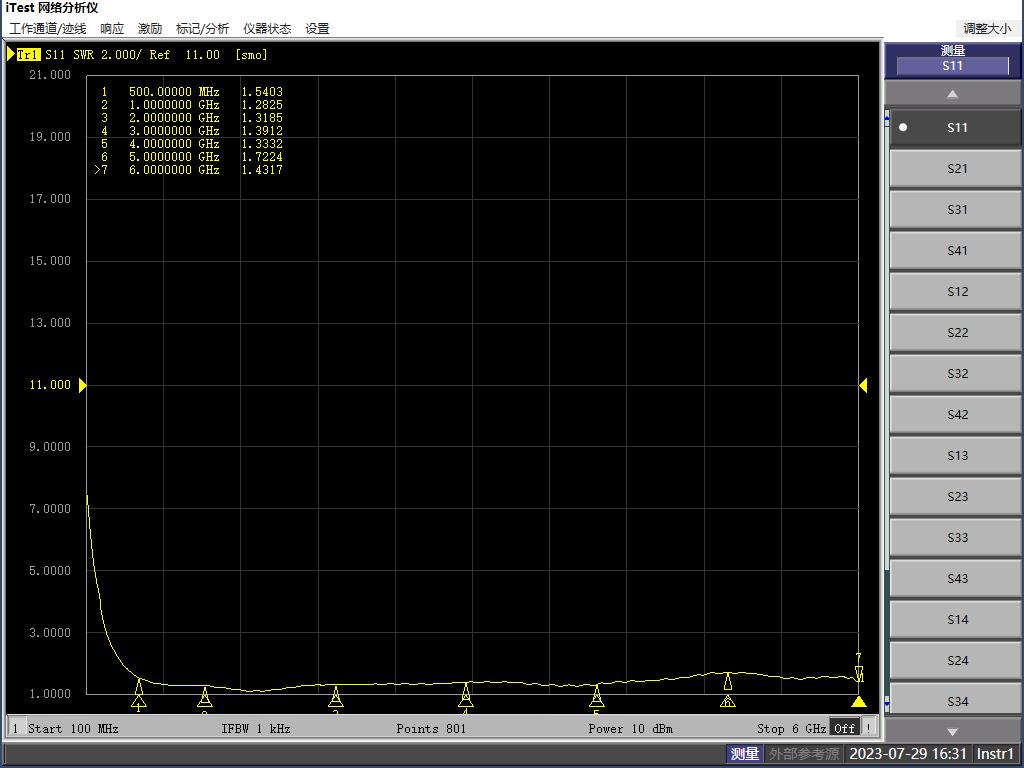

- When setting the attenuation amount to 0DB


- When setting the attenuation amount to 10DB


- When setting the attenuation amount to 20DB


- When setting the attenuation amount to 30DB


- When setting the attenuation amount to 40DB


- When setting the attenuation amount to 50DB


- When setting the attenuation amount to 60DB


- When setting the attenuation amount to 70DB


- When setting the attenuation amount to 80DB


- When setting the attenuation amount to 90DB
