100PCS SC/UPC Connectors FTTH Mechanical Splice Connectors Reusable Telecom Fiber Optic Connectors
Specifications:
- Product name: SC Fiber Optic Connector
- Product type: Embedded/Single Mode
- Average insertion loss: ≤ 0.3dB
- Average return loss: ≥ 50dB
- Applicable cables: 3.0*2.0mm bow-type drop cables, round 3.0*2.0 single-fiber cables, etc.
- Applicable environment: temperature +85°C to -40°C and relative humidity 95%
- Other mechanical properties (reusability, tensile strength, drop test and torsion) are up to standard
- The products have passed tests for appearance changes. No deformation, cracking, relaxation or blistering
Package Included:

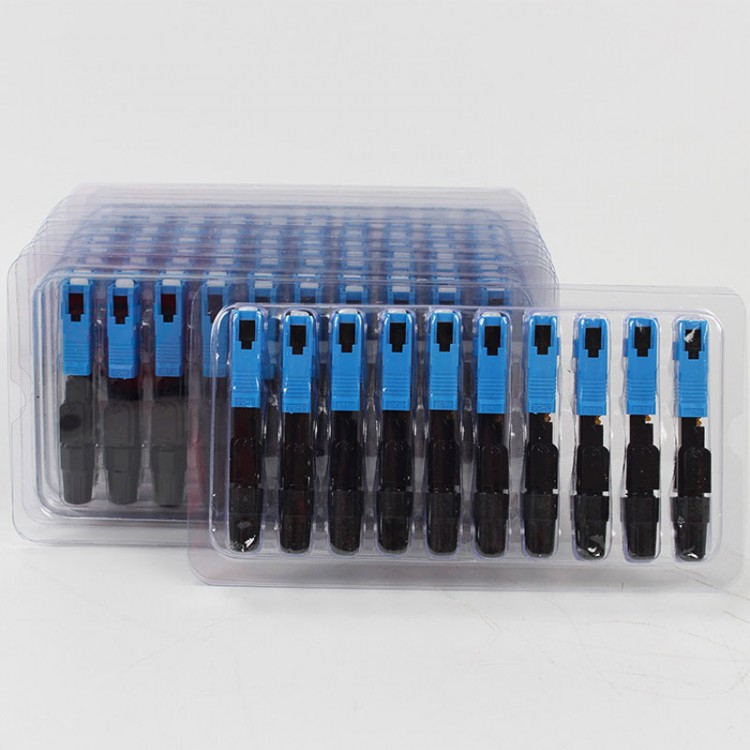

- 100 x Fiber Optic Connectors
- 1 x Instructions
- 1 x Fixed Length Tool
Attention:
- When stripping bow-type drop cables or coatings, you can use a good tool to cut and measure optic fibers, and use the groove of fixed length tool correctly.
- Choose well-made cutting tools to reduce fiber section damage. Please pay attention to the disposal of the cut waste fiber to avoid personal injury.
- Insert optic fibers into the connectors. Pay attention to the operation method and strength to avoid fiber breakage. When assembling, keep the fiber slightly bent before locking.
- Pay attention to dust at the construction site, because too much dust may affect communication data.
