| Quantity | 3+ units | 10+ units | 30+ units | 50+ units | More |
|---|---|---|---|---|---|
| Price /Unit | $22.79 | $22.33 | $21.63 | $20.70 | Contact US |

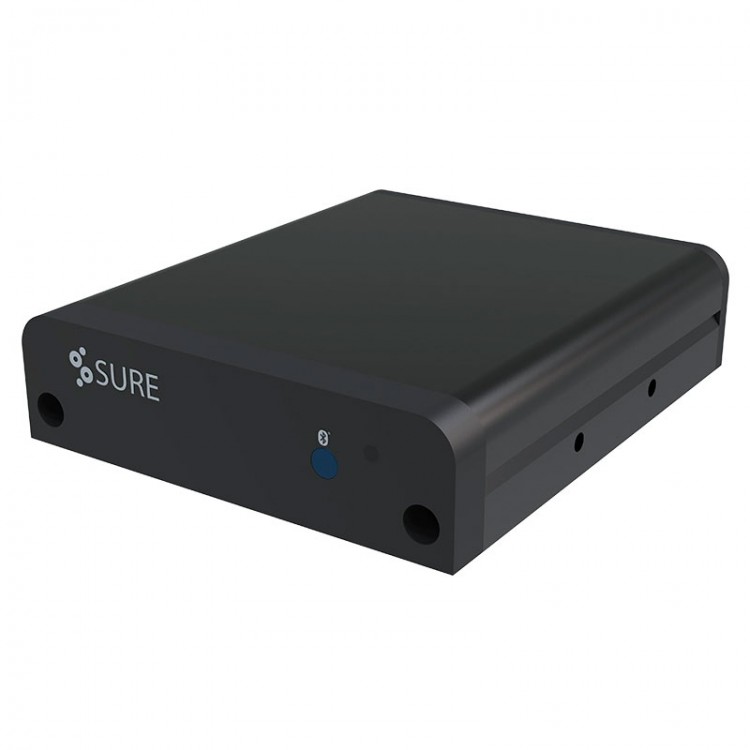

100W+100W Mini Bluetooth5.0 Digital Power Amplifier TDA7498 HiFi Dual Channel High Power Audio Amplifier
Features:
- Light aluminum alloy case, durable and easy to use
- Onboard Bluetooth5.0 chip with higher performance, faster speed, no delay, strong compatibility and stable connection.
- Low power consumption, long service life.
- It can easily connect all kinds of cellphones, tablet PC and computers with lossless transmission and CD-level pure timbre.
- Maximum output power up to 100W + 100W, which can drive 100W + 100W (6ohm) speakers.
- Support all kinds of music devices
- Strong anti-interference ability and stable signal transmission, support 10 meter accessible long distance transmission
TWS Interconnection (needs two amplifiers):
- Turn on two amplifiers of the same model.
- Select one amplifier, press and hold the black button on the front panel for 3 seconds, and the other amplifier will automatically pair with it to form a stereo combination. (If the pairing is not successful within 15 seconds, the pairing mode will be automatically canceled, and you can try again by pressing the button.)
- If the pairing is successful, the selected channel will be assigned as the left channel, with a blue indicator light flashing slowly, and the other channel as the right channel, with a blue indicator light constantly on.
- Next time you turn on the computer, it will automatically find the pairing amplifier. If you want to cancel the pairing mode, simply select an amplifier and tap the button to cancel pairing.
Specification:
- Power amplifier chip: for ST TDA7498 chip
- Input method: Bluetooth input
- Output power: 2 x 100W
- Output impedance: 4 - 8ohm
- Channel: dual channel 2.0 output
- Frequency response: 20Hz - 20KHz
- Protection characteristics: short-circuit protection, over-heat protection, anti-reverse protection
- Power supply: DC12V - 36V (DC power interface: 5.5 x 2.1mm)
- Product size: 85 x 90 x 25mm
- Product weight: 0.18kg
Package Included:
- 1 x Power Amplifier
- 1 x Output Terminal
