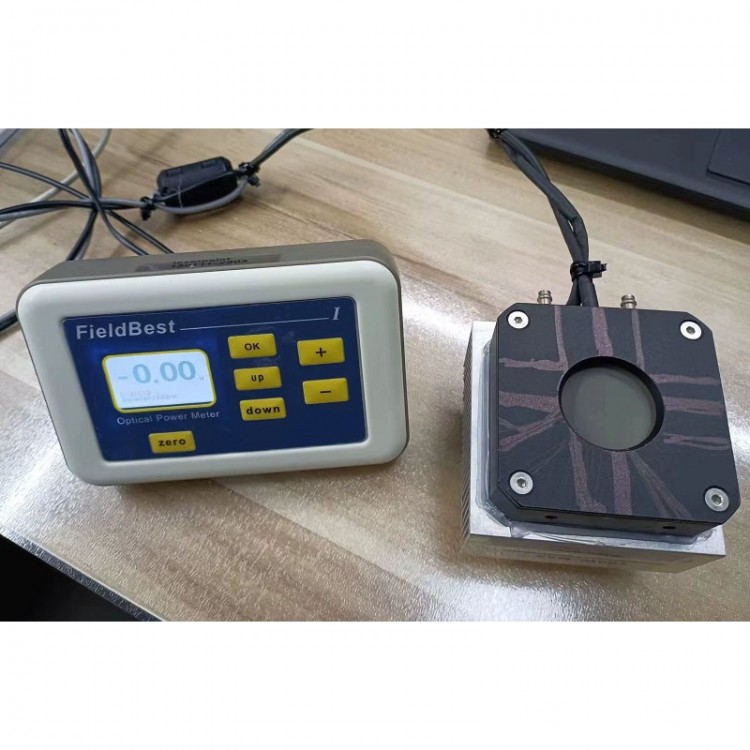

100W Optical Power Meter for LaserPoint CSW-50-D25 Probe with Air Cooling Dissipation Module
Specification:
- Probe: for LaserPoint, model: CSW-50-D25 (note: it is a secondhand probe with intact photosensitive surface)
- Response speed: 1S
- Range: maximum to 100W, with air cooling dissipation module, no need for extra dissipation treatment. (Note: When measuring laser power above 30W, it is necessary to keep the fan on the heat sink running.)
- Wavelength range: 0.19um - 20um
- There is a USB port on the back, which can connect to a computer and record laser power through the controlling software.
- Effective photosensitive diameter of probe: 25mm
- Probe failure threshold: 26kW/cm²
- Main unit size: 80 x 80 x 90mm
- Power supply voltage range: 9V ~ 12V
Package Included:
- 1 x Optical Power Meter
