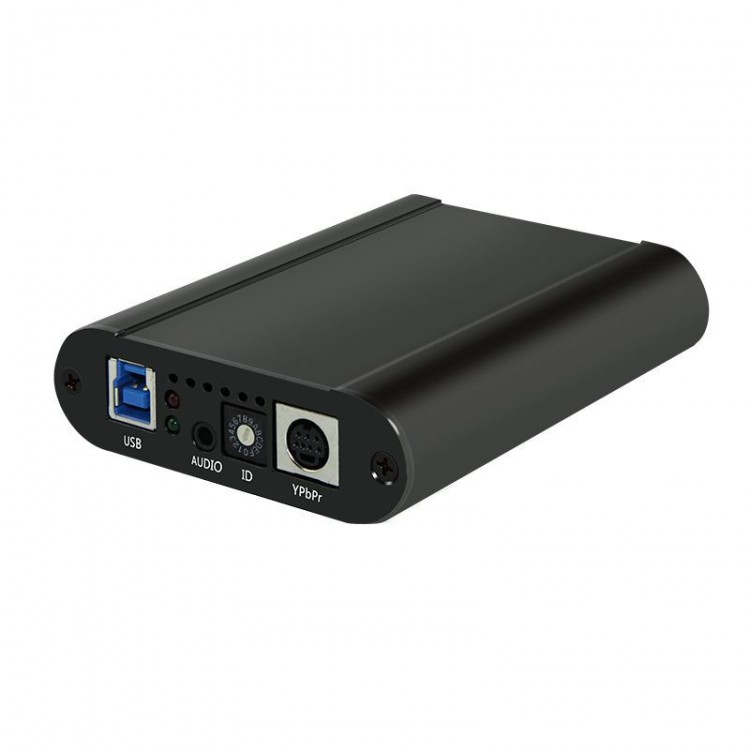

1080P HD Video Acquisition Box USB3.0 HDMI/DVI/SDI Acquisition Card for OBS/vmix Game Live Record

1080P HD Video Acquisition Box USB3.0 HDMI/DVI/SDI Acquisition Card for OBS/vmix Game Live  Record

Description:
1. High-definition live video acquisition box, supports full HD 1080P 60 frame signal acquisition input, 4:2:2 video sampling, outputs lossless YUY color space data. It supports professional camera HD HDMI video signal, and various HDMI HD video equipment. Equipped with built-in on-board FPGA professional processing chip does not occupy CPU resources, it supports output resolution zoom function. Compatible with mainstream live coding software. No need to install drivers, fully compatible with Win7/8/10, LINUX, MAC, Android operating system.
2. Support a variety of main live broadcast software, compatible with QQ, skype instant messaging software, support video conferencing system, compatible with Amcap Potplayer Vmix Wirecast and other collection guide platform, support OBS Xsplit FMLE and other live broadcast software, compatible with mainstream platform live broadcast software.

Specification:
USB: USB3.0 360MB/s (compatible with USB2.0)
Video input: 1xSDI, 1xHDMI, 1xDVI-I/D, 1xVGA, 1xYPbPr, 1x3.5mm audio
Video: 1080P50/60, 1080I50/60, 720P50/60, 576P, 576I, 480P, 480I
Audio: built-in HDM/SDI
Operating system: Windows(7, 8, 8.1, 10), Linux(kernel version 2.6.38 and above), OS X (10.8 and above)
HDMI interface: HDMI 1.4a compliance, support 1080P/60Hz 8-bit (RGB, YUV), SD/HD/3G-SDI, SMPTE-259/274/372/424/425/292 compliance
Video specification: UVC
Audio specification: UVC
Color space: YUY2
Operating system: Windows 7, 8, 8.1, 10, Windows Server 2008 R2 32-bit 64-bit
Compatible software: Windows Media Encoder, Adobe Flash Media Live Encoder, Real Producer Plus, VLC, Wire cast, AMCAP, etc
Compatible development interfaces: DirectShow(Windows), DirectSound(Windows)
Dimensions: 24 x 107 x 81mm
Power consumption: <=3.5W
Working temperature: 0~50℃
Storage temperature: -20~70℃
Humidity: 5%-90%

Features:
-Strong compatibility
-Multiple video interface support
-Easy to carry
-High definition quality
-SDI audio input
-DVI interface supports HDIM, DVI-I and VGA
-Support 1080P, 720P, 576P, 480P

Package List:
1 x Video Acquisition Box
