1080P HD Wireless Video Transmitter Receiver HDMI Wireless Image Transmission 800mW R2TECK DVL1

1080P HD Wireless Video Transmitter Receiver HDMI Wireless Image Transmission 800mW R2TECK DVL1

Description:
The DVL1 is a true wireless HD image transmission system. It reliably delivers excellent HD 1080P 60fps image quality at less than 100ms latency. What's more, the DVL1 boasts the greatest transmission range of all the HD Video Downlink systems - over 3km is achievable with the stock antennas. That's 3x the range for CONNEX!

The DVL1 transmits on the 5.8GHz band using its power adjustable air unit. This means that you can operate everything else in the 2.4GHz range, for example the aircraft, Bluetooth, or Wifi and the signals won't interfere with each other. Note that standard 5.8GHz FPV equipment can interfere, so don't use both systems together. The transmitter comes with a micro HDMI cable ready to plug into your video camera.

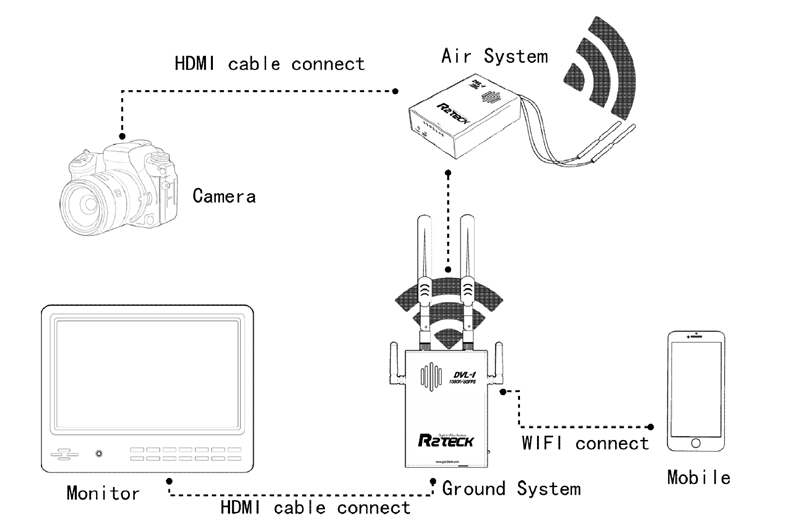

To view the video output you will need a monitor with a HDMI connection - we use the Sky-708 screen. Alternatively, the ground unit receiver has built-in WiFi connectivity. This lets you connect your smartphone to it to view and record the live video stream, and also change settings such as transmitting power and output resolution.

Out of the box the system can be setup in a matter of minutes. Power cables and antennas are included. The transmitter and receiver units run off 2-3S; 12 volts is recommended and the receiver even has a XT60 connection so you can plugin a 3S LiPo in to power it.

Features:
Plug & Fly
The DVL1 is super easy to use, it can be working out of the box in a matter of minutes - with no complicated binding procedures.

Full HD Resolution
Unlike analog systems, which limit you to SD resolution, the digital DVL1 system provides support for up to 1080P 60fps (720p also supported).

Low Latency
Featuring less than 100 ms of latency, the DVL1 let's you can see and control what's happening live.

Great Range
The air unit has an adjustable power output 20mW-800mW. 3KM on the ground (unobstructed, working in 1080P/500mW), more than 4.8KM air to ground (unobstructed, working in 1080P/500mW).

Extremely resilient 5GHz digital link with AFS
The DVL1 uses the 5.1 to 5.8 GHz frequency range to avoid interfering with aircraft control systems, which are usually 2.4 GHz. Automatic Frequency Selection (AFS) will choose the best available channel to be used, and will move seamlessly to an alternative channel on-the-fly if needed.

OSD (On-Screen Display) Overlay
The OSD shows both information about your wireless link status, and with the optional OSD GPS unit available separately, telemetry data such as flight height, distance, satellites, longitude and latitude.

Applications:
- Aerial video production and cinematography
- Real-time HD FPV piloting
- Industrial and commercial inspection
- Surveillance and security
- Real estate assessment and supervision
- Search and rescue
- First responder situation evaluation
- Crowd control
- UAV enthusiast recreation



Specifications:
- Video resolution: 1080P (1920x1080, 60/30fps), support 720P
- Transmission distance: 3km on the ground, more than 4.8km in the air (at 1080P video resolution)
- Transmission power: 20mW-800mW adjustable
- Weight: 70g at the sky end and 200g at the ground end
- Low latency: Less than 100ms
- Video input: HDMI input
- Video output:
* WIFI forwarding (For iPhone/iPad & Android phones)
* HDMI output (supports high-definition digital display devices)
- Support multi-device simultaneous monitoring, built-in OSD function

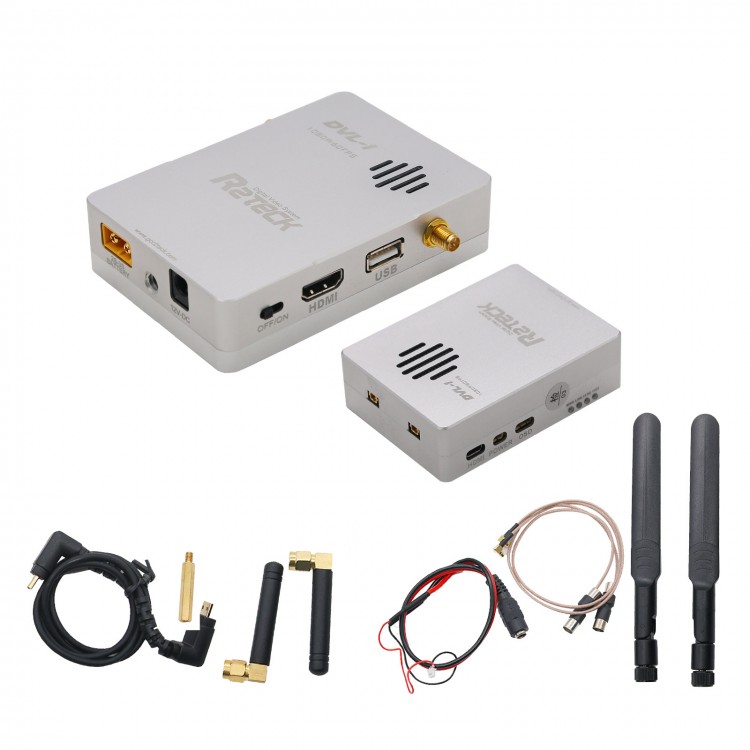

Package Included:
- 1 x Set of Wireless Image Transmission System

Note:
- Battery is not included in the package.
- Other items pictured are not included.
