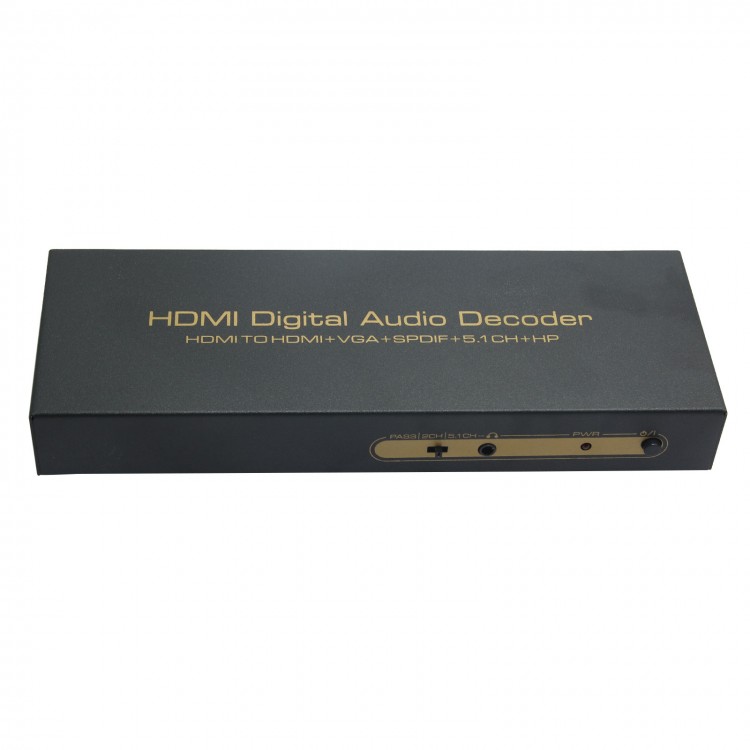

1080P HDMI Digital Audio Decoder HDMI to HDMI VGA SPDIF 5.1CH RCA Digital Multi-Channel Audio Decoder

1080P HDMI Digital Audio Decoder HDMI to HDMI VGA SPDIF 5.1CH RCA Digital Multi-Channel Audio Decoder

Features:
- 1X HDMI input and 1X HDMI output
- 1X VGA analog video sync output,
- 1X SPDIF optical digital audio and 6 channel RCA analog audio output that can connect with the amplifier or the TV directly.
- MHL/HDMI working in dual mode, support audio and video input in MHL mode, and can charge for MHL equipment
- Support CEC and HDCP
- Supports 3 modes of EDID management for audio formats, can switch among built-in EDID (2CH/5.1CH) and external EDID (TV).
- Uses 24 bit/96KHz audio DSP and 24bit /192KHz DAC
- Support digital audio formats: Dolby digital (AC3), DTS, LPCM, automatic identification signal format
- VGA output resolution format with the input format automatically changes
- Headphone amplifier output, can drive the general 3.5mm earphone
- High tone quality, low noise
- DC5V/1A power adapter

Interface:
- SWITCH:Audio EDID mode switch.
- This switch allows users to select the source's audio EDID.
- PASS:HDMI pass mode.
- Switch to PASS mode for the HDMI source to output audio per the EDID of connected TV or AV receiver, supports up to LPCM 7.1 channels.
- 2CH:2CH LPCM mode.
- Switch to 2CH mode for the HDMI source to output LPCM 2 channels audio per the built-in EDID.
- Then HDMI, SPDIF, RCA and headphones output stereo audio.
- 5.1CH:5.1CH bitstream Mode.
- Switch to B5.1CH mode for the HDMI source to output bitstream audio per the built-in EDID.
- Then HDMI, SPDIF and RCA output 5.1CH audio, headphone output from FL and FR channel.

Specification:
- HDMI resolution: up to 1080P/50/60fs (3D 24/30fs)
- MHL input resolution :720P 60Hz/1080P 30Hz/1080P 60Hz (packedpixel mode)
- VGA output resolution:up to 1920 x 1080 60Hz
- Support video color format :24bit/deep color 30bit,36bit
- HDMI Audio Format:DTS-HD/Dolby-TrueHD/LPCM 2/5.1/7.1CH/DTS/Dolby-AC3/DSD
- Digital audio decode format:Dolby Digital (AC3)/DTS/LPCM 2CH
- HDMI Max bandwidth:225MHz
- HDMI Max baud rate:675Gbps
- Input/Output TMDS signal :0.5~1.5Volts p-p(TTL)
- Input/Output DDC signal: 5Volts p-p (TTL)
- DSP sample frequency range: 32~96 KHz
- DSP Bit rate range:16~24 Bit
- Analog output level(1kHz 0dB):1V RMS
- SNR 0dB(CCIR/ARM):≥85dB
- Distortion:≤0.1%
- Frequency response:20Hz~20KHz
- Headphone output power (1kHz 0dB RL=32):20mW
- HDMI input cable distance:≤15m AWG26 HDMI standard cable
- HDMI output cable distance:≤20m AWG26 HDMI standard cable
- Max working current:550mA
- Power adapter format Input: AC 100V~240V 50HZ/60Hz, DC5V/1A
- Operating Temperature range: -10 to +55 degree Centigrade
- Storage Temperature range: -20 to +60 degree Centigrade
- Operating Humidity range :10 to 90%RH (No Condensation)
- Storage Humidity range:5 to 95%RH (No Condensation)
- Case Dimension (L x W x H): 200mm x 76mm x 26mm
- Color: Black

Operating and Connecting:
- Connect one HDMI cable from a DVD/Blu-ray player into input port of decoder.
- Connect one HDMI/VGA cable from TV/Monitor into output port of decoder.
- If you need a digital audio, connect one optical fiber from digital power amplifier into the SPDIF output port of decoder.
- If you need an analog audio, Connect six AV cables from analog power amplifier into the analog audio output ports of decoder, the channel must correspond. If the connected TV or stereo power amplifier, connect the FL/FR two channel only, and switch EDID mode in 2CH.
- If you need to use the headphone output, pls switch EDID mode in 2CH.
- Connect 5V power supply to the decoder and inserted into the power socket.

Package includes:
- 1 x HDMI Digital Audio Decoder
- 1 x US AC Power Adapter
- 1 x Manual
