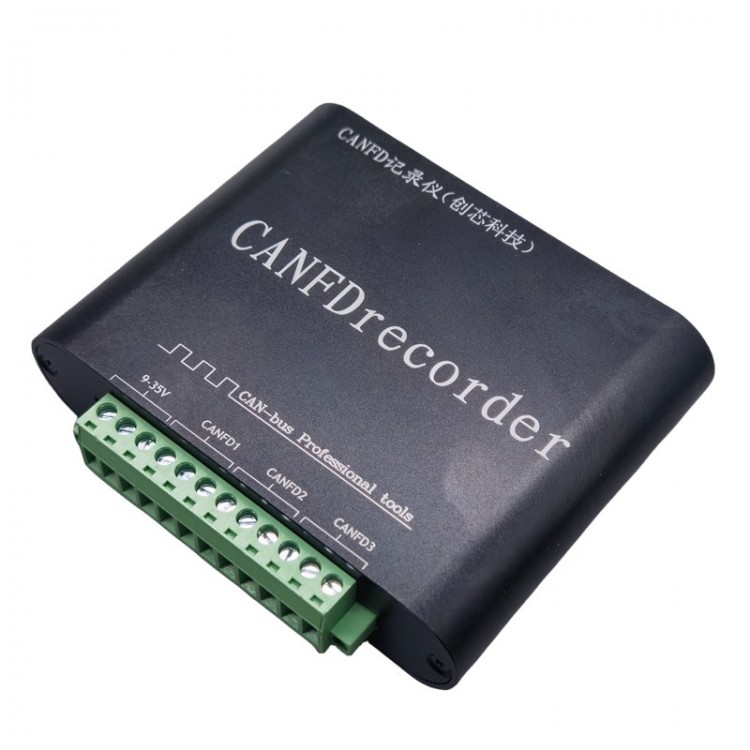

10K-5Mbps 3-Channel CANFD Bus Data Recorder Offline Recording and Playback 90M/s Type-C/USB3.0 High Speed Copy

10K-5Mbps 3-Channel CANFD Bus Data Recorder Offline Recording and Playback 90M/s Type-C/USB3.0 High Speed Copy

Description:
- The CAN bus data logger integrates two independent CAN bus channels that comply with the ISO11898-1/2/3 standard, with the first channel being a high-speed CAN and the second channel being configurable as either a high-speed CAN or a low-speed fault-tolerant CAN. The standard storage medium is a 32GB high-speed TF card (and can support up to 1TB high-speed TF card), which can record CAN message information in CAN2.0A or CAN2.0B format for a long time. In addition, the recorded data can be saved in four storage formats including ASC, CSV, TXT, and CAN, which are compatible with mainstream analysis software and provide great convenience for later in-depth analysis.

Features:
- The CANrecorder recorder comes standard with a 32GB high-speed and large capacity TF memory card, which supports automatic detection of baud rate and acquisition of car VIN code, assisting automotive electronic engineers in data analysis.
- The configuration tool supports up to 64 filtering rules per channel, which can be configured based on the ID. At the same time, black and white lists can be added for recording, supporting channel independent enable filters and filtering modes.
- The intelligent connected vehicle bus three in one testing tool can synchronously monitor and real-time collect high-speed CAN, low-speed fault-tolerant CAN, and single line CAN data for different scenarios.
- Bus recording playback can simulate on-site teaching data, CANrecoder recorder can collect and record bus data in real time, and can send stored data to user devices through the device, accurately simulating on-site application scenarios.
- The CAN protocol fully complies with the CAN2.0B specification and is compatible with CAN2.0A and ISO11898-1/2/3.
- The recorder comes with a real-time clock that accurately records the Beijing time of each frame of data, making it easy to calibrate with clock calibration tools.
- Users can easily configure any baud rate of 5K ~ 1Mbps for the CAN interface, and record error frames. The dip switch can be used to adjust whether the 120 ohm resistor of the interface is enabled.
- Offline recording, no need for PC involvement throughout the process. External DC power supply+rechargeable battery (standard battery can record continuously for 15+hours separately!) configuration, especially suitable for unmanned recording occasions.
- The four supported storage formats of txt/csv/asc/can be directly exported, and are compatible with various mainstream analysis software such as CANalyzer, CANPro, USB_CAN TOOL. Support offline playback of recorded data, accurately restoring the recorded situation.
- Flexible and convenient editable relay function, which can be implemented in 2 channels; Forward the received specific data from another channel after pausing. Unconditional relay can achieve forwarding performance of 9000+ frames per second!
- Wireless cascading enables ultra long distance communication.
- The CANrecorder recorder can simultaneously record 2-channel CAN messages, enabling independent single channel operation for each automotive functional domain and improving the richness of records.
- After rigorous anti vibration testing and harsh industrial field testing, it can easily and stably complete message recording and on-site monitoring for applications such as vehicles, ships, elevators, wind turbines, engineering machinery, coal mines, etc. Stable and reliable performance will be your ideal choice.

Specification:
- CAN/CANFD: 3-channel (support CAN)
- CAN channel number: 3-channel CANFD (backward compatible with high speed CAN)
- Multiplex situation: 3-channel CANFD completely independent/simultaneously acquisition
- Baud rate: 10K - 5Mbps
- Data receiving ability: 3 channels at full load without frame loss at 5M baud rate
- Type-C: support
- USB3.0: support
- TF card copy speed: 90M/s (Type-C/USB3.0)
- Baud rate configuration: profile settings
- File format configuration: profile settings
- Relay and playback function: profile settings
- 120ohms terminal resistance: profile settings
- Power supply method: battery/USB/DC power supply
- Internal clock setting: configuration software one-click setting
- Clock power supply: rechargeable 16650 cylindrical battery + rechargeable button battery
- Cylindrical battery: removable
- Features: support for CANFD, greatly improving the storage/copy speed performance
- Power supply voltage: 9 - 36VDC
- Working temperature: -40℃ to +85℃
- Product size: 95 x 109 x 26mm

Package Included:
- 1 x CANFD Recorder
- 1 x USB Cable
- 1 x TF Card (32G)
- 1 x USB High Speed Card Reader
- 1 x Slotted Screwdriver
