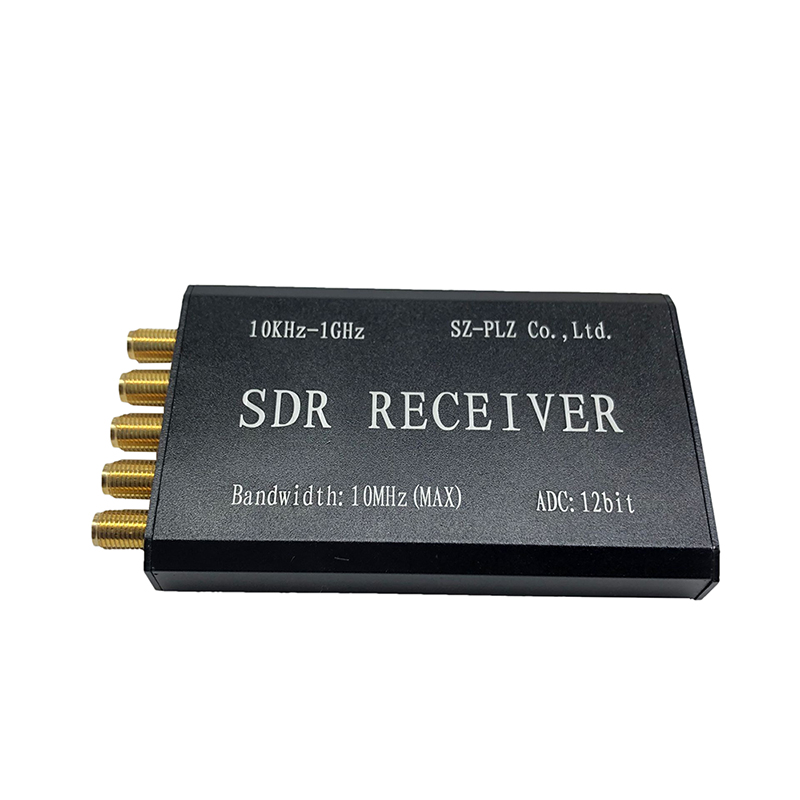

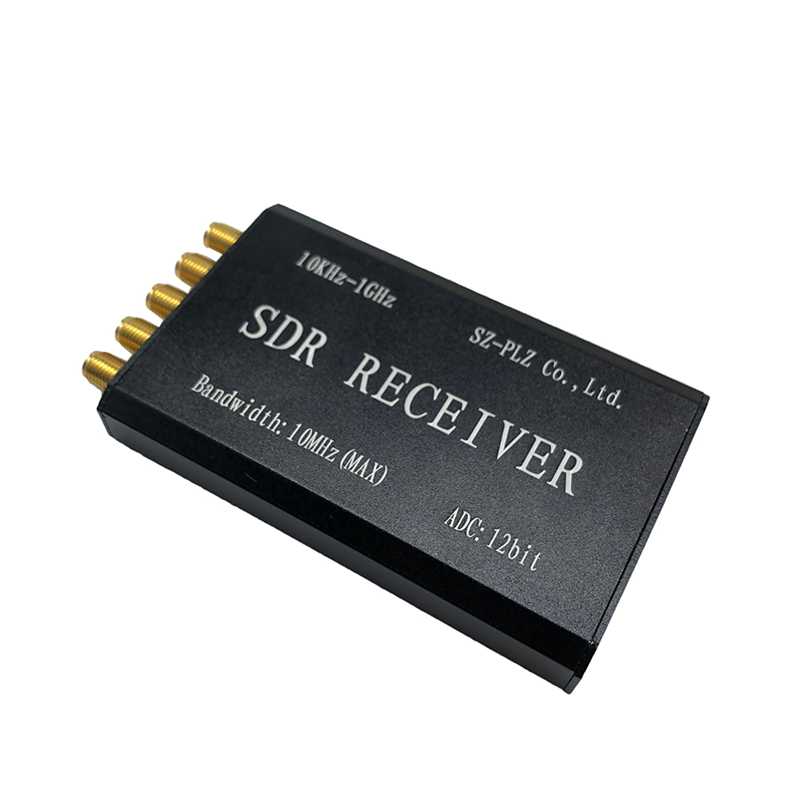

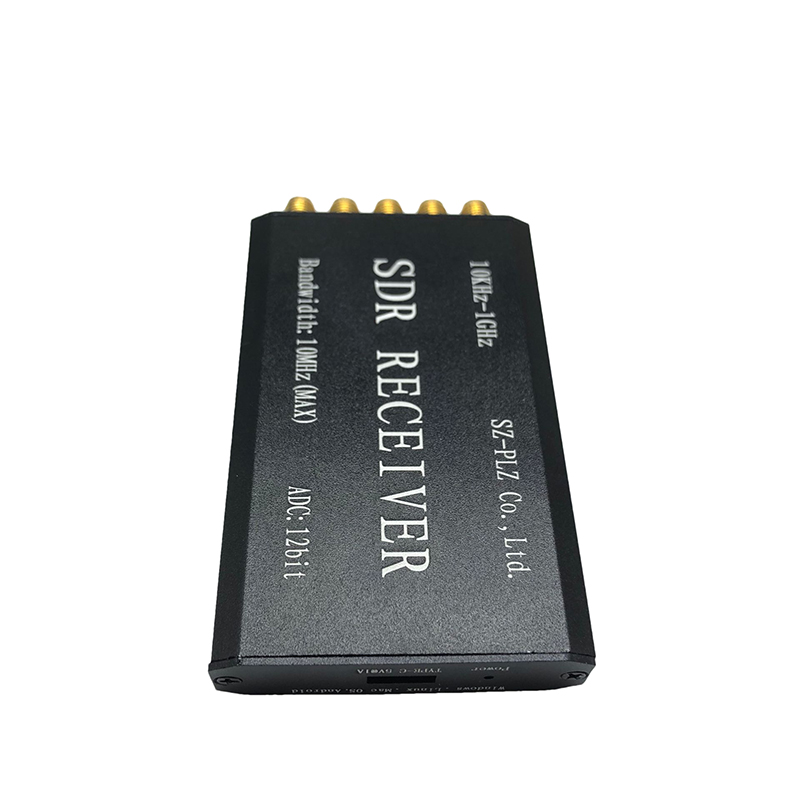

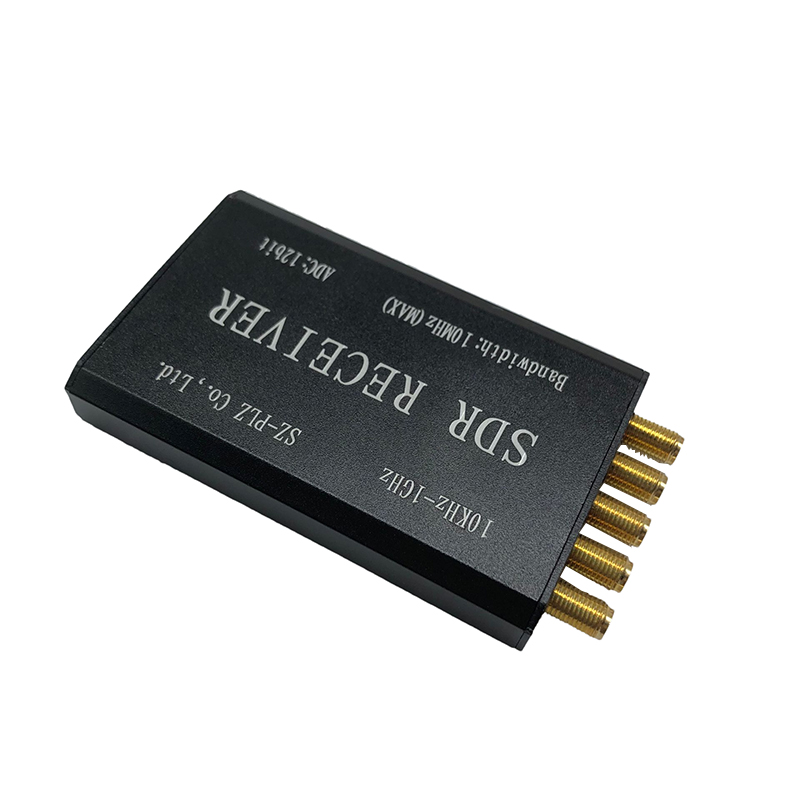

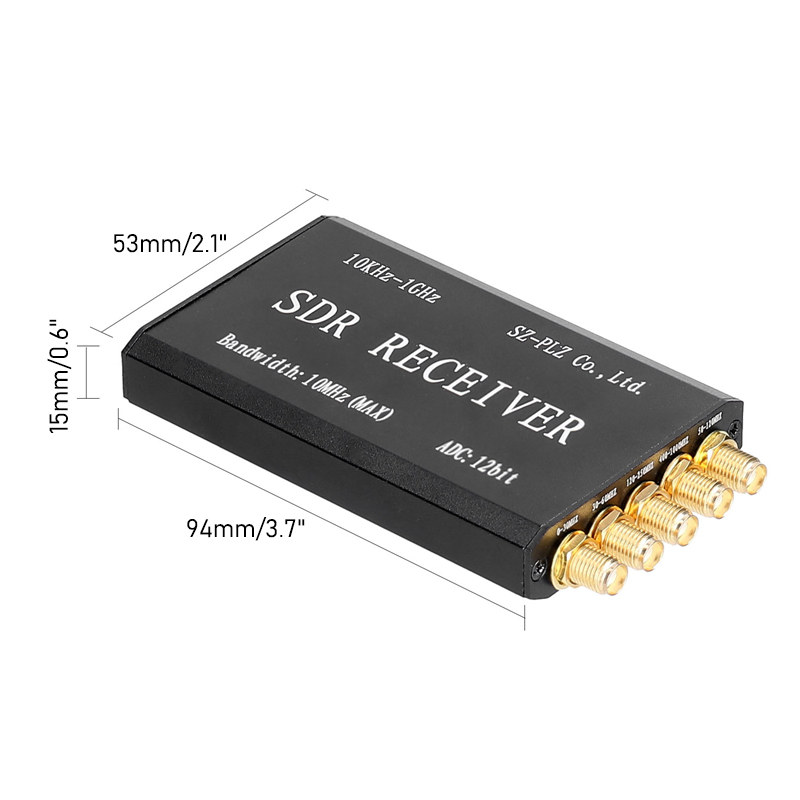

10KHz-1GHz SDR Receiver Software Defined Radio Non-RT Aviation Band Receiver with Antennas
Description:

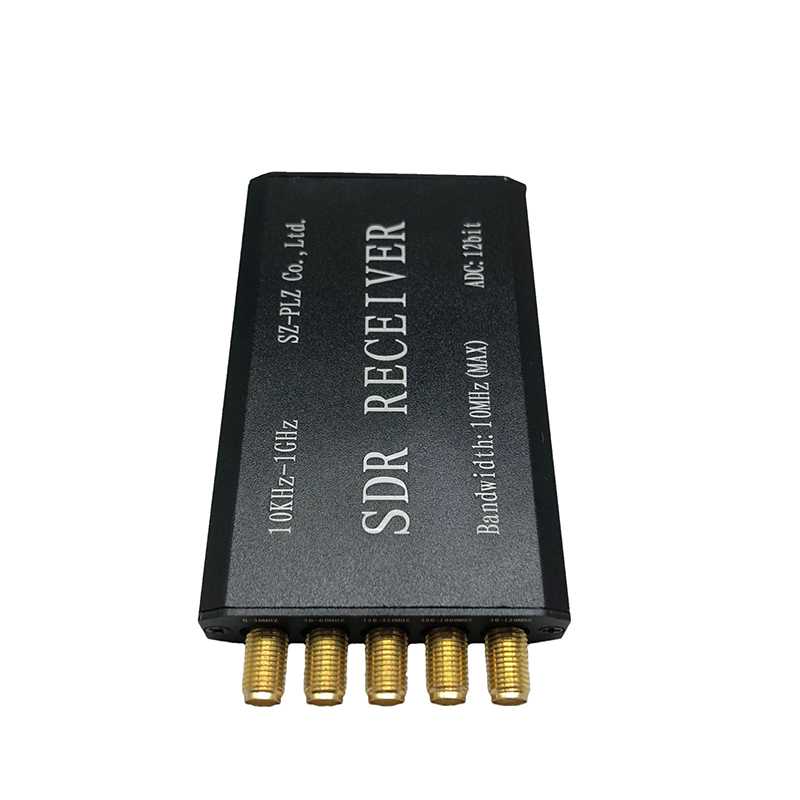

The SDR radio adopts msi2500 and msi001 solutions to simplify its circuit. It is designed with USB type-c interface (for Android) and double-layer board. Its 5 antenna ports correspond to different frequency bands respectively. The radio receiver has passed tests before delivery.
The effective frequency range is 10KHz to 1GHz, the ADC resolution is 12bit, and the whole segment is 10M real-time visual bandwidth (can monitor a 10M wide signal range in real time, such as 430-440MHz). It uses 0.5PPM TCXO to ensure accurate frequency.
It is compatible with platforms for Windows, Linux, Mac OS, and Android. In addition, it supports mainstream software such as for SDR Sharp, HDSDR, SDR consol, GNURadio, and SDR Touch (OTG should be supported by devices for Android).
Application:
FM, AM, SSB, CW telegraph, ATC control, regional modulation, aviation and railway frequency bands, broadcast automatic dependent surveillance, wide and narrowband analog, digital intercom, DMR digital intercom, DRM digital broadcasting, SSTV imagery, NOAA weather cloud map, radio astronomy monitoring, ISS (International Space Station), etc.

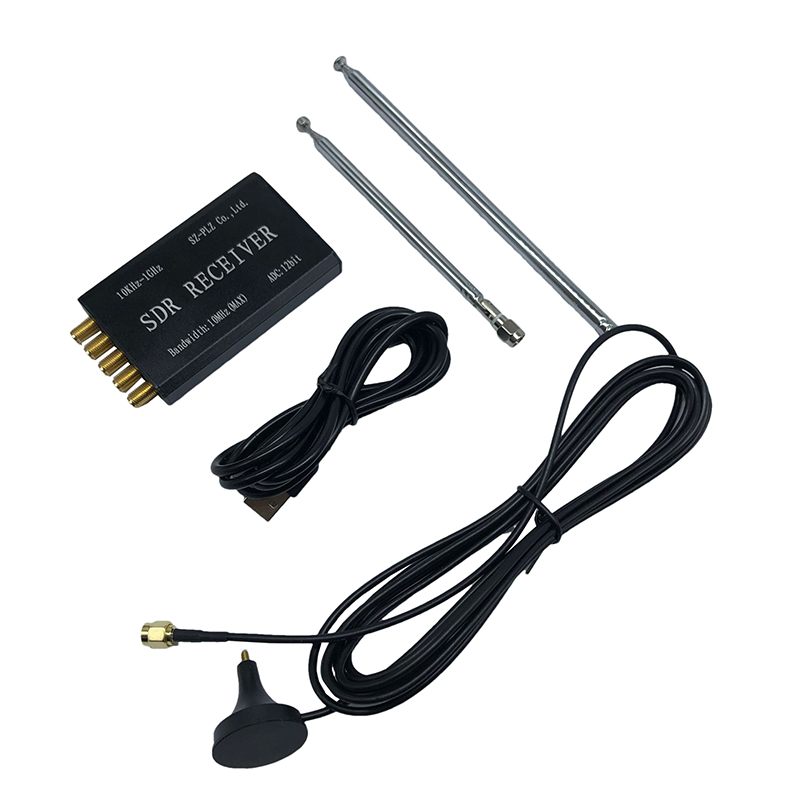

Package Included:
- 1 x SDR Receiver
- 2 x Telescopic Antennas
- 1 x USB Cable
- 1 x Antenna Base
