10KHz-2GHz Mini SDR Receiver Radio 12Bit Sampling 10MHz Bandwidth SMA Connector For SDRplay RSP1

10KHz-2GHz Mini SDR Receiver Radio 12Bit Sampling 10MHz Bandwidth SMA Connector For SDRplay RSP1

Features:

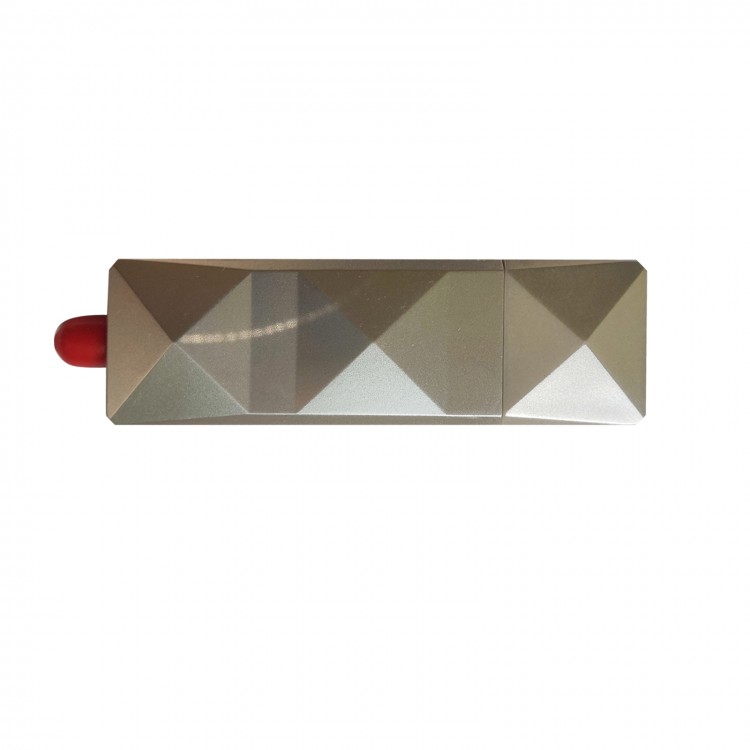

- Size: 84 x 25 x 13mm/3.3 x 1 x 0.5". Small and slightly than a USB flash drive
- Light weight only 20g/0.04 lb. It is more convenient to carry
- The frequency coverage is wide, and 10Khz-2Ghz basically meets the needs of hobbyists
- Very low power consumption, 120ma-175ma. For field use, reducing the consumption of laptops
- The chip (for Mirics) solution adopted by RSP, native 12 bit ADC, SNR 60DB SNR, IF working mode, zero IF and low IF two modes, can be set to 200KHZ-10MHZ multiple IF bandwidth, and there is a low noise preamplifier (LNA), automatically set low-pass, band-pass, and high-pass filters according to the operating frequency. For more detailed technical parameters, refer to the RSP Technical Data Manual

What are the applications of RSP?

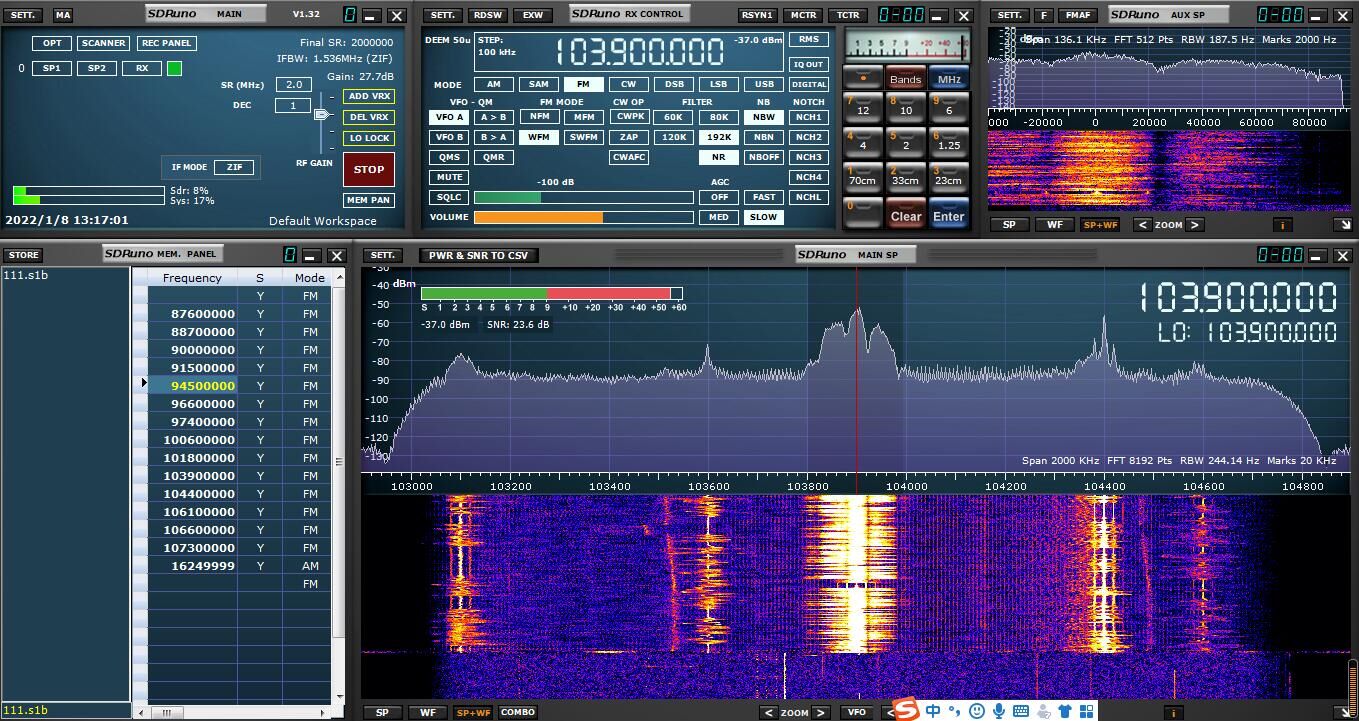

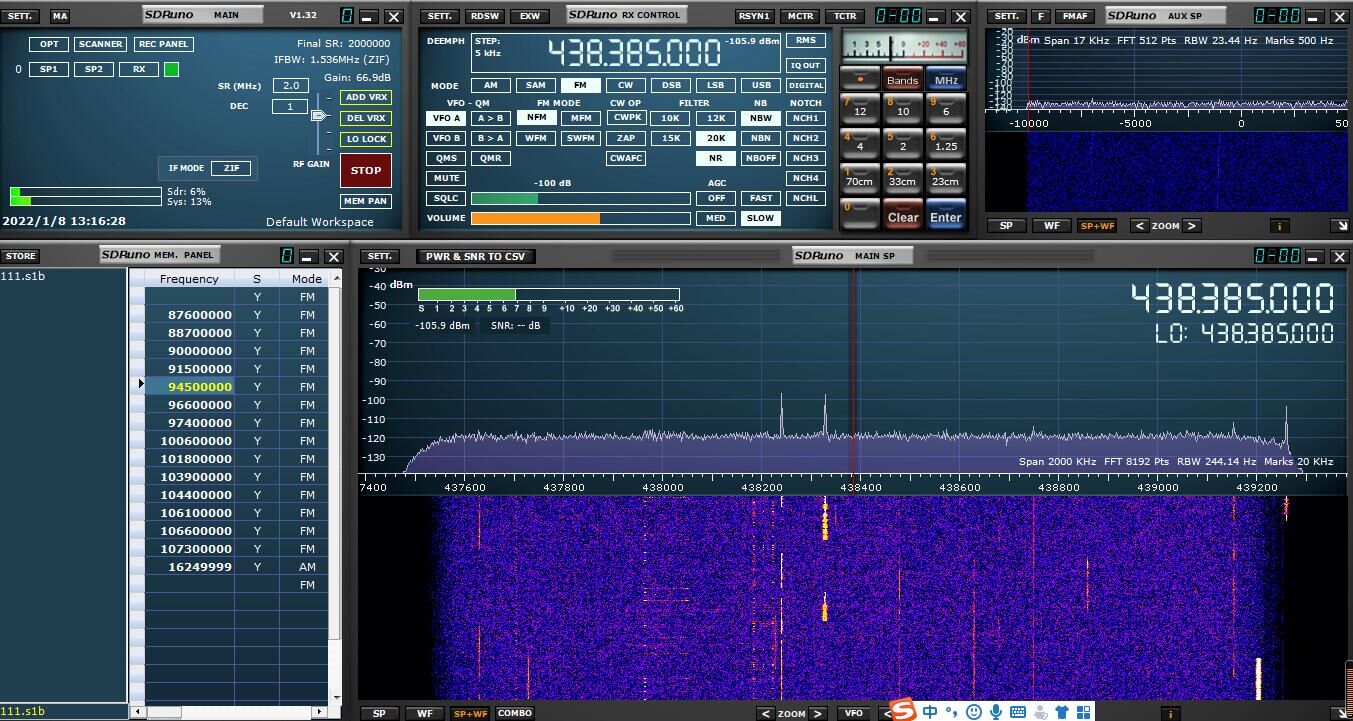

RSP has its own uno. The software has a beautiful operating interface and powerful functions. Using its own platform will give full play to its performance. Almost most famous SDR third-party platforms support, such as HD including the latest Console (V3).

What operating systems does RSP support?
The Windows family is a must. Support for Linux system, Mac system, Android system, Raspberry Pi 2/3.

Instructions:
First install the driver (SDR-pla_RSP_API-Windows-2.13.1.exe) and the host computer software (SDR-pla_uno_Installer_1.41000.exe).

After successful installation, insert SDR, SDR----pla (RSP1) will be displayed in the device manager-sound, video and game controller. Note that this device is not hot-pluggable.

Double-click to start uno just installed, and click Play to start using.

Package Included:
- 1 x Set of SDR Receiver
