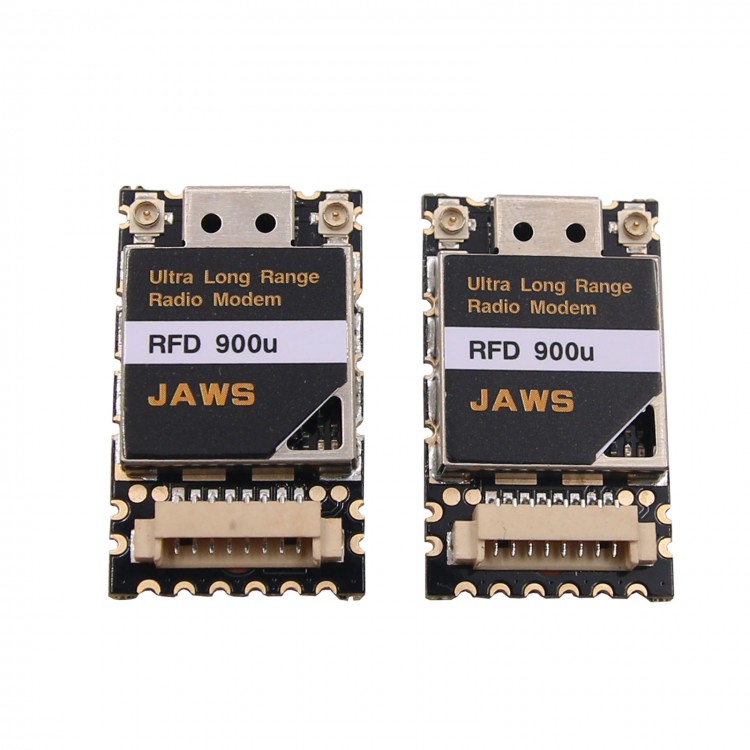

10KM Wireless Radio Data Modem Ultra Long Range Radio Modem for FPV Drone RFD900u

Availability: In stock, usually dispatched in 1 business day

  • Price:$135.30
  • Price in reward points: 1353 Reward Points: 14
  • Quantity 3+ units 10+ units 30+ units 50+ units More
    Price /Unit $132.59 $129.89 $125.83 $120.42 Contact US
Quantity:

10KM Wireless Radio Data Modem Ultra Long Range Radio Modem for FPV Drone RFD900u

Features:

- The smallest, lightest, and very sensitive digital data transmission device on the market
- AES hardware encryption for secure data links
- Long distance greater than 10km depending on antenna and GCS settings
- 2 u.FL RF connectors, diversity switches
- 100mW (+20dBm) transmit power
- Integrated transmit low-pass filter reduces interference to other co-located radio links
- High-linearity low noise amplifier (LNA) with the latest technology pHEMT, high gain greater than 24dB
- Receive SAW filter to block out-of-band interference
- 128kB flash, 8kB RAM, more space can be customized.

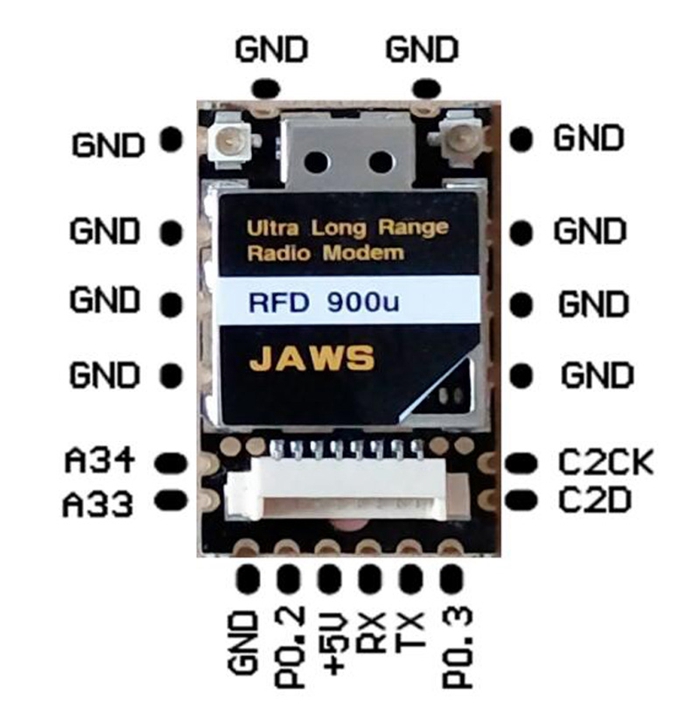

Ports:
- RF: 2pcs u.FL/IPX connectors
- Series: TTL
- Power Supply: +5V, Peak 300mA (When it is of the biggest transmitting power)
- GPIO: 2pcs universal IO (Digital, ADC, PWM functions)
- Connector: DF13, 8-Way Connector

Specifications:
- Frequency Range: 902 - 928 MHz
- Output Power: 100mW (+20dBm)
- Air Data Transmission Rates:
  4, 8, 16, 19, 24, 32, 48, 64, 96, 128, 192 and 250 kbit/sec (Optional, 64k default)
- UART Data Transmission Rates:
  2400, 4800, 9600, 19200, 38400, 57600, 115200 baud (Optional, 57600 default)
- Receiving Sensitivity:
  <-111dBm at 9.6kpbs,
  <-107 dBm at 64kbps,
  <-105dBm at 129kbps (air serial speed)
- Size: 19 x 30.4 x 4.5mm (W*L*Thickness)
- Weight: 2.7g
- Power Supply:
  +5V (+3.5 V min, +5.5 V max)
  ~190mA avg. TX +20dBm
  ~230mA peak TX +20dBm
  ~77mA RX
- Temperature Range: -40 to 85℃

Package Included
- One Set of RDF900u Mini Module
