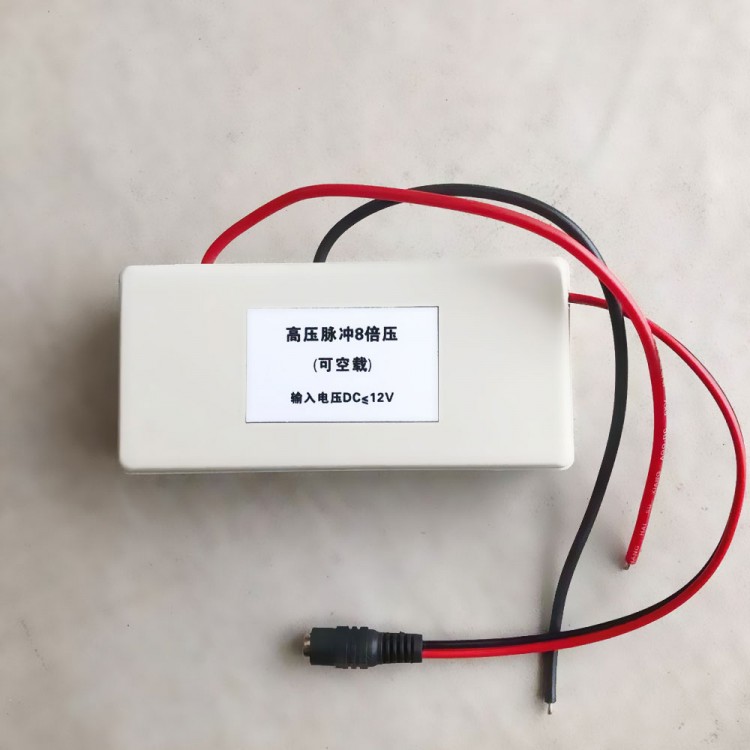

10KV Rectangular Version DP-EA DC High Voltage Module Boost Module Step-up Transformer for Research
Description:
- Research specific high-voltage electrostatic generator module, industrial grade quality, 24-hour continuous operation, can be used for scientific research experiments, withstand voltage testing, electrostatic discharge, ionized gas, negative ions, corona ozone, ion wind, electrostatic generation, capacitor charging, etc.
Specification:
- Product size:
10KV rectangular version: 120 x 55 x 32mm
20KV cylindrical version: 40 x 190mm
30KV cylindrical version: 40 x 210mm
- Working time: support 24 hours continuous working
- No-load power: <= 0.6W
- Average load power: <= 10W
- Input voltage (limit range): 5V - 12V
- Recommended voltage for long time working: < 9V
- Load current: <= 1A
- Output voltage: 10KV/20KV/30KV
- Arc length: 1cm/2cm/3cm
- Average output current: <= 1mA
- Pulse capacitor: 1000pF x 8 (10KV); 1000pF x 16 (20KV); 1000pF x 24 (30KV)
Note:
- It can operate without load for 24 hours.
- It is recommended to supply 9V voltage during continuous discharge.
Package Included:
- 1 x Module
