10M-1CH Frequency Converter Frequency Conversion Module IN 10M OUT 24.576M For Audio Communication
Specifications:
- Model: 10M-1CH
- Item name: 10M frequency conversion module
- Input frequency: 10MHz
- Input signal amplitude: 0.5-3.3Vpp
- Output: 24.576M (can be customized)
- Output waveform: sine wave or square wave, choose 1 from 2
- Output amplitude: sine wave 100M/13DBM, square wave 3.3Vpp
- Power supply: DC4.8-5.3V, <0.1A
- Size: 56 x 40 x 12mm/2.2 x 1.6 x 0.5" (L*W*H)
- Net weight: 200g/0.4LB

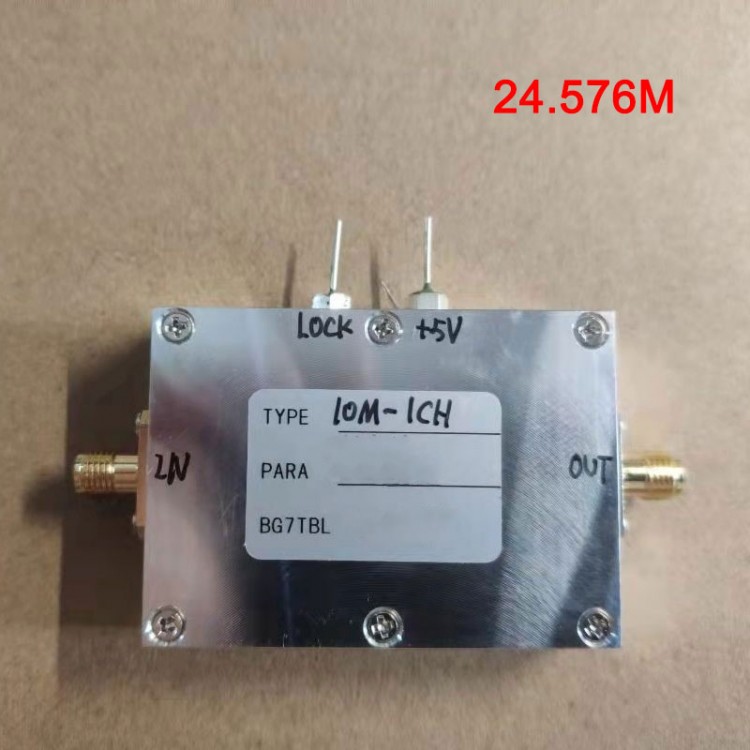

Pin & Interface Definition:
- +5V: power supply input 4.8-5.3V
- Lock: internal lock output 3.3V/10mA, internal lockout, output 0V
- IN: Input frequency standard
- OUT: Output frequency to be converted
How to Use:
- Connect to a power supply and 10M to output the corresponding frequency
Uses:
- For audio, HIF, communication, and testing
Package Included:
- 1 x Frequency Conversion Module
