Quantity | 3+ units | 10+ units | 30+ units | 50+ units | More |
---|---|---|---|---|---|
Price /Unit | $18.87 | $18.49 | $17.91 | $17.14 | Contact US |
10M-6GHz 30DB LNA High Flatness RF Low Noise Amplifier with SMA Female Connector for Beidou/GPS/SDR Receiver
Application:
- For Beidou/GPS receiver
- For receiver system (FM radio receiver, radar receiver, etc.)
- For electromagnetic compatibility receiving system
- For SDR receivers
- For intermediate frequency signal amplification
Specification:
- Power supply: Type-C
- Frequency range: 10M - 6GHz
- NF: 4-5dB
- Gain: 10DB/20DB/30DB/40DB (optional)
- Dimension: 4.5 x 3 x 1.4cm (excluding the length of SMA connector)
- Net weight: 66g (LNA + Type-C cable)
- Current: < 100mA
- P1dB: 18dBm at 2GGHz
- Output port: SMA female connector
- Impedance: 50 ohms

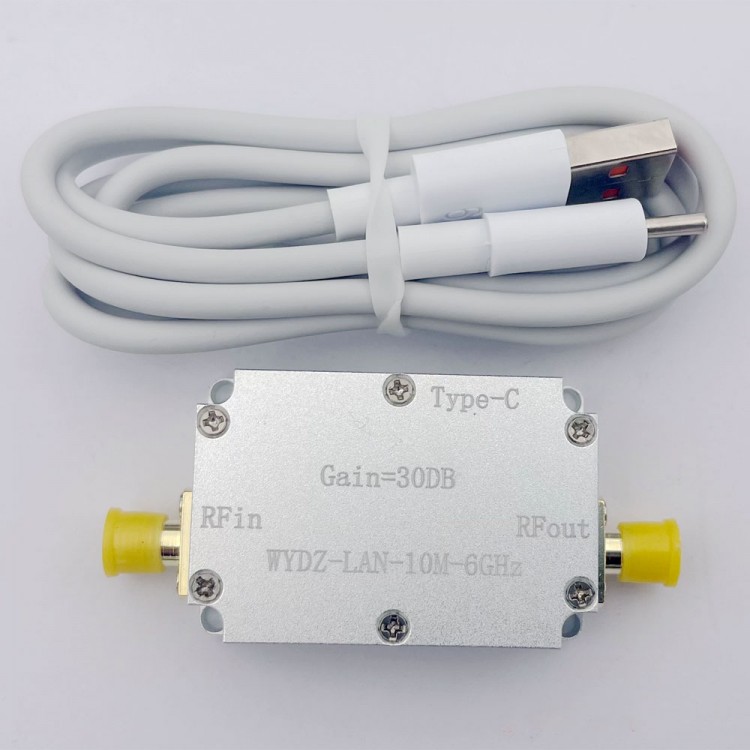

Package Included:
- 1 x LNA
- 1 x Type-C Cable
