10M-6GHz High Flatness Low Noise Amplifier LNA Gain 10DB RF Signal Driving Receiver Front End
Application Scenarios:
1. For Beidou/GPS receiver
2. Receiver system (FM radio receiver, radar receiver, etc.)
3. Electromagnetic compatibility receiving system
4. Software radio receiver
Index Parameters:

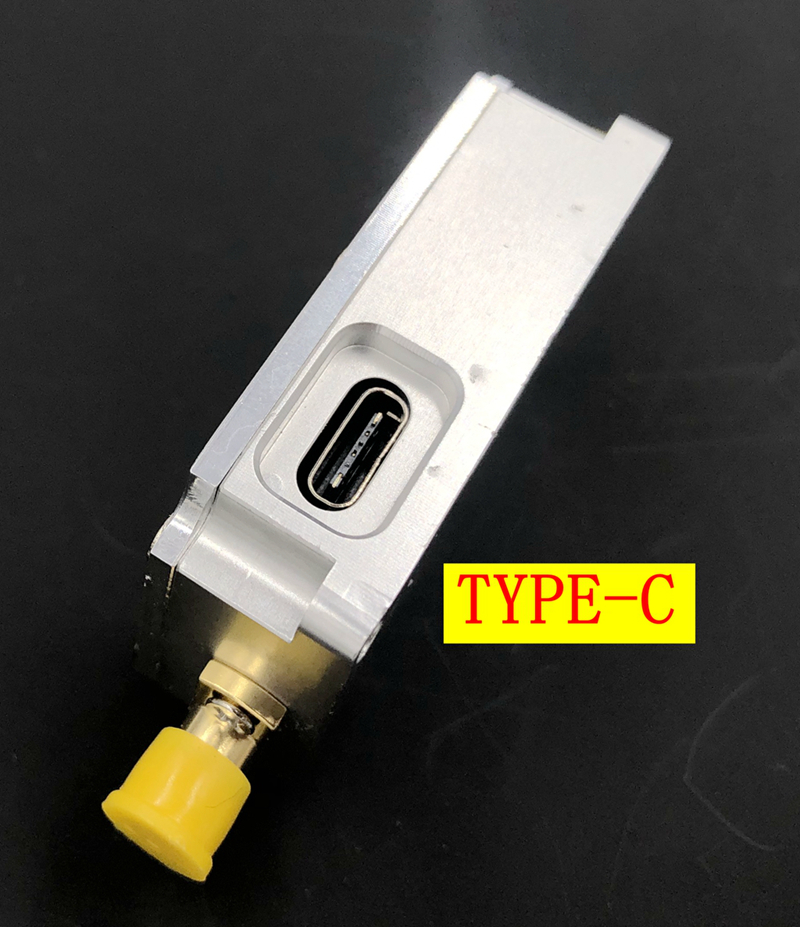

1. Power supply: TYPE-C cable
2. Module frequency range: 10M-6GHz
3. Noise figure: NF=5dB (refer to the measured curve for different frequencies)
4. Gain: 10DB (refer to the measured curve for different frequencies)
5. Volume: 4.5*3*1.4cm (excluding sizes of protruding SMA); Net Weight: 66g (including host + TYPE-C cable)
6. Current: <50mA
7. P1dB=10dBm at 2GHz
8. Output interface: SMA female, input and output impedance: 50 ohms
Package Included:

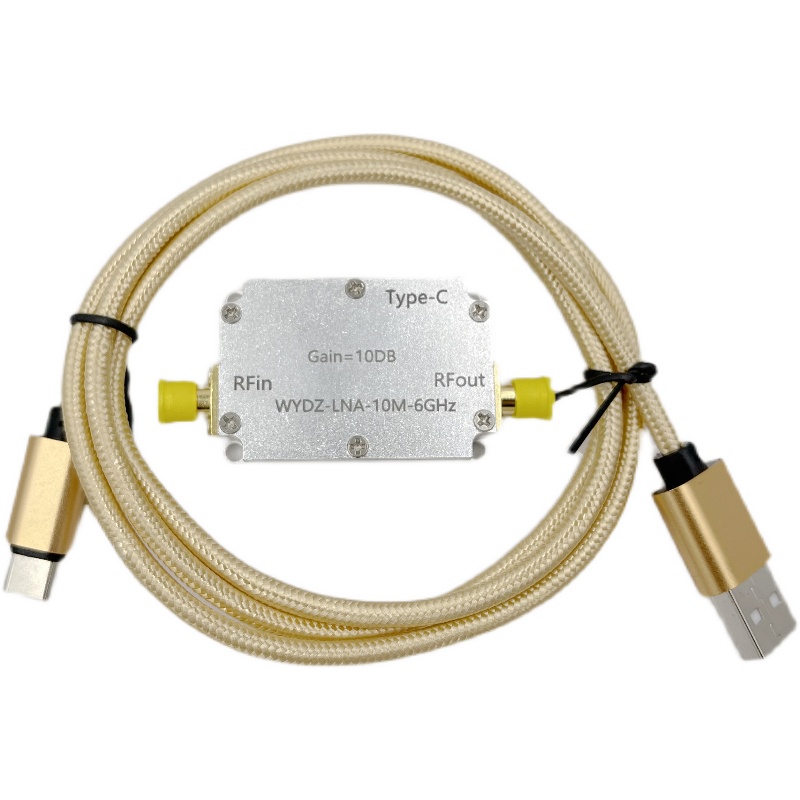

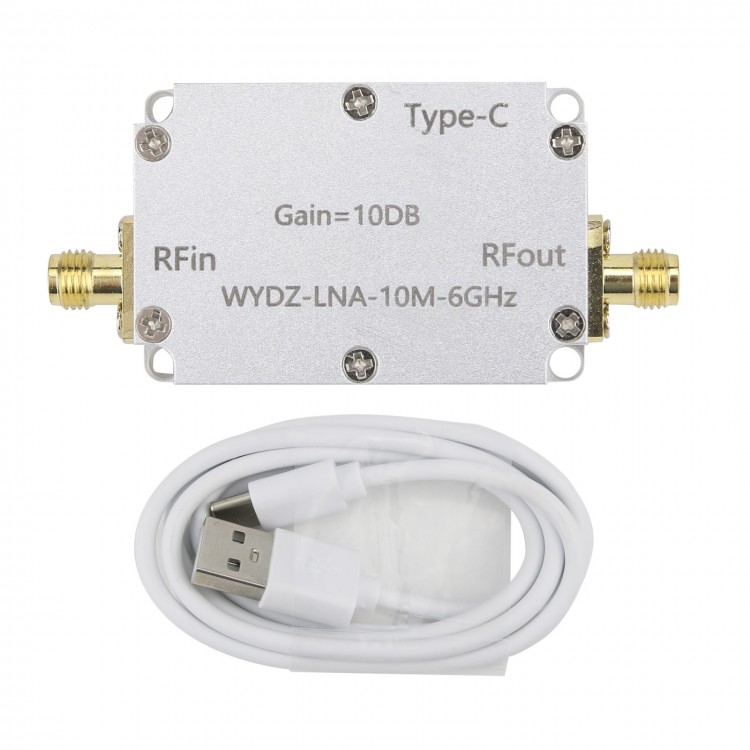

- 1 x Amplifier w/ Aluminum Alloy Shell
- 1 x Type-C Cable
Measured Curve of S Parameter:
