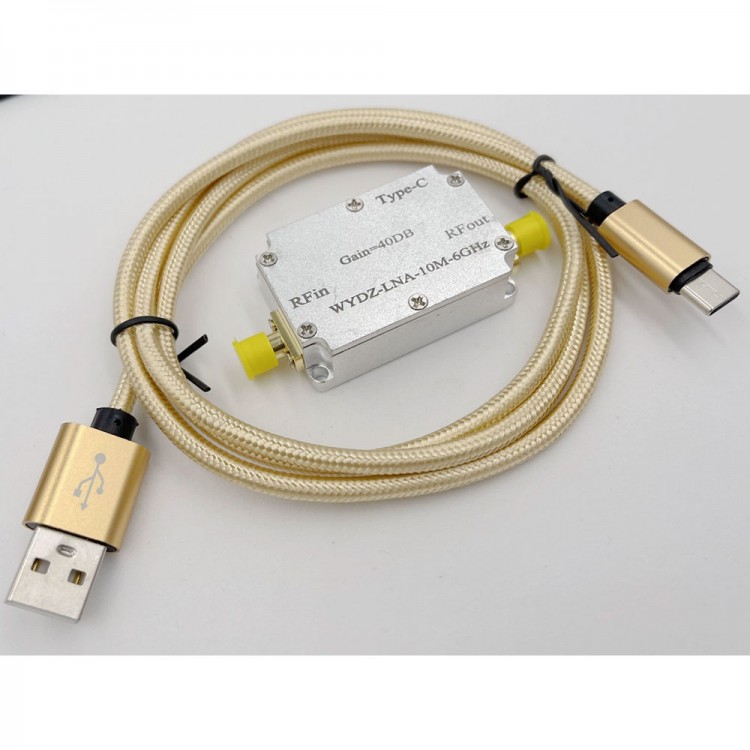

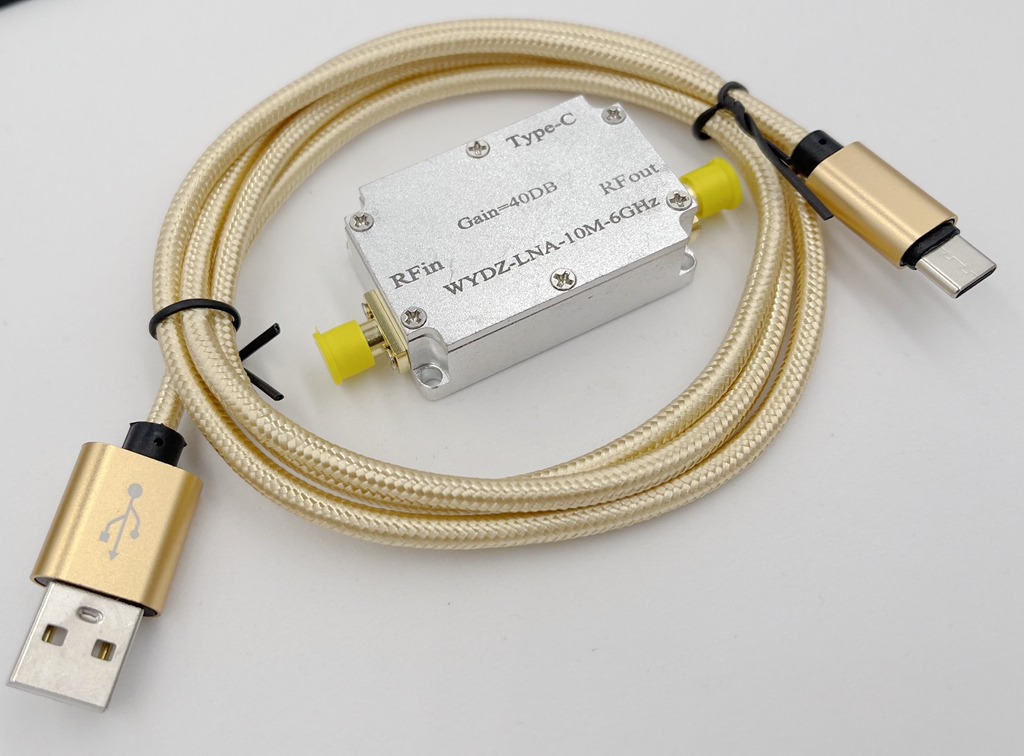

10M - 6GHz LNA High Flatness Low Noise Amplifier 40dB Gain RF Signal Drive Receiving Front-end Radio Accessory
Application:
- For Beidou/GPS receiver
- Receiver system (FM radio receiving, radar receiving, etc.)
- Electromagnetic compatibility receiving system
- Software defined radio receiver
Specification:

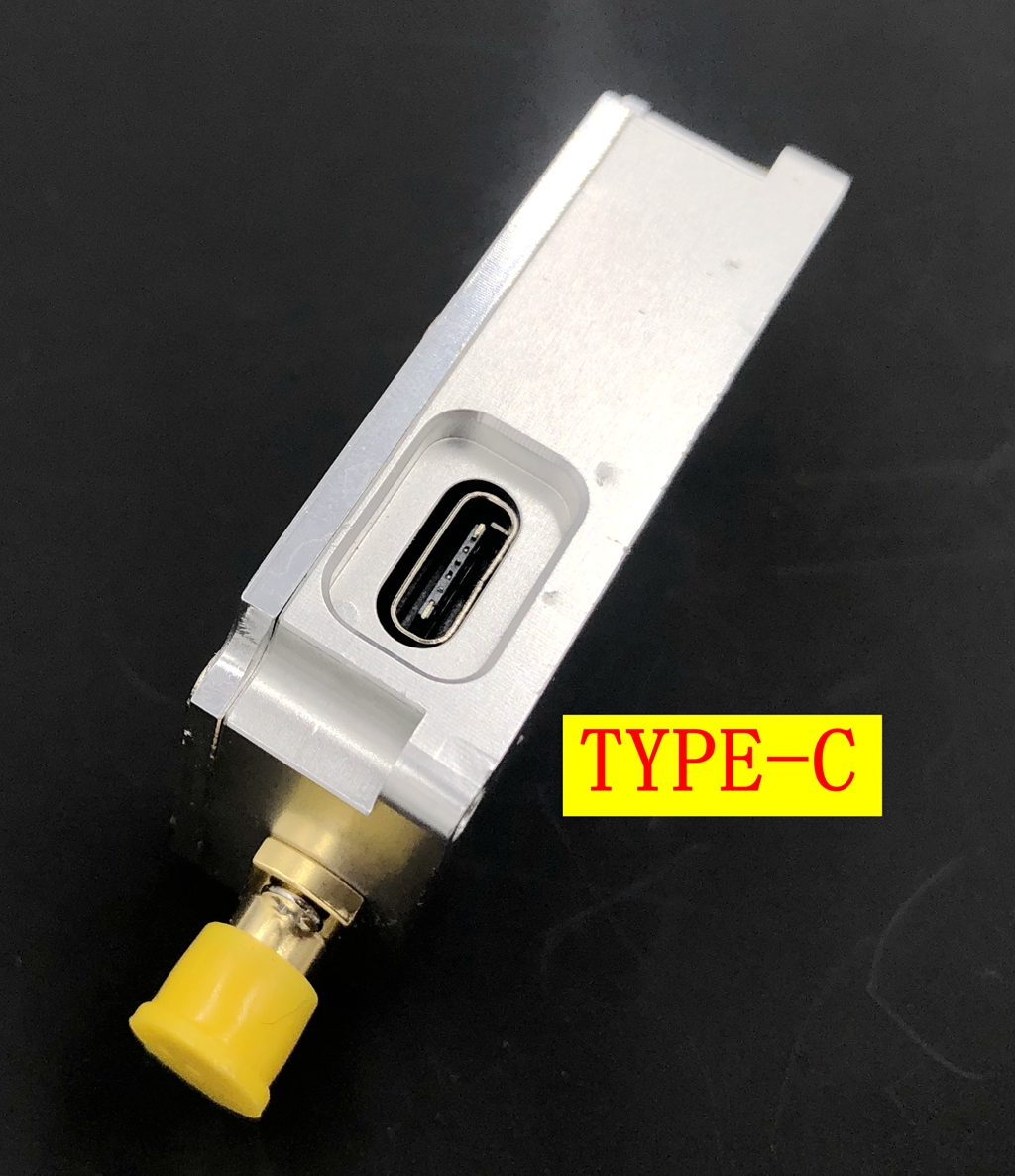

- Power supply: Type-C cable
- Module frequency range: 10M - 6GHz

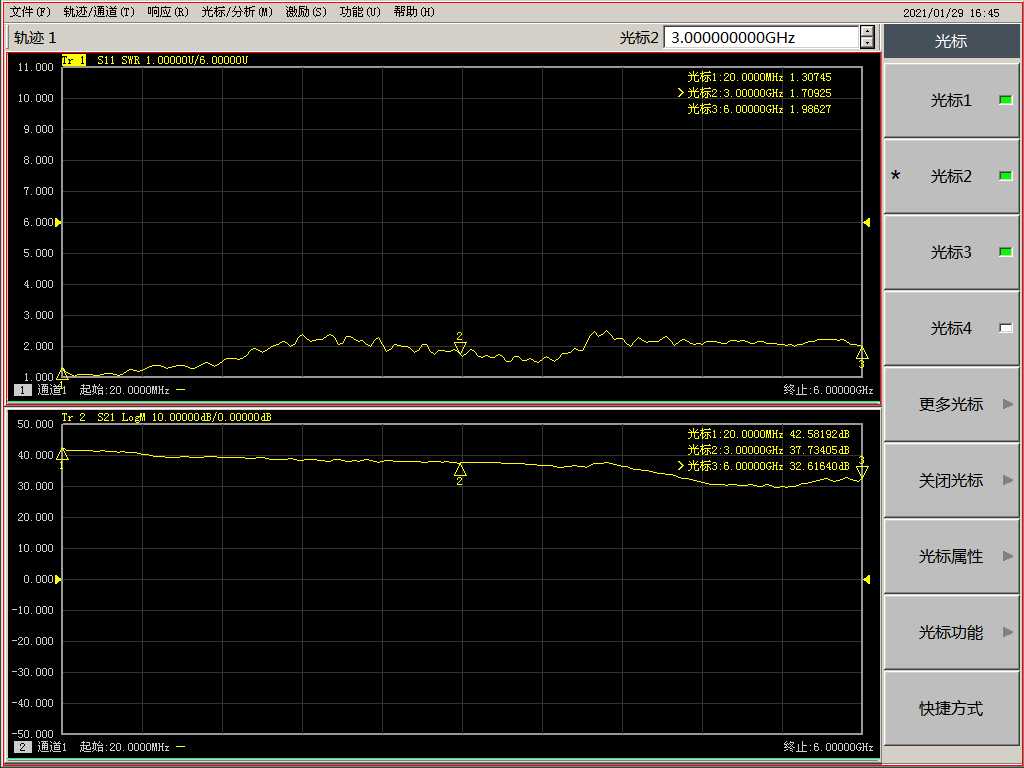

- Noise ratio: NF = 5dB (specific reference measured curves for different frequencies)
- Gain: 40dB (specific reference measured curves for different frequencies)

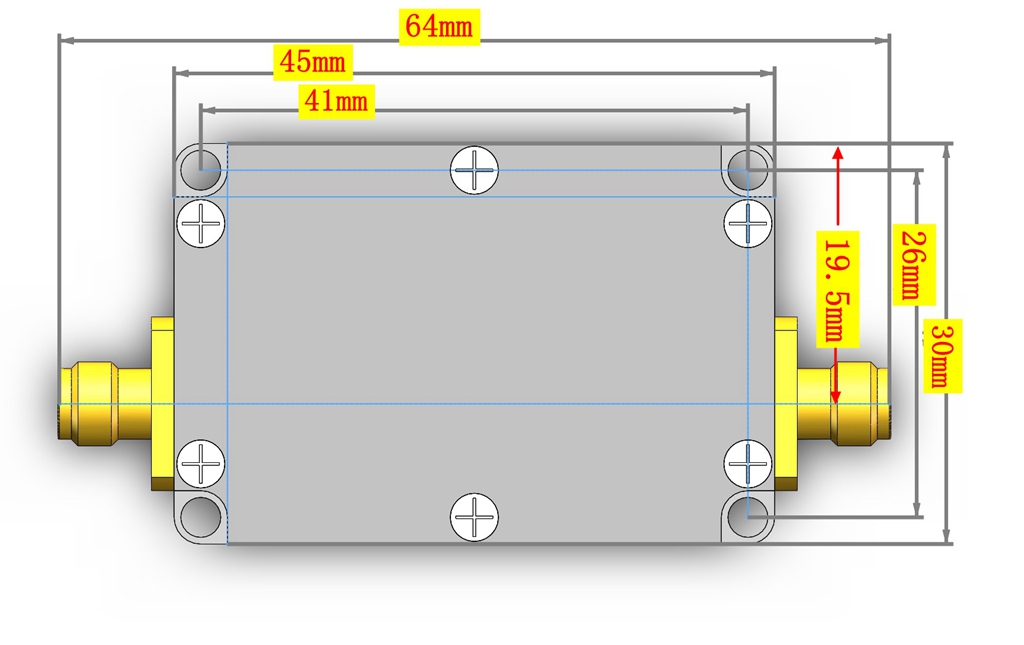

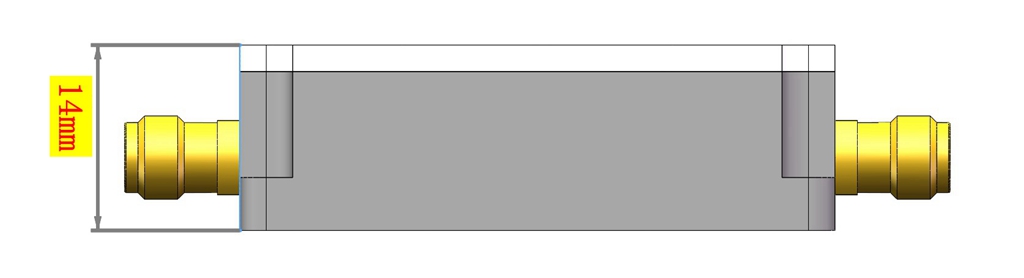

- Volume: 4.5 x 3 x 1.4cm (not includes the SMA connector)
- Weight: 66g (host + type-c cable)
- Current: <150mA
- P1dB = 20dBm at 2GHz
- Output connector: SMA female
- Output impedance: 50ohm
Package Included:
- 1 x Host
- 1 x Type-C Cable
