10M-6GHz Low Noise Amplifier Gain 20DB High Flatness LNA RF Signal Driving Receiver Front End

Availability: In stock, usually dispatched in 1 business day

  • Price:$19.35
  • Price in reward points: 194 Reward Points: 2
  • Quantity 3+ units 10+ units 30+ units 50+ units More
    Price /Unit $18.96 $18.58 $18.00 $17.22 Contact US
Quantity:

10M-6GHz Low Noise Amplifier Gain 20DB High Flatness LNA RF Signal Driving Receiver Front End

Application Scenarios:

1. For Beidou/GPS receiver
2. Receiver system (FM radio receiver, radar receiver, etc.)
3. Electromagnetic compatibility receiving system
4. Software radio receiver

Index Parameters:
1. Power supply: TYPE-C cable
2. Module frequency range: 10M-6GHz
3. Noise figure: NF=5dB (refer to the measured curve for different frequencies)
4. Gain: 20DB (refer to the measured curve for different frequencies)
5. Volume: 4.5*3*1.4cm (excluding sizes of protruding SMA); Net Weight: 66g (including host + TYPE-C cable)
6. Current: <80mA
7. P1dB=10dBm at 2GHz
8. Output interface: SMA female, input and output impedance: 50 ohms

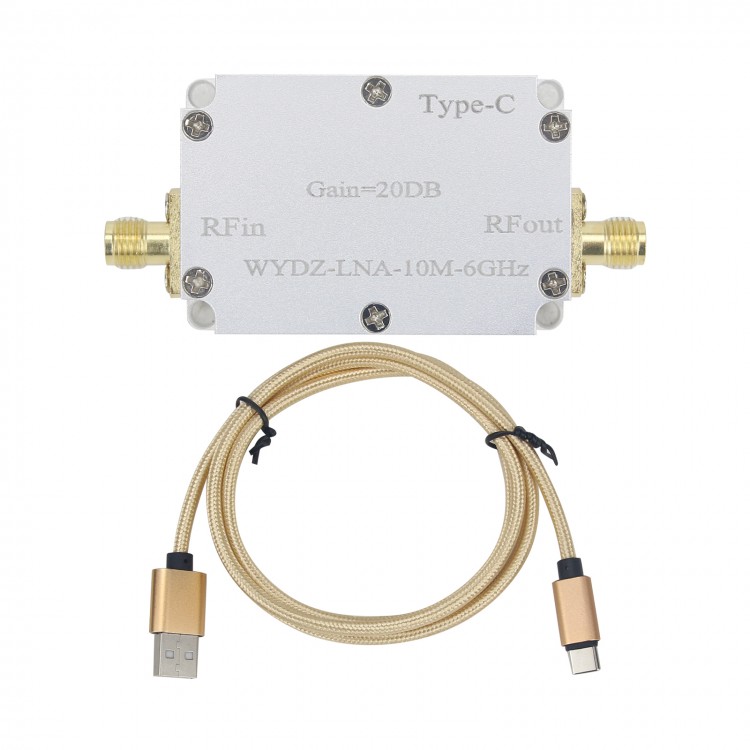

Package Included:
- 1 x Amplifier w/ Aluminum Alloy Shell
- 1 x Type-C Cable

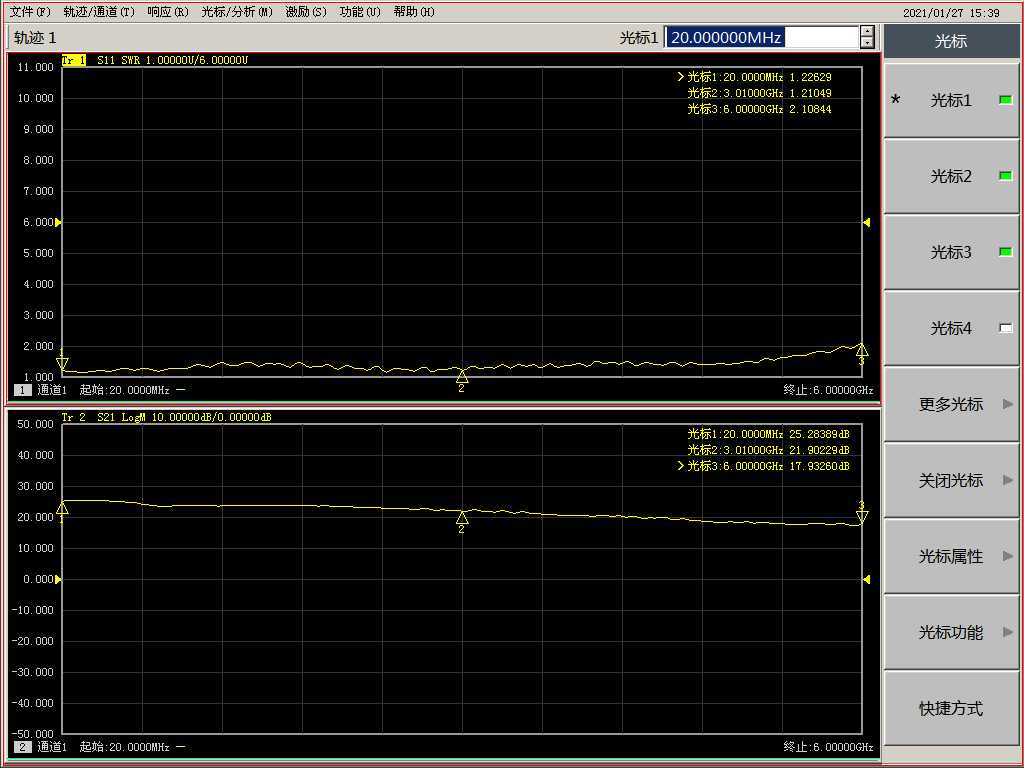

Measured Curve of S Parameter:
