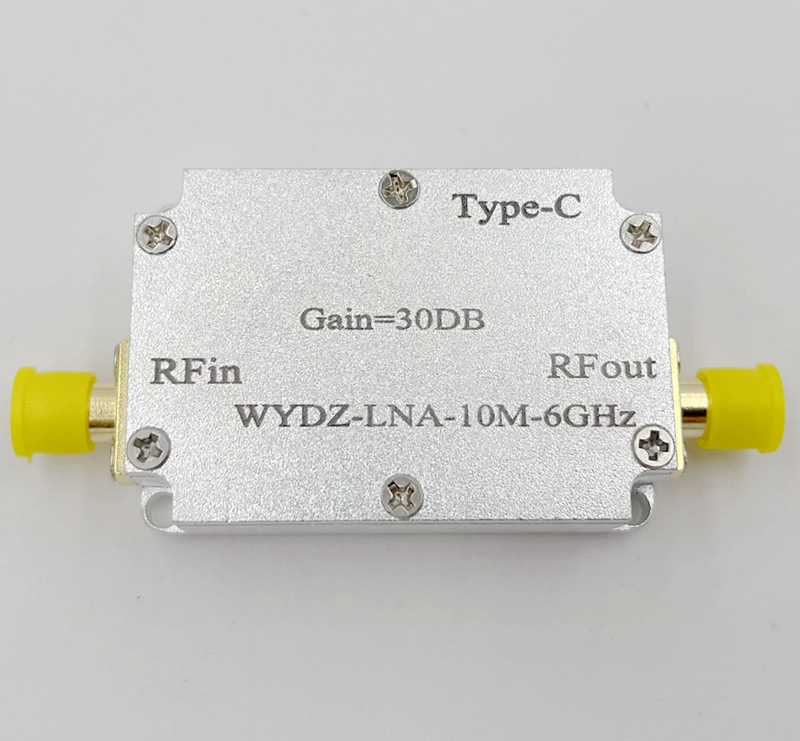

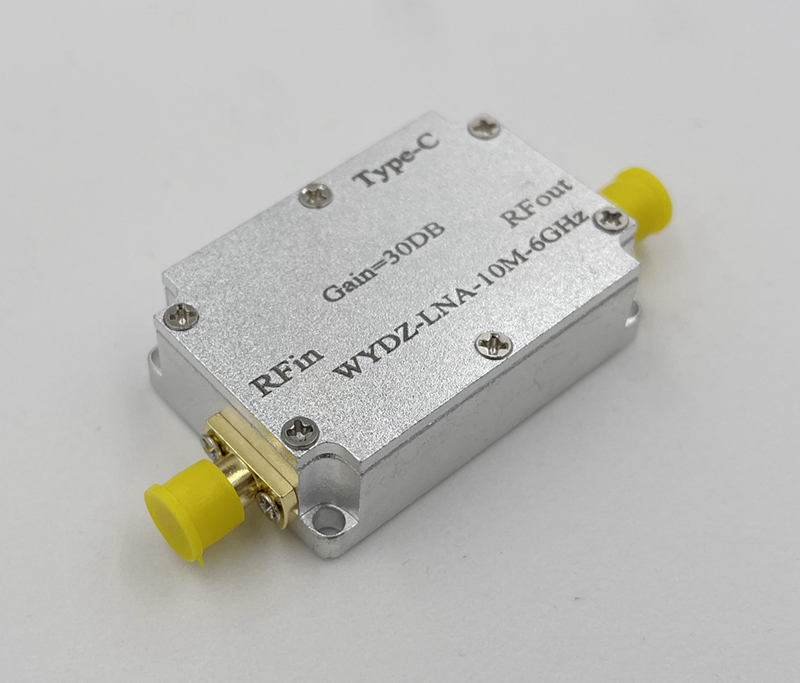

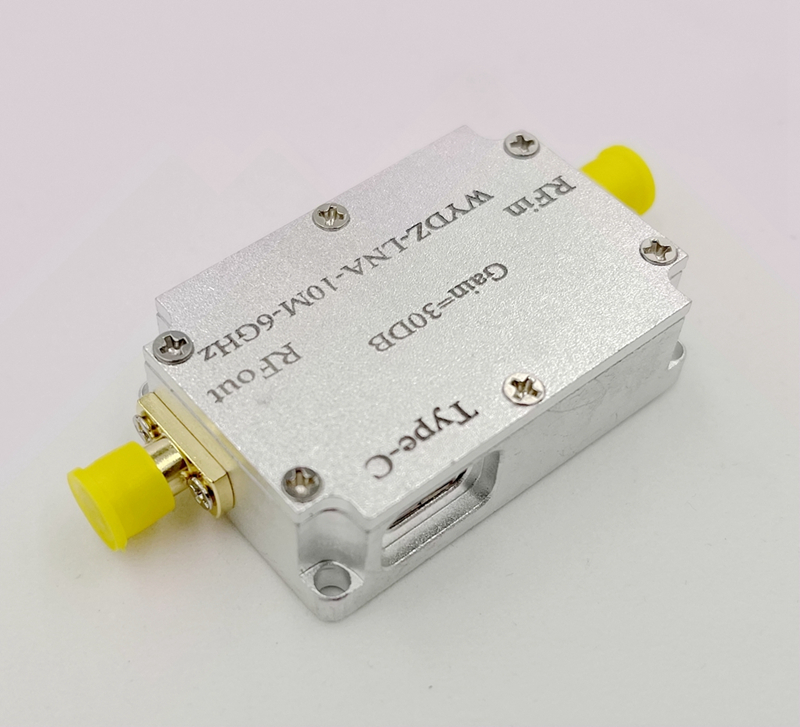

10M-6GHz Low Noise Amplifier Gain 30DB High Flatness LNA Amp RF Signal Driving Receiver Front End
Application Scenarios:
1. For Beidou/GPS receiver
2. Receiver system (FM radio receiver, radar receiver, etc.)
3. Electromagnetic compatibility receiving system
4. Software radio receiver
5. IF signal amplification
Index Parameters:
1. Power supply: TYPE-C cable
2. Module frequency range: 10M-6GHz
3. Noise figure: NF=5dB (refer to the measured curve for different frequencies)
4. Gain: 30DB (refer to the measured curve for different frequencies)
5. Volume: 4.5*3*1.4cm (excluding sizes of protruding SMA); Net weight: 66g (including host + TYPE-C cable)
6. Current: <100mA
7. P1dB=2dBm at 2GHz
8. Output interface: SMA female, input and output impedance: 50 ohms

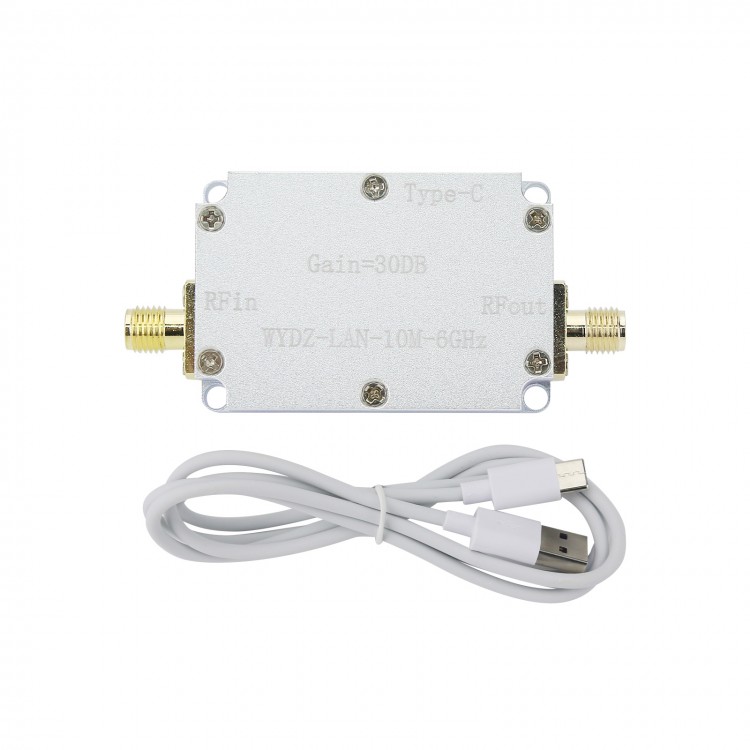

Package Included:
- 1 x LNA Amplifier w/ Aluminum Alloy Shell
- 1 x Type-C Cable

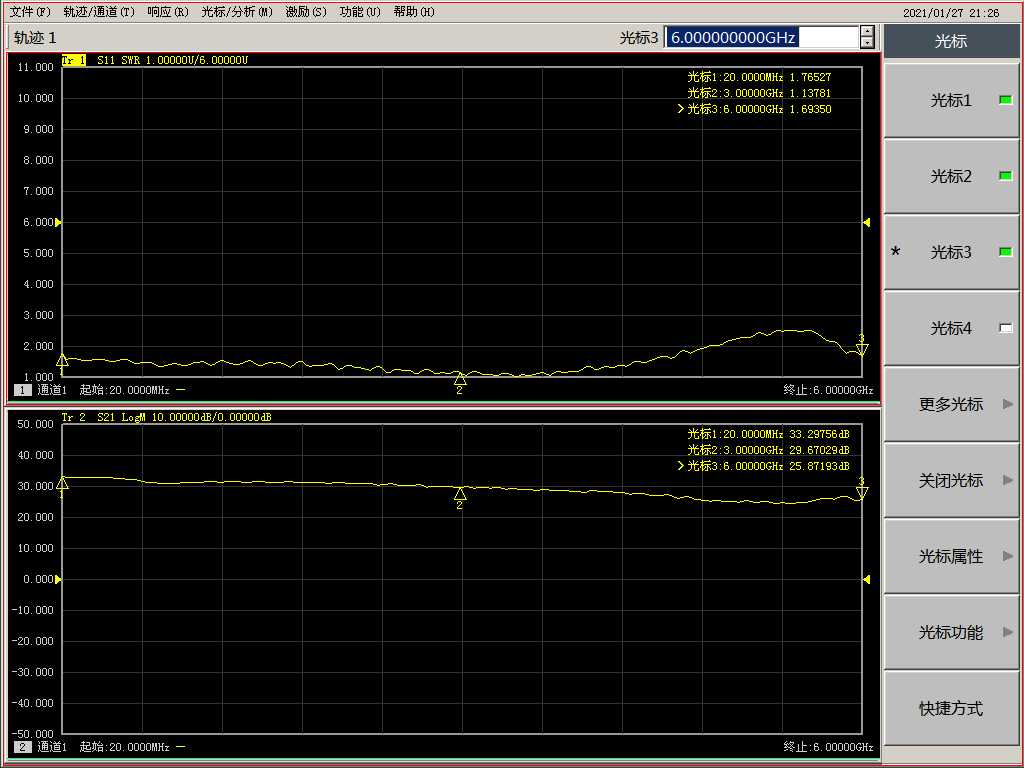

Measured Curve of S Parameter:

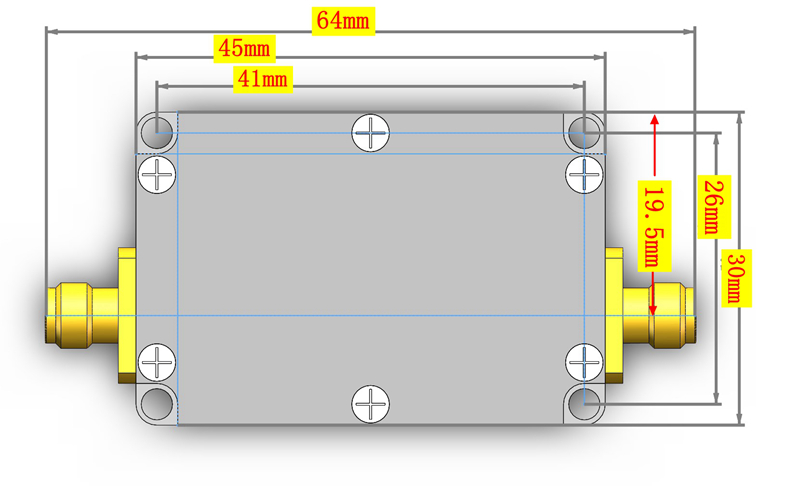

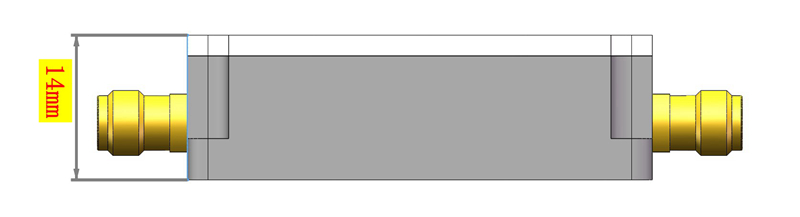

Mechanical Outline Drawing:
