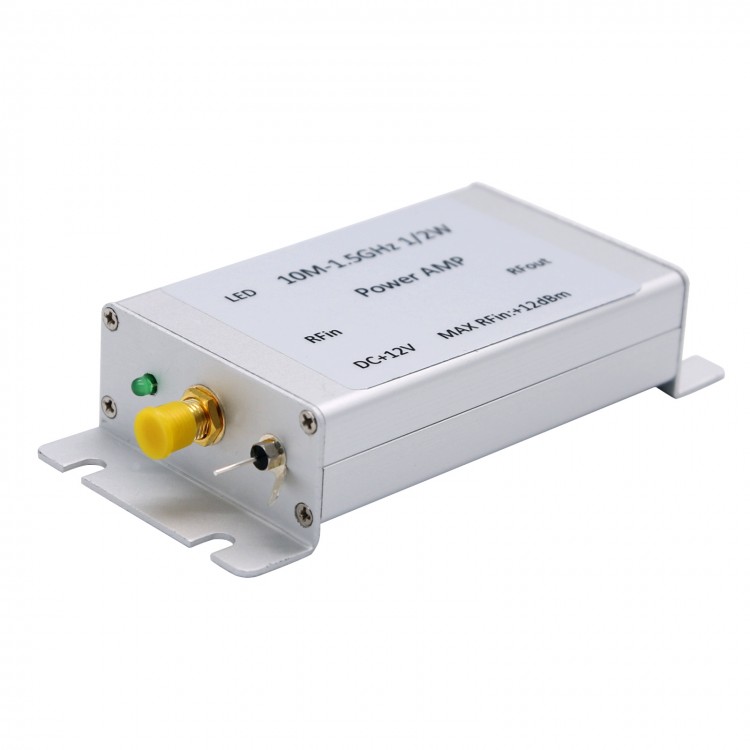

10MHz-1.5GHz Broadband RF Power Amplifier 32dB Gain 27dBm Shielded Output
Specifications:
- Frequency Range: 10MHz - 1500MHz
- Voltage of Power Supply: + 12V (Internal Regulator)
- Current: less than 300mA
- Gain: 32dB

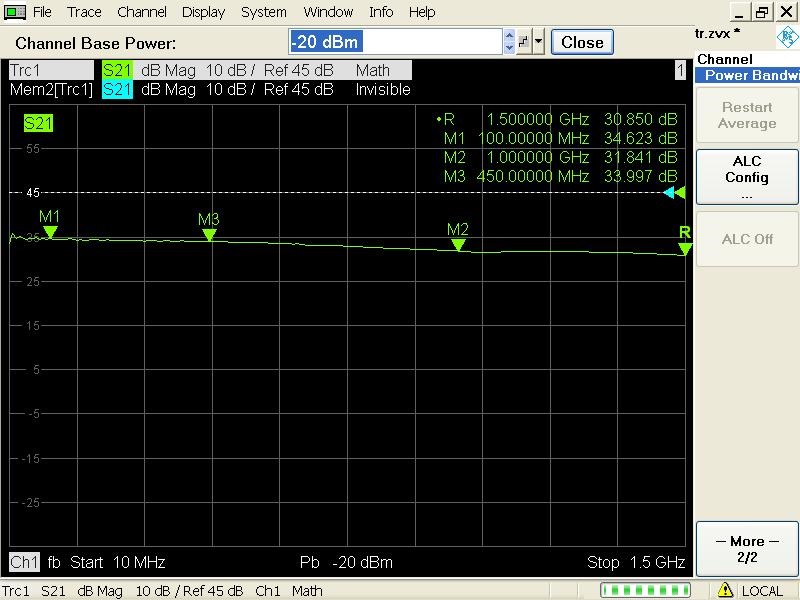

When it inputs -15dBm signal, its gain reaches:
Saturation power output reaches (0dBm input signal):
Package Included:
- 1 x RF Power Amplifier
Note:
- When the amplitude of input signal stands at its maximum value, 0dBm input signal is recommended.
- Please connect it to a load when it inputs and outputs.
- For long-duration job, please add a extra cooling device for heat dissipation.
