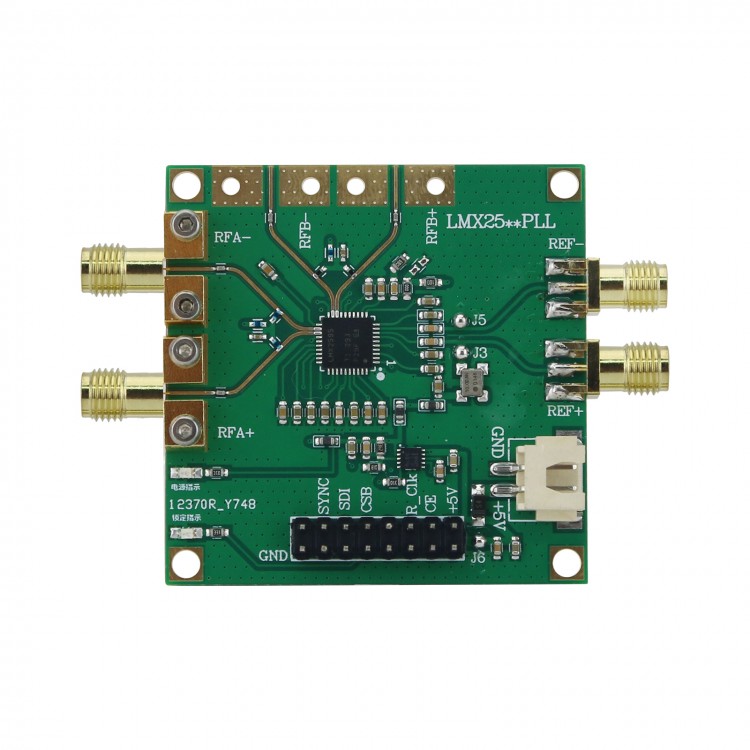

10MHz-19GHz LMX2595 V3 PLL Core Board High Frequency Phase Locked Loop with SMA Female Connector

Characteristics:
- 10MHz - 19GHz output frequency
- Phase noise of -110dBc/Hz with 100KHz offset and 15GHz carrier
- At 7.5GHz, it has 45fs RMS jitter (100Hz to 100MHz)
- Programmable output power
- Main specifications of PLL
- Quality factor: -236dBc/Hz
- Nominal 1/f noise: -129dBc/Hz
- Maximum phase detector frequency
- 400MHz integer mode
- 300MHz fractional mode
- 32-bit fractional N divider
- Eliminating integer boundary spurious using programmable input multipliers
- Achieve output phase synchronization across multiple devices
- Support SYSREF with programmable delay of 9ps resolution
- Application of frequency ramp up and linear frequency modulation pulse capability in FMCW
- VCO calibration speed less than 20 µs
- 3.3V single power supply operation

Application:
- 5G and millimeter wave wireless infrastructure
- Testing and measuring equipment
- Radar
- For MIMO
- Phased array antenna and beam-forming
- High speed data converter clock (supports for JESD204B)

Package Included:
- 1 x LMX2595 Core Board
