10MHz-19GHz RF Signal Generator Frequency Source Sweep & OLED & Software LMX2595

Availability: In stock, usually dispatched in 1 business day

  • Price:$211.82
  • Price in reward points: 2118 Reward Points: 21
  • Quantity 3+ units 10+ units 30+ units 50+ units More
    Price /Unit $207.58 $203.35 $196.99 $188.52 Contact US
Quantity:

10MHz-19GHz RF Signal Generator Frequency Source Sweep & OLED & Software LMX2595

LMX2595 Chip Features:

- 10MHz to 19GHz output frequency
- Phase noise of -110dBc/Hz with 100KHz offset and 15GHz carrier
- 45fs RMS jitter at 7.5GHz (100Hz to 100MHz)
- Programmable output power

PLL Specifications:

- Quality factor: -236dBc/Hz
- Nominal 1/f noise: -129dBc/Hz
- Highest phase detector frequency
- 400MHz integer mode
- 300MHz fractional mode
- 32-bit score N divider
- Eliminate integer boundary spurs with programmable input multipliers
- Output phase synchronization across multiple devices
- Support for SYSREF with programmable resolution of 9ps resolution
- FMCW's frequency ramp and chirp capability
- Less than 20μs VCO calibration speed
- 3.3V single supply operation

LMX2595 Chip Application:
- 5G and millimeter wave wireless infrastructure
- Test and measurement equipment
- Radar
- MIMO
- Phased array antenna and beamforming
- High speed data converter clock (supports JESD204B)

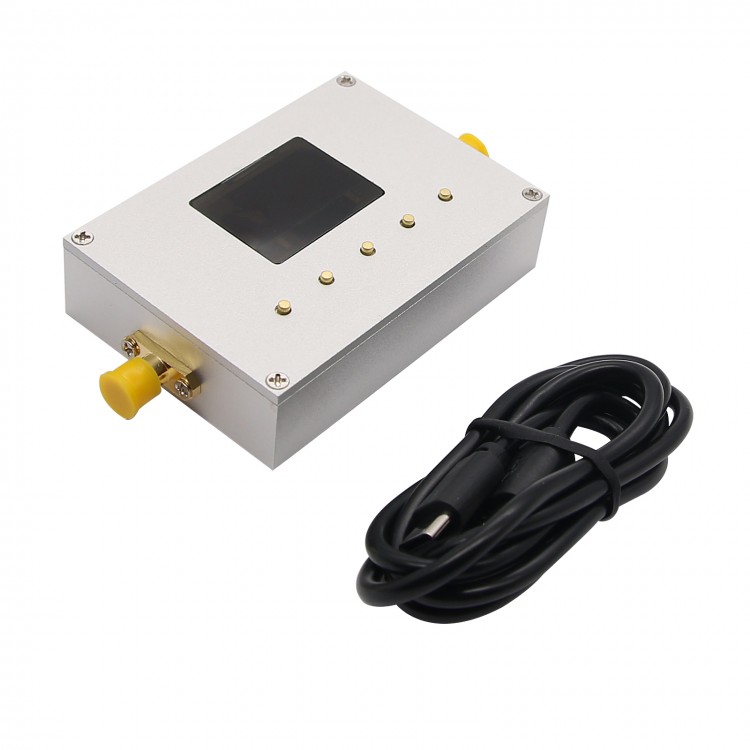

Package Included:

- 1 x LMX2595 RF Signal Generator
- 1 x USB Cable

Note: Software and other data will sent by email, please contact us after purchasing.
