10MHz - 6GHz 27 - 35DBM Adjustable Bidirectional RF Limiter for Spectrum Analyzer RF Front-end Vector Network Protection

Availability: In stock, usually dispatched in 1 business day

  • Price:$43.94
  • Price in reward points: 439 Reward Points: 4
  • Quantity 3+ units 10+ units 30+ units 50+ units More
    Price /Unit $43.06 $42.18 $40.86 $39.11 Contact US
Quantity:

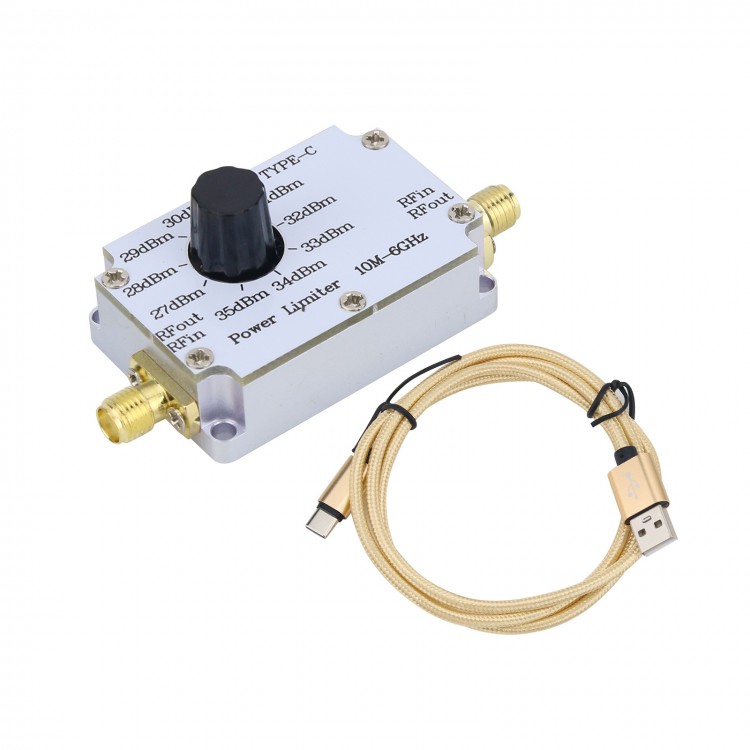

10MHz - 6GHz 27 - 35DBM Adjustable Bidirectional RF Limiter for Spectrum Analyzer RF Front-end Vector Network Protection

Specification:

- Working frequency: 10MHz - 6GHz
- Power supply interface: Type-C (+5V)
- Limiter level: 7 levels (7/8/9/10/11/12/13)
- Maximum power: constant input power CW=40dBm (10W); pulse power=47dBm (50W)
- Input and output connector and impedance: SMA female connector; 50ohm

Package Included:
- 1 x RF Limiter
- 1 x Type-C Cable

Insertion Loss Specification:



Compression Reference Curve:
