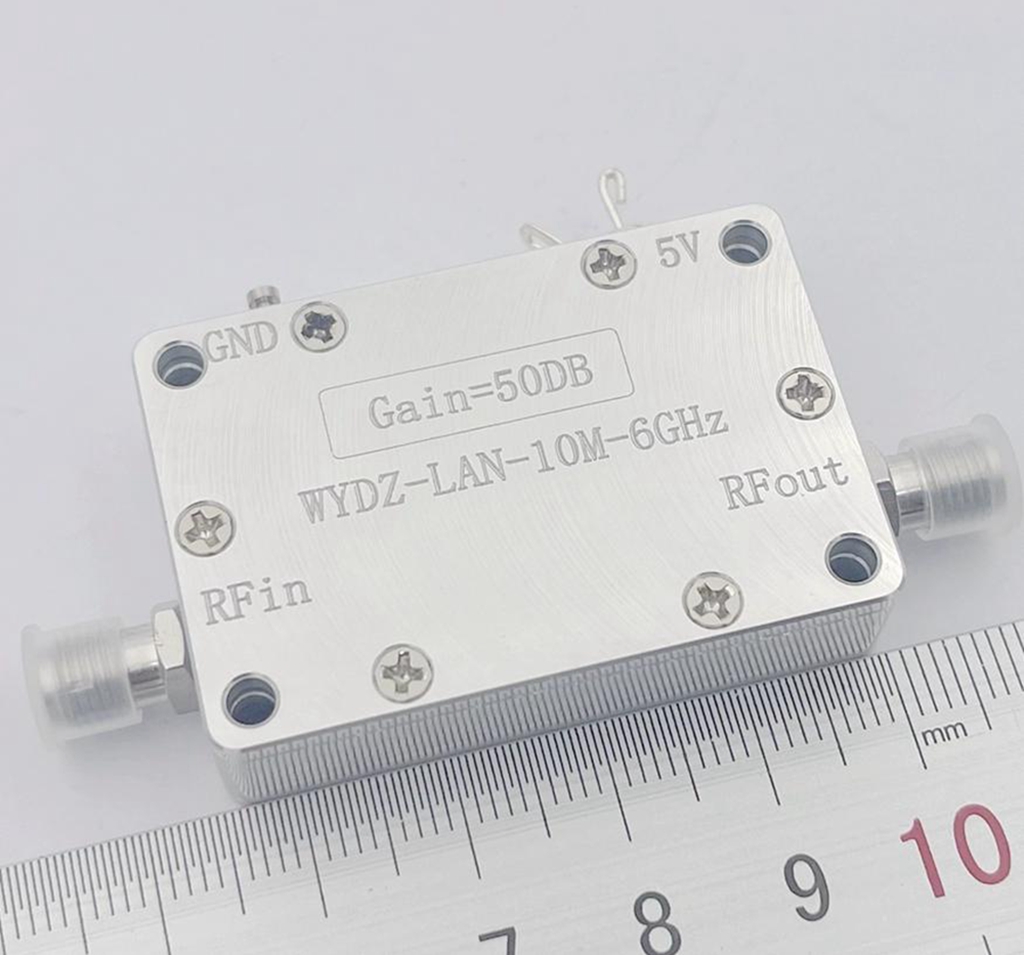

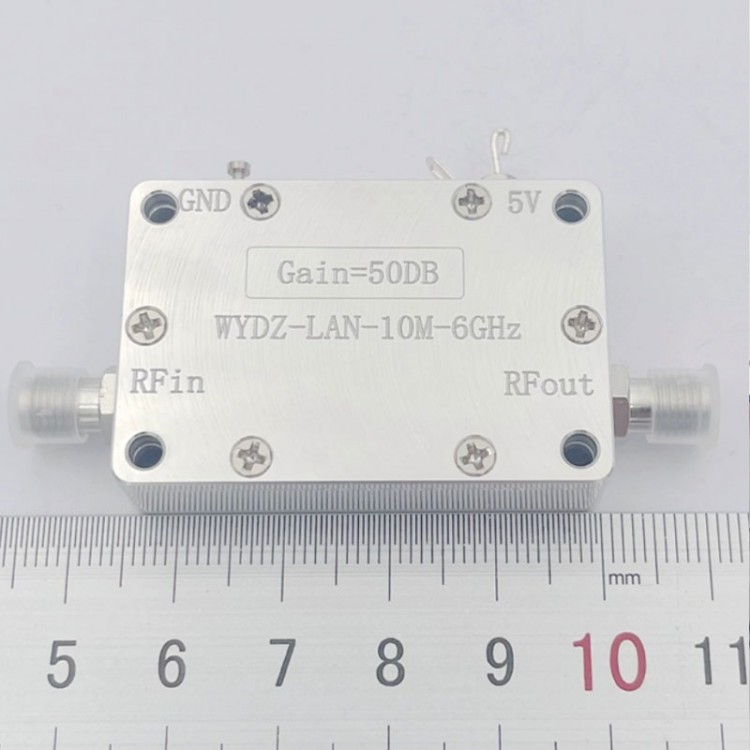

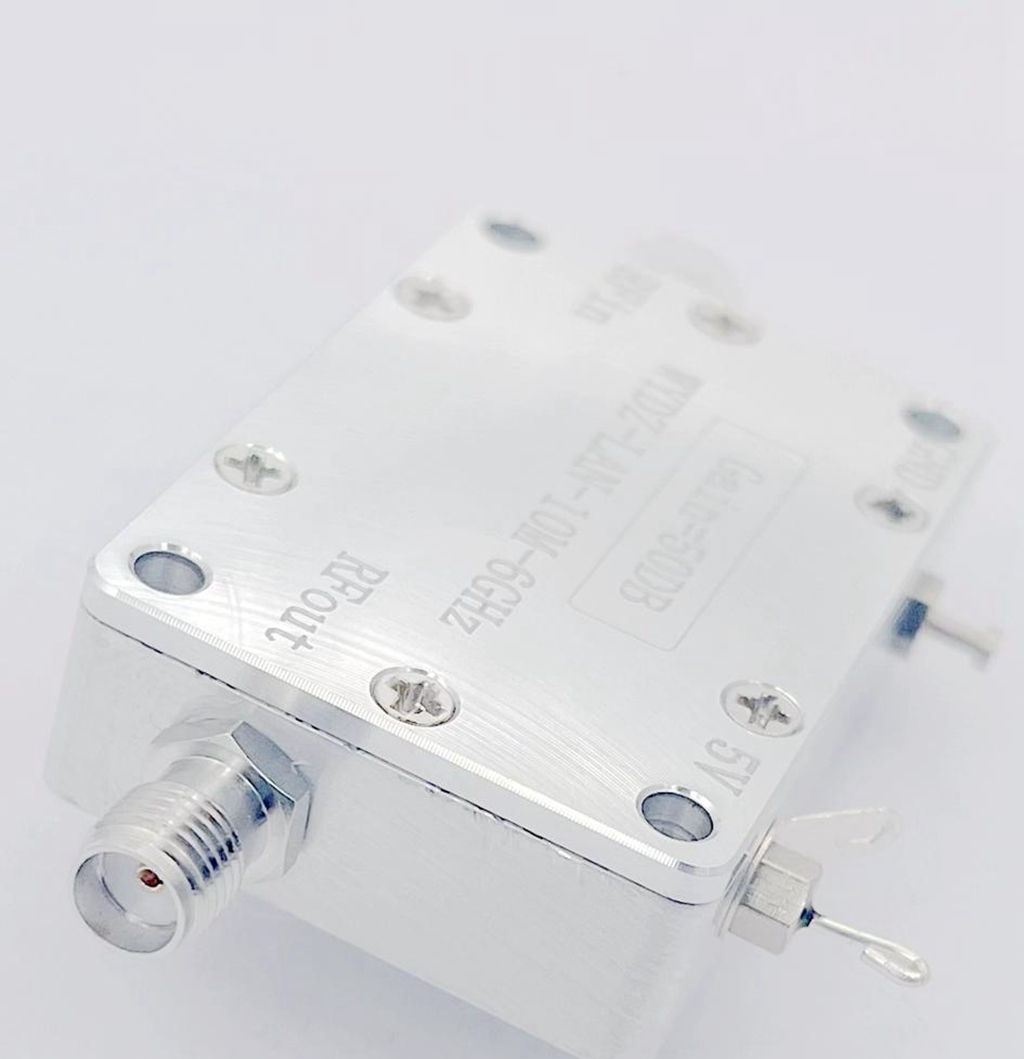

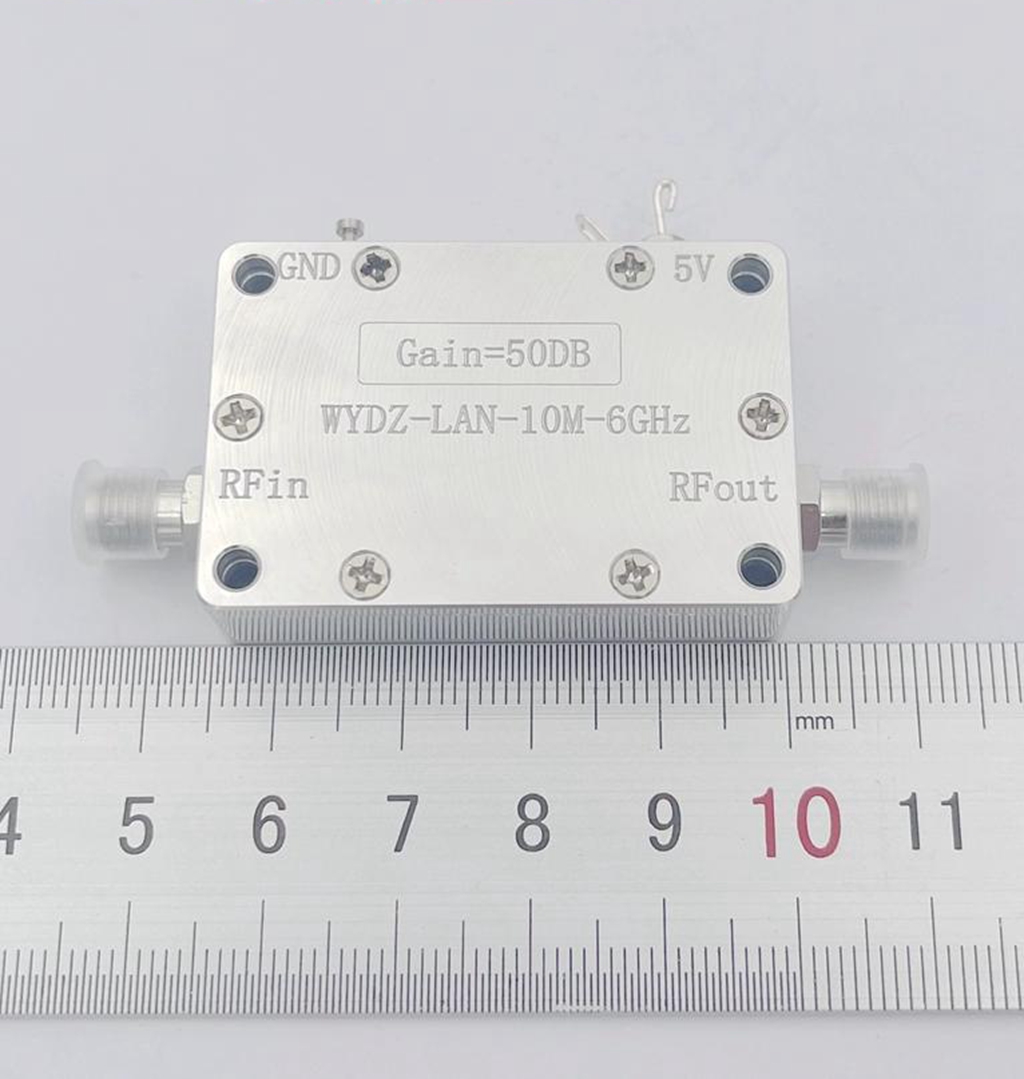

10MHz-6GHz 50dB High Gain LNA Wideband Low Noise Amplifier with SMA Female connector for Beidou/GPS Receiver
Application:
- for Beidou/GPS receiver
- RX system (FM radio RX, radar receiving, etc.)
- Electromagnetic compatibility receiving system
- SDR receiver
Specification:

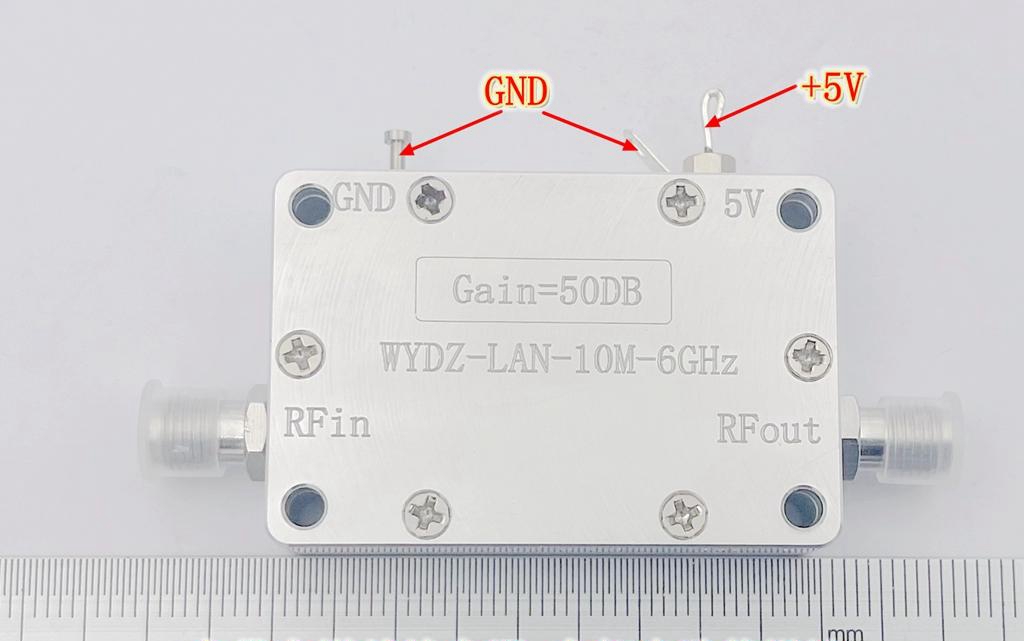

- Power supply: feed through capacitor power supply 5V

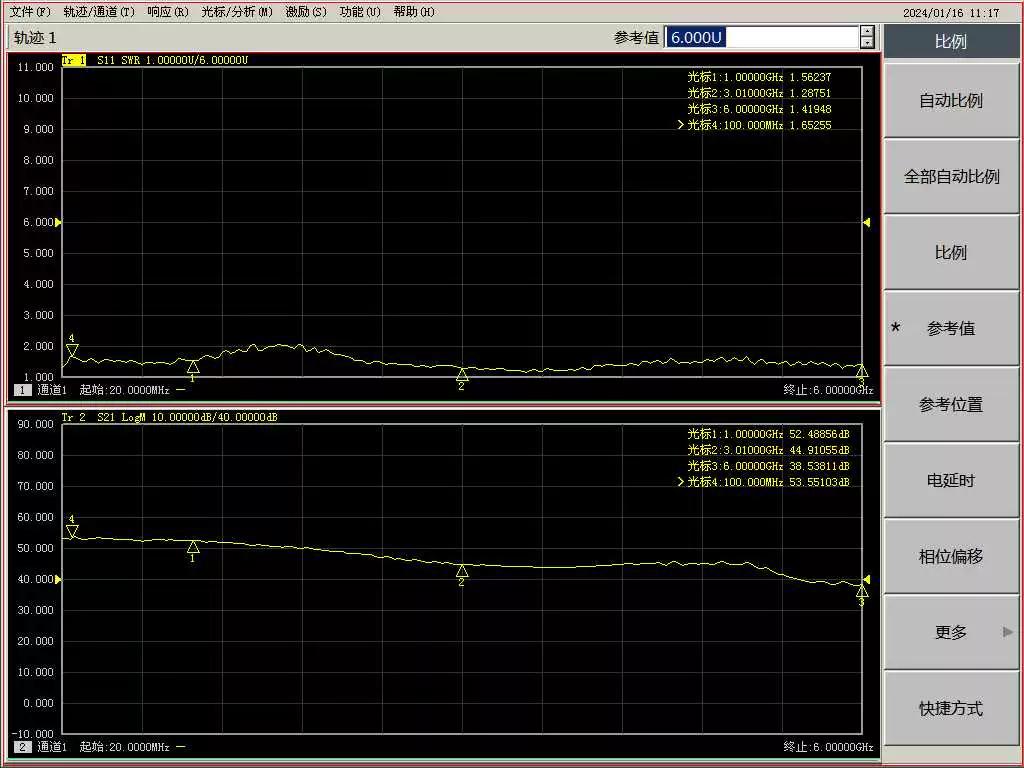

- Module frequency range: 10MHz - 6GHz
- NF: 5dB
- Gain: 50dB

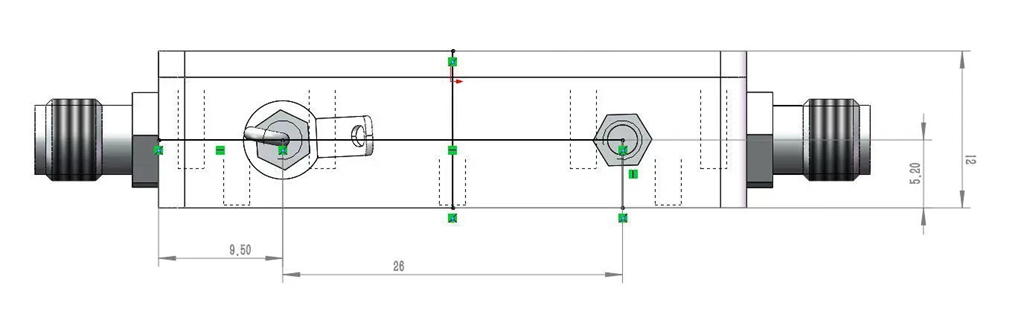

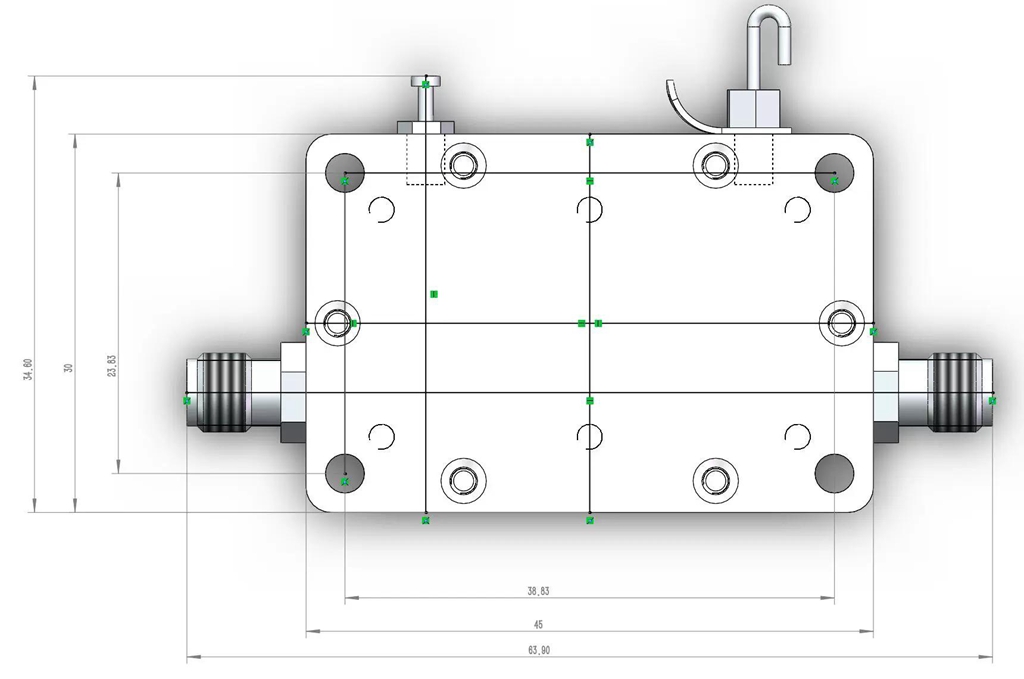

- Size: 4.5 x 3 x 1.4cm (excluding the SMA connector length)
- Weight: 66g
- Current: < 220mA
- P1dB = 18dBm at 2GHz, maximum input signal amplitude -35dBm, maximum output power < 100mW.
- Output connector: SMA female connector
- Input and output impedance: 50ohms
Packaging Included:
- 1 x Low Noise Amplifier
