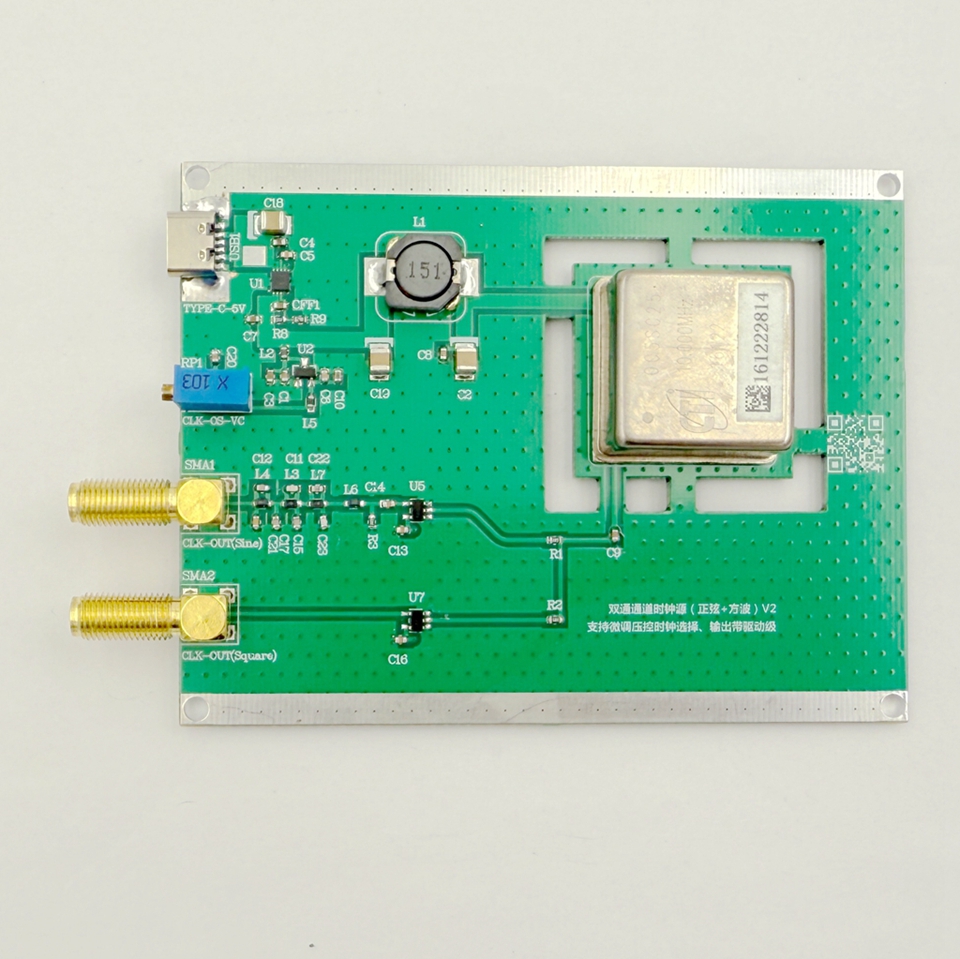

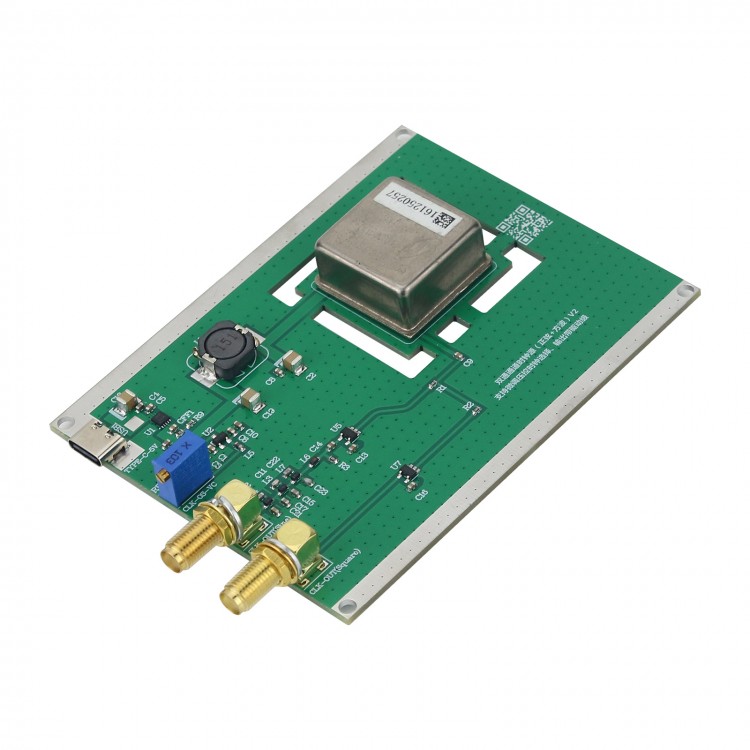

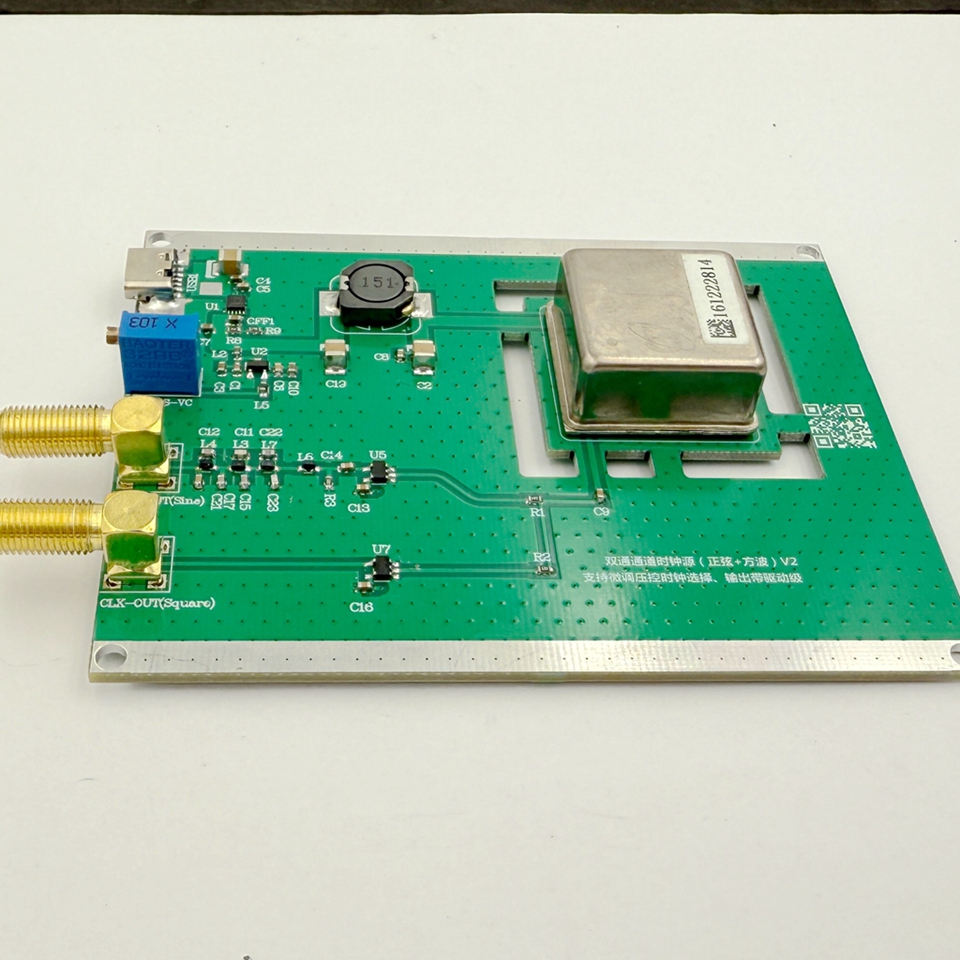

10MHz Sinewave Output OCXO Board Frequency Standard Constant Temperature Crystal Oscillator with Type-C Cable for DIY
Features:

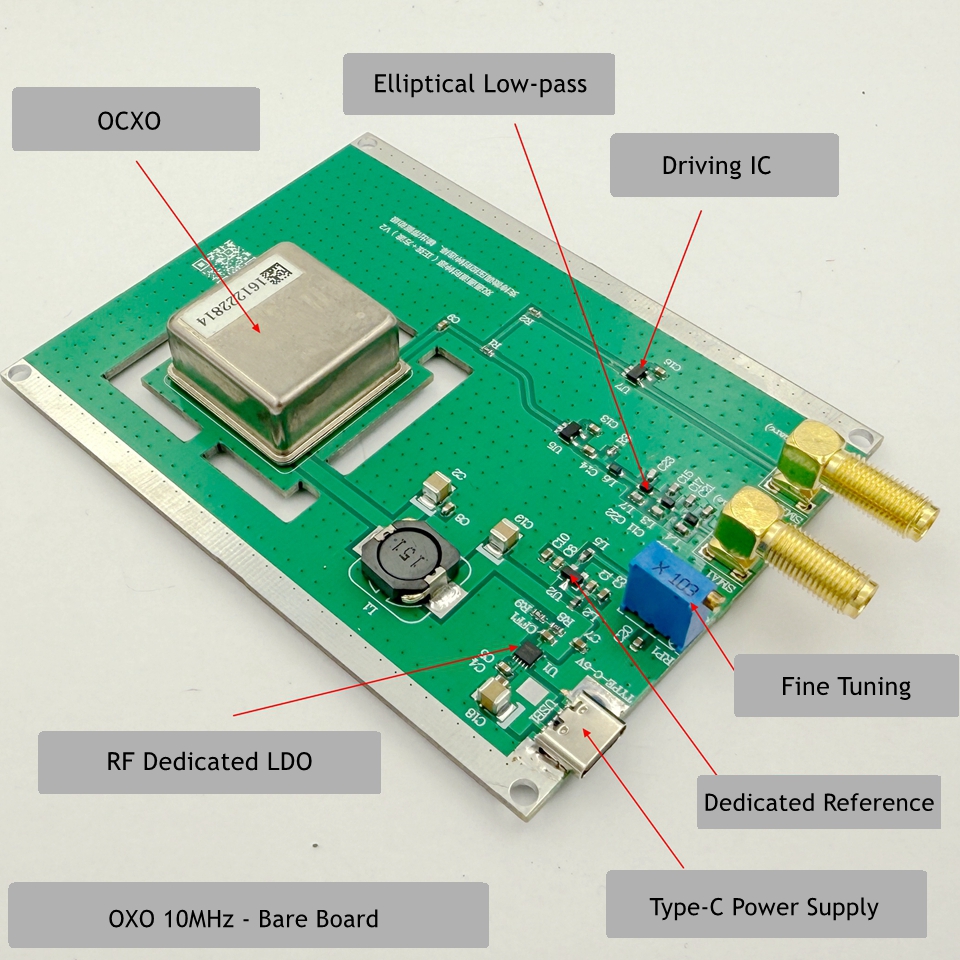

- Powered by TYPE-C and providing RF specific LDO power supply, the constant temperature crystal oscillator is more stable.
- The voltage controlled clock control port provides high-precision voltage reference and higher frequency stability.

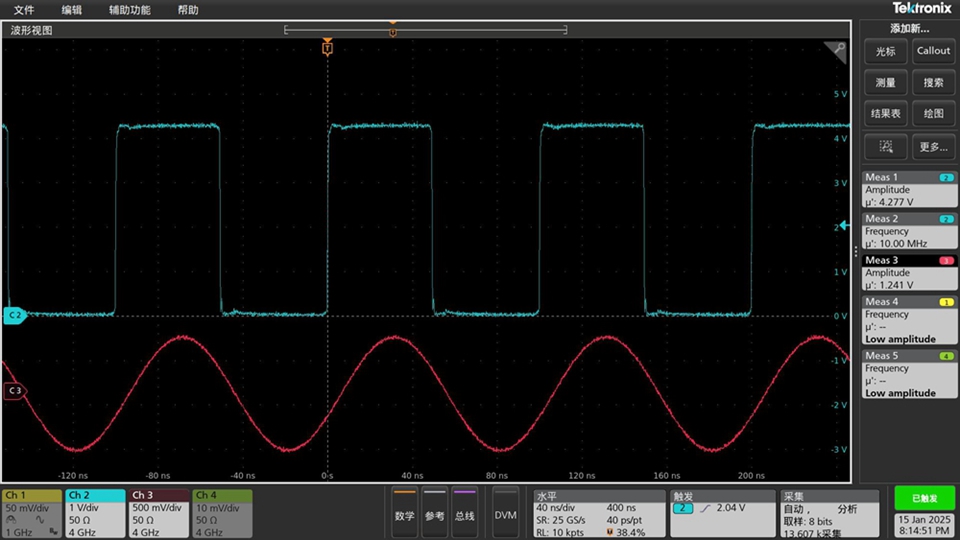

- Output with sine wave (7th order elliptical low-pass filter) and square wave output, providing a driver IC that can drive a 50 ohm load.
Specification:
- Product name: 10MHz OCXO frequency standard
- Model: OCXO-10M-2525
- Square wave output: 10MHz/13DBM
- Sinewave output: 10MHz/3DBM (1VPP)
Package Included:
- 1 x OCXO Board
- 1 x Type-C Cable
