Feastures:
- Portable and rugged, easy to use
- 2.5mm universal connector
- Operates either in CW or Pulsed
- Constant output power
- Lower Battery warning
- Laser case ground design prevents ESD damage
- Long battery life (up to 60 hours)
- Crash-proof and dust-proof design for laser head
Specifications:

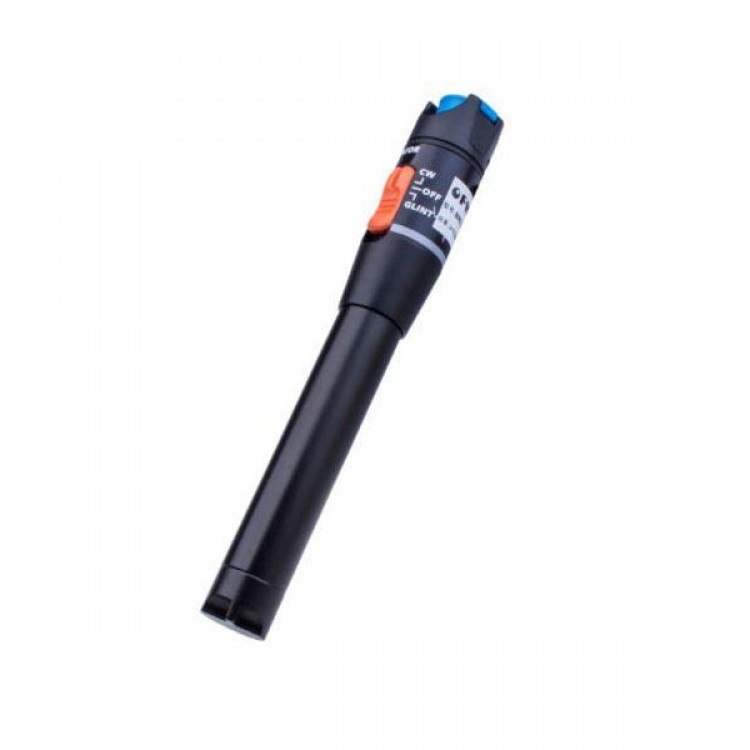

- Type :Pen-type Visual Fault Finder
- Central Wavelength:650nm+-10nm (635nm can be required on request)
- Emitter Type;FP-LD
- Output Power:1mW
- Optical Connector:2.5mm universal connector for test different ST, SC, FC interferes
- Operating Model:Both CW and Pulse available
- Pulse Frequency:2~3Hz
- Power Supply: 2 AAalkaline batteries(not included as shipping reason)
- Battery Operating Time:650nm 1mw >65hour 650nm 3mw>50hour 650nm 10mw>15hour //Test with Panasonic LR6AAALKALINE battery
- Operating Temperature:-10~+45 (oC)
- Storage Temperature:-40~+70 (oC)
- Dimension (mm):15X180
- Weight:210g(Without battery)
