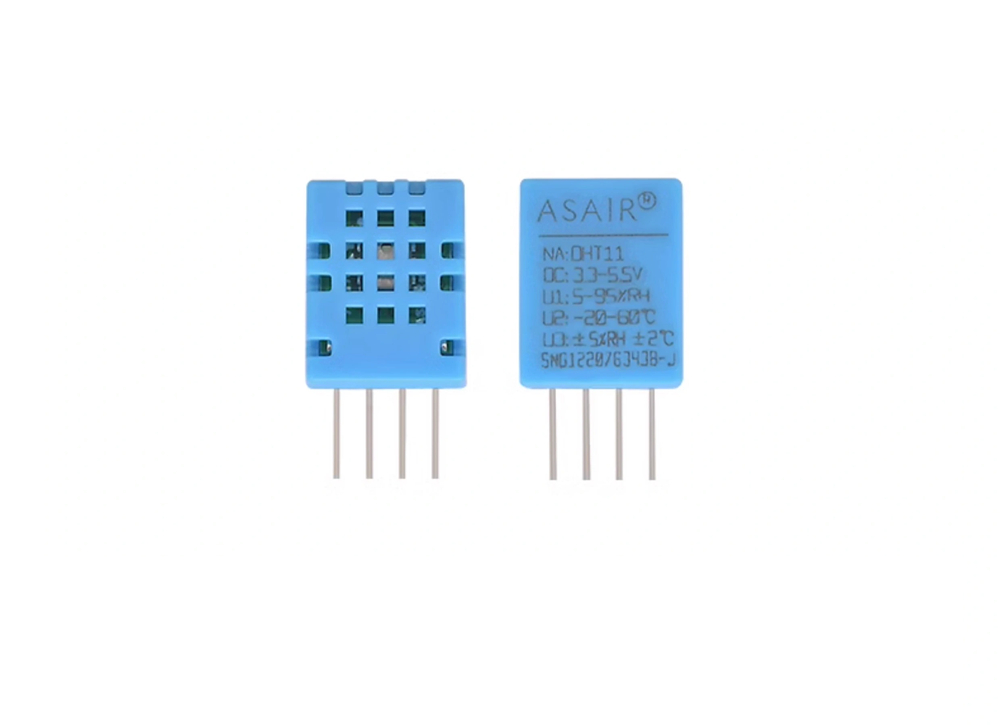

10pcs ASAIR DHT11 Temperature Humidity Sensor Modules for -20℃ to +60℃ 5~95%RH 1-wire Digital Output

10pcs ASAIR DHT11 Temperature Humidity Sensor Modules for -20℃ to +60℃ 5~95%RH 1-wire Digital Output

Description:
DHT11 is a temperature and humidity sensor with a calibrated digital signal output. It uses self-developed integrated digital temperature and humidity elements. It uses a dedicated digital module acquisition technology and temperature and humidity sensing technology to ensure high reliability and excellent long-term stability.

The sensor module contains a temperature and humidity measuring sensor and a high-performance MCU.

The temperature humidity sensor can be used in agriculture, home appliances, automobiles, meteorology, medical and other fields. It can be used in HVAC, dehumidifiers, cold chain storage, testing and inspection equipment, data recorders and humidity conditioning systems.

Features:
- Long-term stability

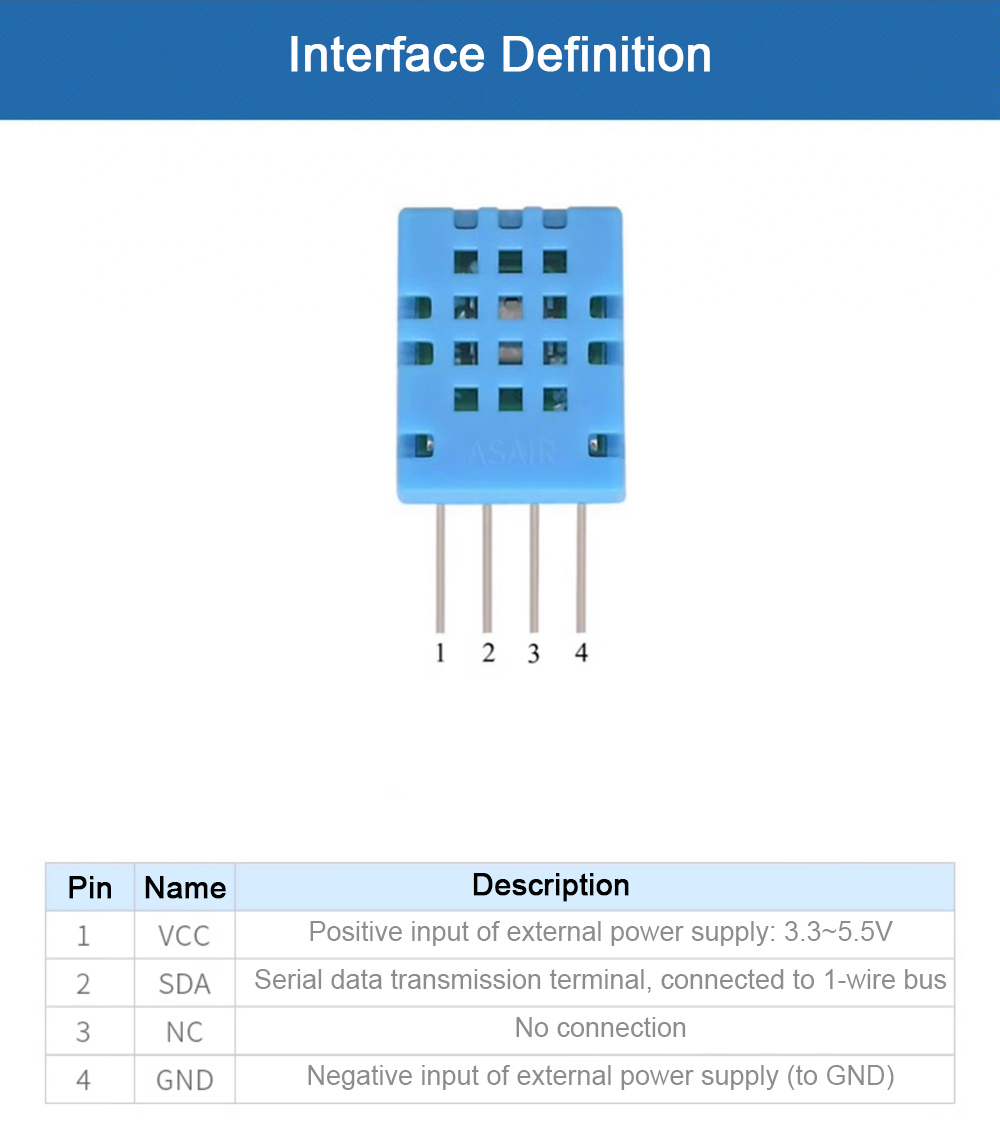

- Digital signal output and 1-wire bus communication
- Fully calibrated
- Fast response, fast recovery time, and strong anti-interference ability
- Excellent impact resistance and electrical properties
- Measuring range: 5~95%RH, -20°C to 60°C
- Accuracy: ±5%RH, ±2°C
- Repeatability: ±1% RH, ±1°C
- Power supply voltage: 3.3~5.5V
- Average current: 60μA (sleeping), 1000μA (measuring)
- Sampling period: 2s

Specifications:
- Model number: DHT11
- Power supply voltage: 3.3~5.5V
- Average current: 60μA (sleep), 1000μA (measuring)
- Low-level output voltage: 0~300mV
- High-level output voltage: 0.9*VCC~VCC V
- Low-level input voltage: 0~0.3V
- High-level input voltage: 0.7~VCC V
- Pull-up resistor: 1~100kΩ
- Sampling period: 2s
- Measuring range: 5~95%RH, -20 to 60°C
- Accuracy: ±5%RH, ±2°C
- Repeatability: ±1% RH, ±1°C
- Response time: <6s (humidity), 5~30s (temperature)
- Hysteresis: ±0.3% RH, ± 0.3°C
- Drift: <0.5%RH/yr, <0.5°C/yr

Package Included:
- 10 x Temperature humidity sensor modules

Packaging Details:
- Weight: 0.25kg
