10pcs/set Fiber Optic FTTH Tool Kit FC-6S Fiber Cleaver Optical Power Meter VFL

10pcs/set Fiber Optic FTTH Tool Kit FC-6S Fiber Cleaver Optical Power Meter VFL

Description:

Note: since the international air does not allow the hair contains flammable and explosive goods, so the unity does not contain the battery delivery, thank you for understanding!


CFS-2 Fiber stripper

- 250 m coated layer of 125 m fiber with A.
- Opening the top of the B. 1.98mm can be used for stripping fiber outer sheath
- The open hole of the type V and 140 m on the edge of the
- Clamp can be used to strip the 250 m layer of 125 m fiber.
- Jaw factory has been adjusted, shall not be adjusted
- Will not damage the fiber
- All the cutting cross section has precise mechanical tolerances to ensure a clean and smooth operation.
- According to the handle ergonomic design, comfort grip
- Does not use the knife, locked in a closed state
- Length: 165mm
- weight: 0.15Kg

Fiber Cleaver FC-6S
- high quality fiber cutting knife (recommended for FTTH cold welding, hot melt connection is not recommended for the use of this paragraph).
- Simple operation
- Single core fiber for single mode or multimode cutting
- 12 cutting end face
- Blade long life
- Adjust the peeling length is: 5~20mm
- Technical specifications: fiber size: 125um
- Skin diameter: 250~900um.

Wire Stripper

- The use of temperature is -20 ° C ~ 50 °C
- Factory pre-set, no need to adjust this stripper again to prevent fiber scratch; cutting blade precision positioning, quenching and tempering treatment, anti-rust primer.
- If not use, set the blade lock in the closed state.
- For stripping 250 micron buffer coating to expose 125 micron cladded fiber
- Second hole for stripping 2-3mm fiber jackets
-140 μm diameter hole and V-opening in blade allows removal of 250 micron buffer coating from 125 micron fiber
-   Pre-set at the factory - no adjustments needed
- Will not scratch or nick glass fiber
- All stripping surfaces are manufactured to precise tolerances to assure clean, smooth strips
- Comfort-grip, ergonomic handles

Optical Power Meter

- Fiber CATV engineering, optical fiber communication engineering, integrated wiring system, optical device production and research, optical communication teaching and testing, other fiber optic engineering, etc.. The new user self calibration function, the use of universal battery 5 (Note: product delivery time is not battery), linear (mW) and nonlinear (dBm) indicators also show that the unique common interface design, FC/SC/ST and other interface, no complex conversion, optional automatic shutdown function, optional switch backlight display. To measure the absolute power of the light at 7 wavelengths, such as 850/980/1300/1310/1490/1550/1625nm. Test range: -70dBm~+10dBm.The distribution of SC and FC round square mouth adapter each 1, fixed fiber interface can be used to better make the test more accurate and firm.

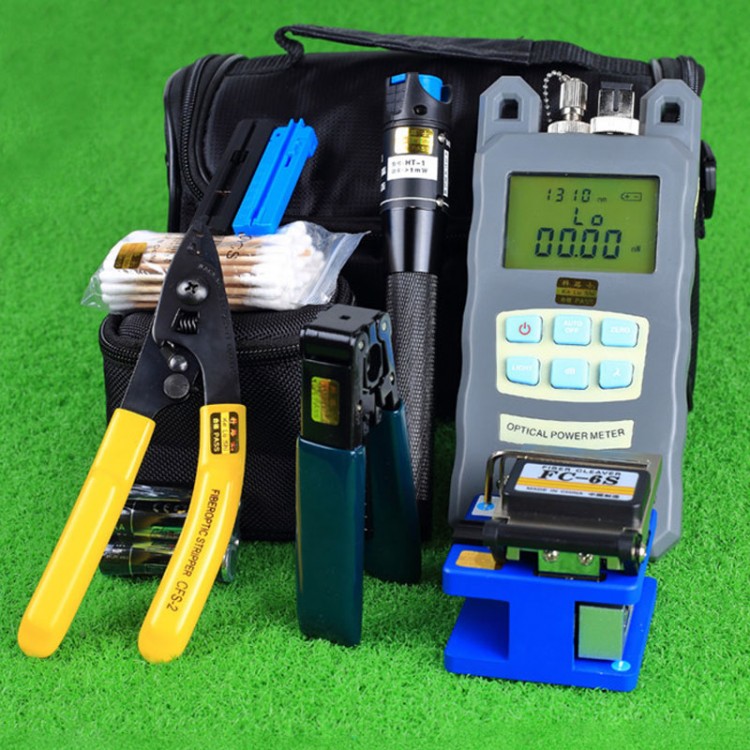

Package Include:

- 1 x Fiber Cleaver FC-6S
- 1 x Optical Power Meter (-70~+10 dbm)
- 1 x 5KM Visual Fault Locator
- 1 x FC Adapter
- 1 x SC Adapter
- 1 x Fiber Cable Stripper YW-8FS
- 1 x Fiber Optic Stripper/Model: CFS-2
- 1 x Fixed length rail
- 2 x Folding type hex key
- 2 x Ceramic Tube
- 1 x Small Plastic Box
- 1 x Clean Paper
1 x Alcohol Bottle
1 x Black Small Bag of Optical Power Meter
1 x Black Small Bag of Visual Fault Locator
1 x Black Small Bag of Fiber Cleaver
1 x Toolkit (35*11*26cm)
