10uW-100mW Optical Power Meter Photoelectric Type Laser Power Meter Comes with Digital Display

10uW-100mW Optical Power Meter Photoelectric Type Laser Power Meter Comes with Digital Display

Features:
- Photoelectric laser power meter
- Range: 10uW~100mW. The highest power density of the measured laser is 3W/cm²
- The diameter of the photosensitive surface of the probe: 10mm/0.4"
- Wavelength response range: 400nm~1000nm
- Fast response speed and 5 updates per second
- Digital display: The power can be sampled and counted at a certain time. The sampling interval is adjustable and the number of sampling points is adjustable. After the acquisition is completed, the average power, the maximum and minimum power, and the root mean square difference can be calculated. Users can add an attenuator in front of the probe and make a power value correction in the relevant part of the display by themselves. Because it is a photo-release electric probe, the voltage power calibration coefficient is different for different wavelengths, and customers can calibrate different wavelengths (every 10nm) by themselves.
- The display can be connected to a computer via USB (i.e. Mini-B type connector). The laser power is monitored for a long time (unlimited duration) by computer software and automatically recorded to a hard disk file.
- Product dimensions: Probe: 4cm x 4cm x 2.5cm/1.6" x 1.6" x 1". Display: 12cm x 8cm x 3cm/4.7" x 3.1" x 1.2".
- Purpose: It is suitable for continuous and quasi-continuous wave lasers with relatively fixed measurement wavelengths and ultra-fast pulsed lasers. Users can also monitor the power fluctuation and stability of the high-power laser through a beam splitter.

Package Included:

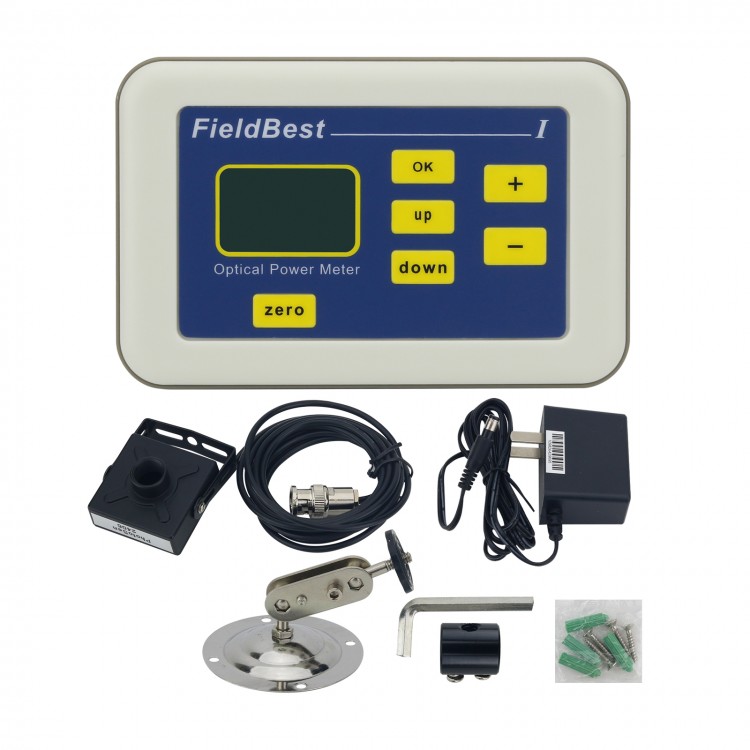

- 1 x Set of optical power meter

Packaging Details:
- G.W.: 0.95kg
