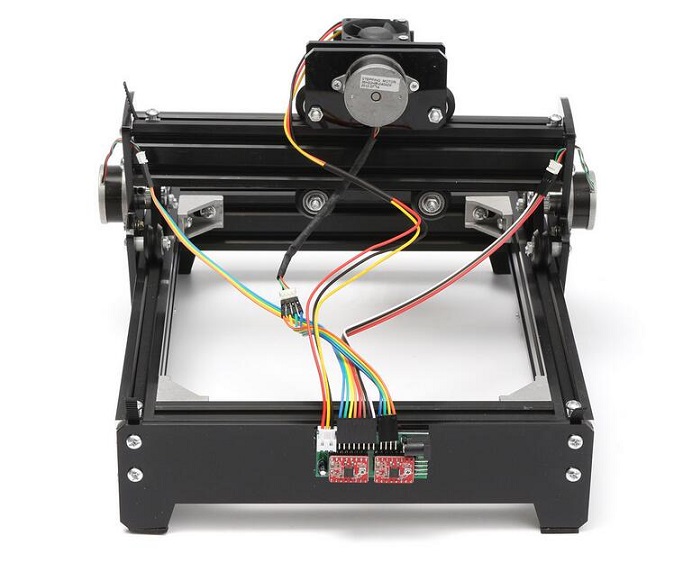

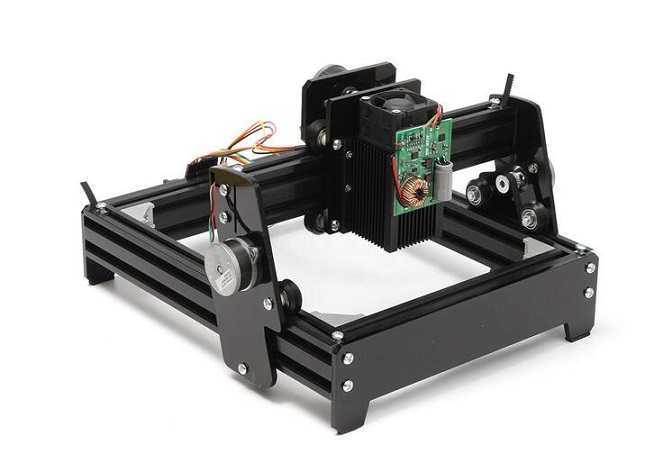

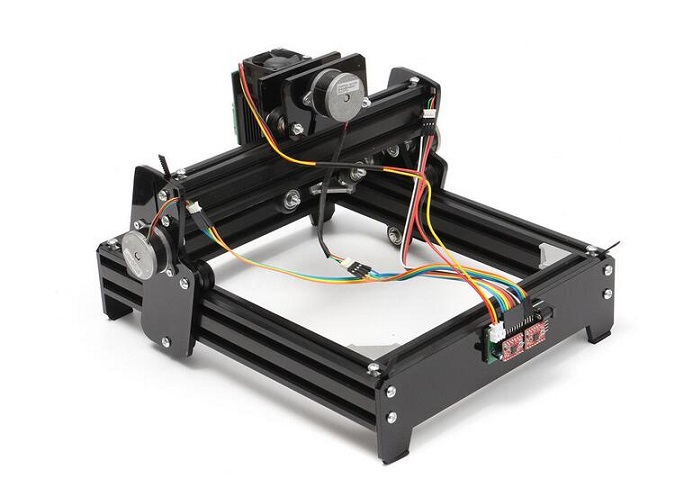

Product Description: Upgrade version of the new model of laser tube,V-type black aluminum,V-type dual-bearing pulley,to increase thicker heat aluminum,thicker fan,copper core,the most important is the new laser tube power are the same,Beam quality is better,the lines will be more black and thin.

Specifications:
- Model: ac140m
- Material: Aluminum Alloy + acrylic
- Drive system: stepper motor(step accuracy: 0.00625mm)
- Max. Engraving Area:14x20cm
- Engraving speed: 0.02-0.2 seconds/pixel
- Laser power: 10W(100ns duty 10W 50%) average 6-6.5W
- No limit on object's size,the machine can be set and worked on the object,eg.
- Interface: USB

Functions:
- Software 255 adjustable laser power,low-light positioning,positioning freedom,gray,shortest path algorithm
- Power supply: input AC 100V-240V,47Hz-66Hz
- Power adapter:DC 12V 4A
- Machine Dimensions: 28x32x23cm
- Machine weight: 2.4KG
- Software:Our ac master software,support Chinese,English,Russian languages.Simple & easy to use.
- Support Windows 7/8/10
- Super-reduced instruction,1 byte of instruction accounted for more than 40%
- The explanation rate is 30 times faster than Arduino+grbl,and instantly be able to complete the task of
interpretation active instruction;shortest path algorithm can shorten the time.
- Carving materials: stainless steel,iron,aluminum,ceramics,stone,wood,bamboo,leather,plastics,etc.

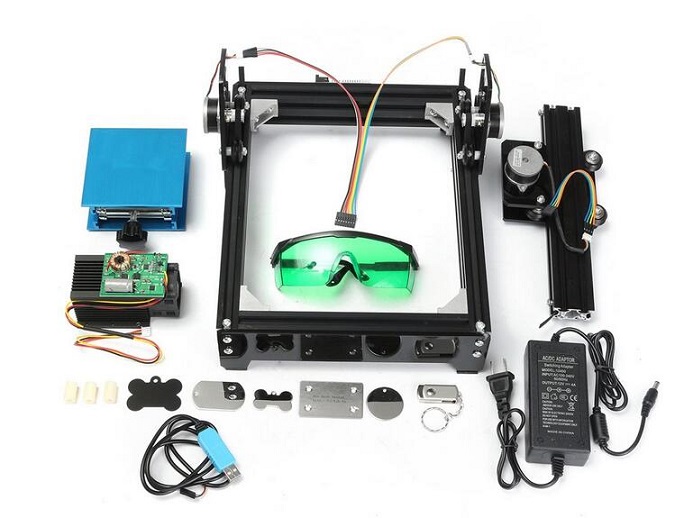

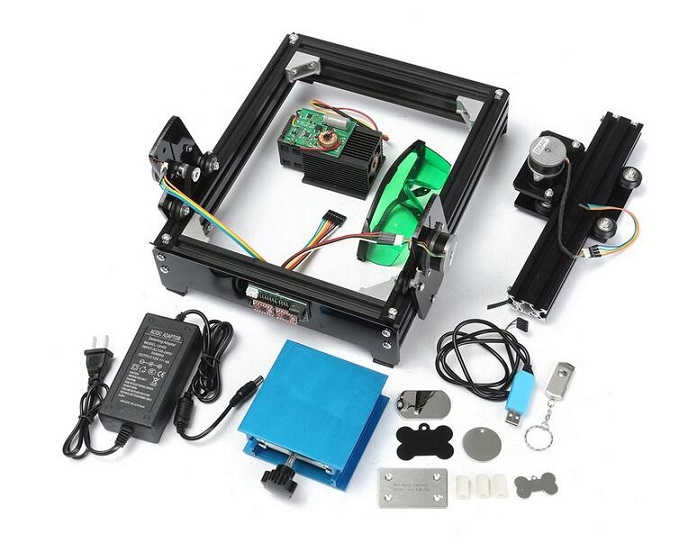

Package List:
- 1 x Engraving machine

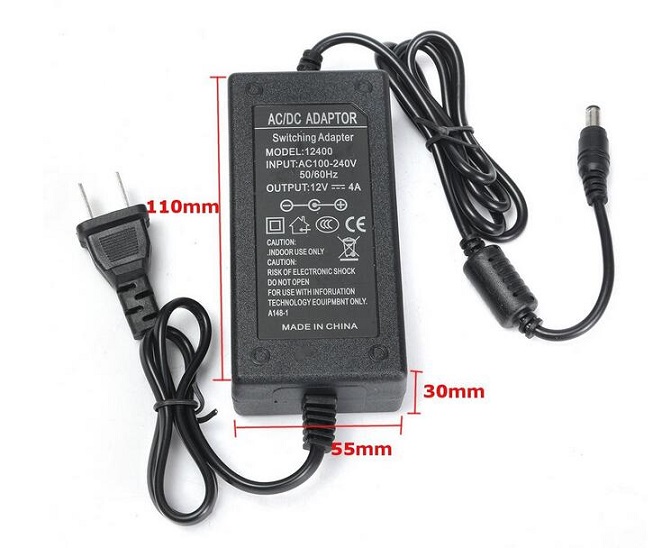

- 1 x AC power adapter（According to the delivery countries distribute adapter.）

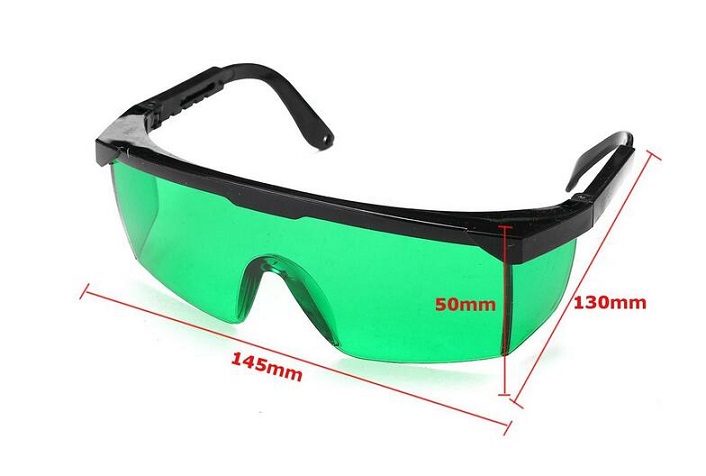

- 1 x Laser protective glasses

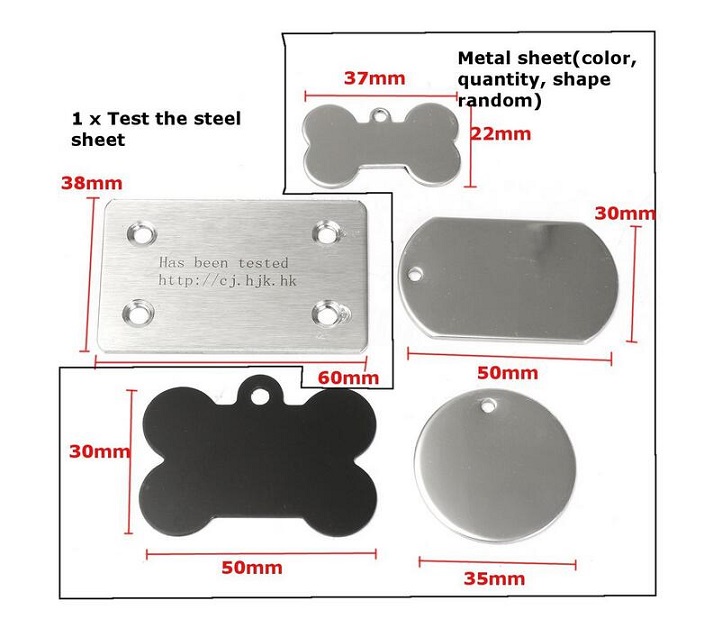

- 1 x Test the steel sheet
- 1 x Metal sheet(color,quantity,shape random)

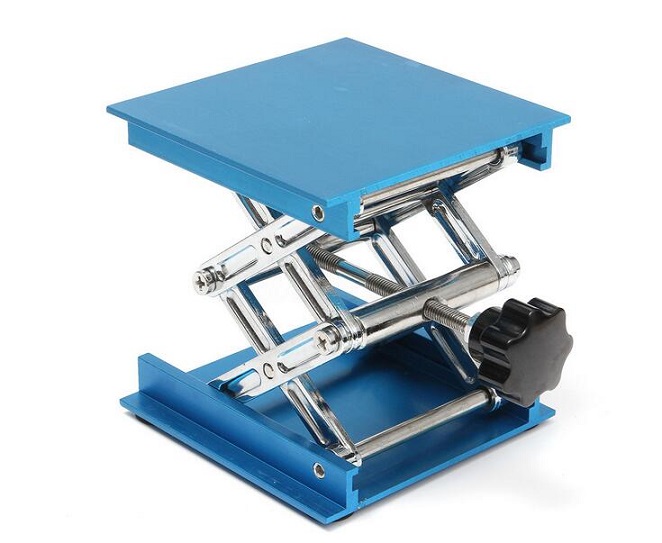

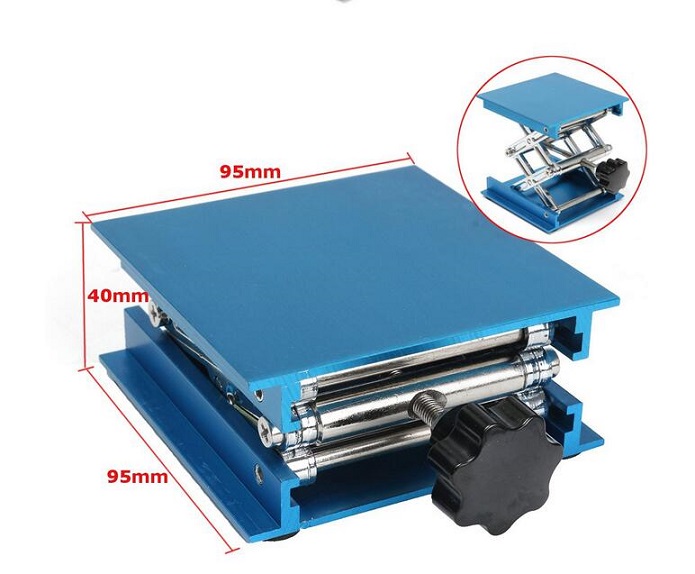

- 1 x Lifting platform
- 1 x USB cable

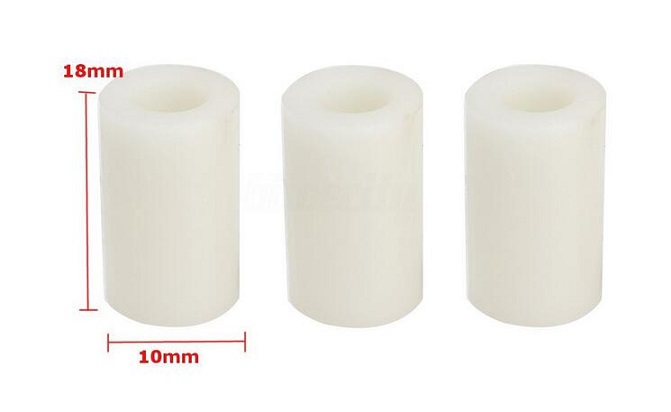

- 3 x Focusing columns

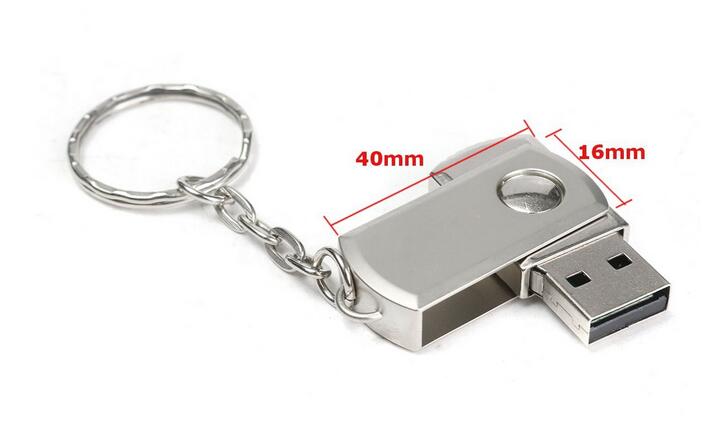

- 1 x U- Disk(Contain Software)
