Features:
- Comprehensive reference to the international radiator-type cooling system;
- Small thermolysis water cooler;
- With completed water flow and over high temperature alarm functions;
- Enclosed water tanks;
- Professional forced air-cooled radiator;
- Equipped with alarm output port.
- Multiple power specifications;CE approval;RoHS approval.
Advantages:

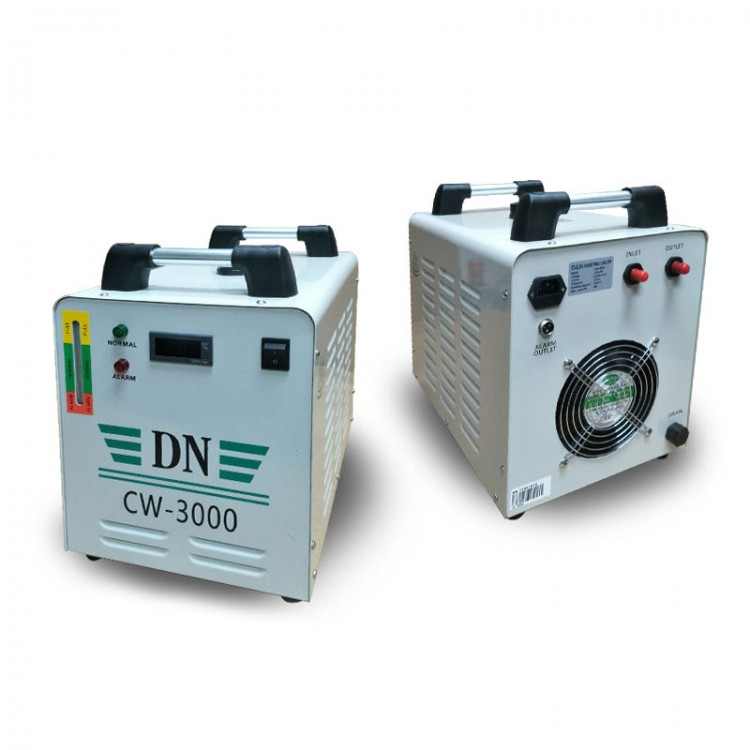

- CW-3000 laser water chiller is suitable for small water cooling device;
- Provide stable working conditions for laser devices;
- Water can be used for a long time;
- High heat dissipating capacity and not easy to be blocked;
- Alarm output port can quickly protect sensitive components.
- Used for cooling the one CO2 glass laser tube under 60W of the laser engraving and cutting machine.
Benefit:
- Specific disconnection alarm securing protection;
- High cost performance,low failure rate;
- Cool Capacity is 50W/℃;
- Forces circulation,8L cooling tank capacity;
- It can extend the using life of laser tube and ensure the engraving effect better.
Installation:
Industrial cooling machine's installation is very simple,the new machine for the first time using,
you can install it as following steps.
A.Open the package and check the machine and all accessories.
B.Open the mouth screw on the top of machine,add cooling water (Please don't power the machine without water).
C.Connect the inlet and outlet hose between water cooler and laser engraving machine.
D.Connect the power cable, turn the power switch (Note: Don't let the water overflow).
E.Check the radiator water level again (Keep the distance between water level and mouth is 80-150mm).
Maintenance
Cooling machine used in long term,you should open the machine and clean the dust in order to ensure
good heat dissipation.
You can use non:corrosive antifreeze if you are in the northern cold regions.
Parameter:
- Model: CW-3000AG
- Voltage: 220V/110V,optional.
- Frequence: 50HZ
- Working current: 0.3~0.5A
- Cooling: 50W/℃
- Capacity: 8L
- Max .Lift: 8M
- Max.Flow: 10L/Min
- N.W: 10kg
- G.W: 12kg
- Protection: Flow Alarm
- Package: Carton Box
- Way Of Circulation: Water Pump Forces Circulation
- Inlet And Outlet Hold: Outside Dimensions 10mm Brass Connector
- Dimensions: 47x37x27cm(LxWxH)
