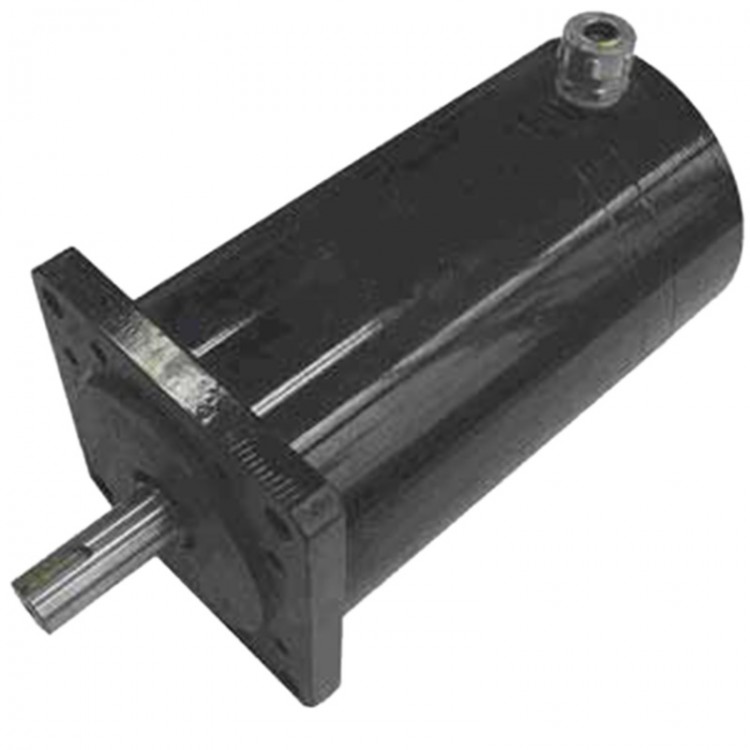

1103RB175-503 1.2 Degree 5A 12N.m 3-Phase Hybrid Stepping Motor for CNC
Parameters:
- Step angle: 1.2 degree
- Motor length: 175mm
- Current: 5A
- Holding torque: 12N.m
- Rotor inertia g·cm²: 8400
- Weight: 9.5kg
Torque testing data(Reference):
Driving voltage: AC220V, Driver: 1000step/r
- 30 r/min: 12.1N.m
- 100 r/min:12.0N.m
- 200 r/min: 11.7N.m
- 300 r/min: 10.8N.m
- 600 r/min: 7.2N.m
- 900 r/min: 4.5N.m
- 1500 r/min: 3.6N.m
- 2000 r/min: 0.7N.m
Package included:
- 1 x Stepping Motor
